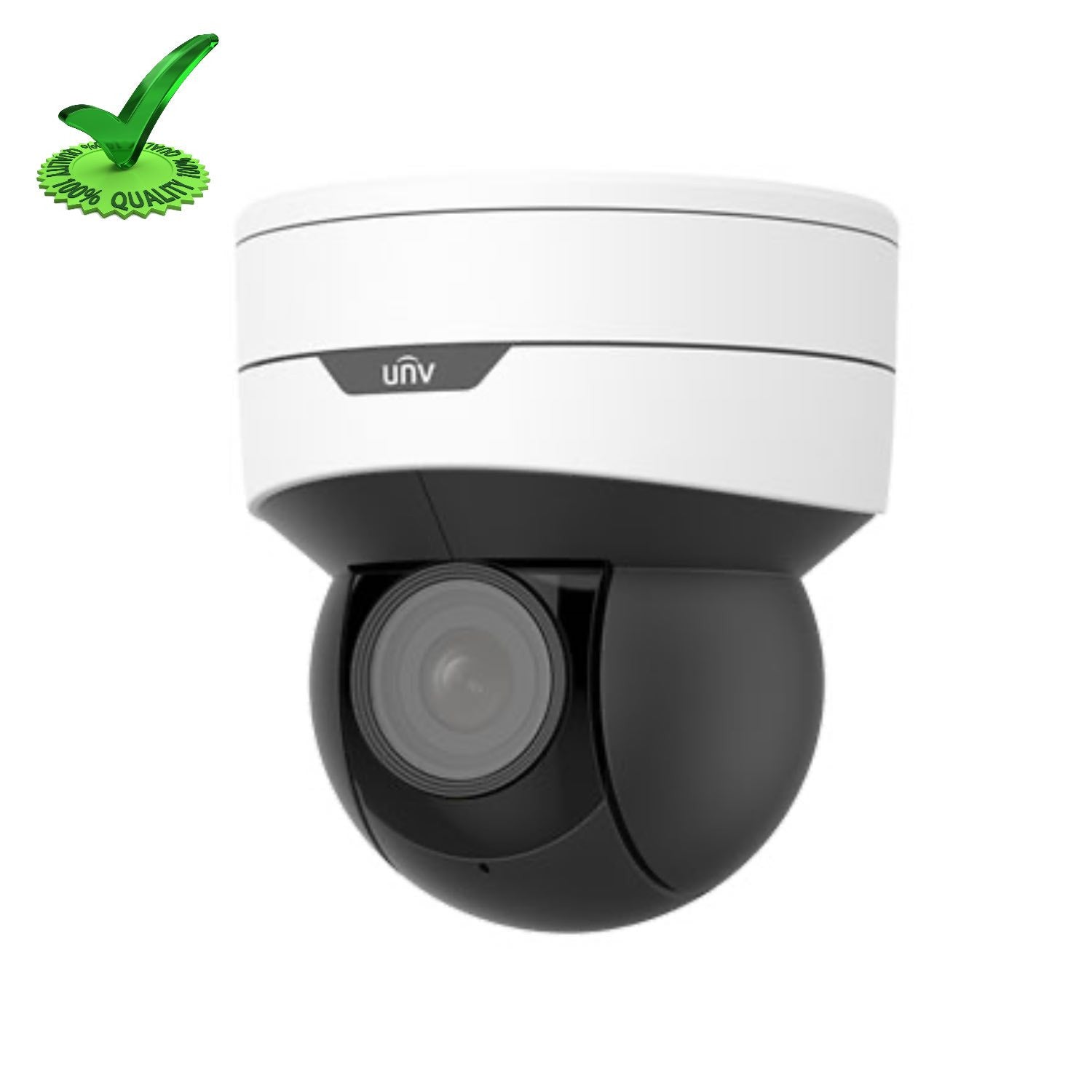

Uniview IPC6412LR-X5UPW-VG 2MP Indoor IP PTZ Network Dome Camera

Specification

Camera

• Sensor : 1/2.7", 2.0 megapixel, progressive scan, CMOS
• Min. Illumination : Colour:0.003 lux (F1.2, AGC ON) 0 lux with IR
• Day/Night : IR-cut filter with auto switch (ICR)
• Shutter : Auto/Manual, 1 ~ 1/100000s
• WDR : 120dB
• S/N : ＞52dB

Lens

• Lens type : 2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens
• Iris : Auto aperture
• Angle of View (H) : 30.6°~106.9°
• Angle of View (V) : 17.7°~56.0°
• Angle of View (O) : 37.6°~139.0°

Illuminator

• IR Range : Up to 30m (98 ft) IR range
• Wavelength : 850nm
• IR On/Off Control : Auto/Manual

Video

• Video Compression : Ultra 265, H.265, H.264, MJPEG
• Frame Rate : Main Stream: 2MP (1920*1080),Max 30fps;  Sub Stream: 720P (1280*720), Max 30fps;  Third Stream: D1 (720*576), Max 30fps
• Video Bit Rate : 128 Kbps~16 Mbps
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.265 Type : Main Profile
• U-code : Support
• ROI : Up to 8 areas
• Video stream : Triple streams
• OSD : Up to 8 OSDs
• Privacy Mask : 24 areas, up to 4 blacks in the same picture


• White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction : 2D/3D DNR
• Smart IR : Support
• Flip : Normal/Flip Vertical/Flip Horizontal/180°
• HLC : Support
• BLC : Support
• Defog : Digital Defog

Events

• General Function : Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User  Authentication

Audio

• Audio Compression : G.711U, G.711A
• Audio Bitrate : 64 Kbps
• Two-way Audio : Support
• Suppression : Support
• Sampling Rate : 8KHZ

Storage

• Edge Storage : Micro SD, up to 256 GB
• Network Storage : ANR,NAS(NFS)

Network

• Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x,  SNMP, QoS, RTMP, SSL/TLS
• Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host : Up to 32 users. 2 user levels: administrator and common user
• Security : Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for  HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client : EZStation EZLive Ezview
• Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Pan & Tilt

• Pan Range : 350°
• Pan Speed : 0.1°/s ~ 60°/s
• Preset speed : 60°/s
• Tilt Range : 0° ~ 90°
• Tilt Speed : 0.1° ~ 50°/s
• Preset speed : 50°/s
• Number of Presets : 1024
• Patrol : Preset patrol
• Preset Image Freeze : N/A
• Home Position : Support

Interface

• Audio I/O : N/A
• Alarm I/O : 1/1
• Serial Port : 1 RS485
• Built-in Mic : Support
• Built-in Speaker : Support
• WIFI : Support（IEEE802.11b/g/n）
• Network : 1 * RJ45 10M/100M Base-TX Ethernet
• Video output : N/A

Certification

• EMC : FCC Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013
• Safety : IEC 62368-1 EN 62368-1 UL 60950-1
• Environment : CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
• Protection : N/A

General

• Power : DC12V(±25%), PoE(IEEE 802.3at)
• Power consumption : Max 15W
• Power Interface : Ø 5.5mm coaxial power plug
• Dimensions (Ø x H) : Φ129 x 143.6mm (Φ5.1’’ x 5.7’’)
• Weight : 0.76kg(1.67lb)
• Working Environment : -10℃~50℃(14°F ~ 122°F)，Humidity: ≤95% RH (non-condensing)
• Storage Environment : -40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)
• Surge protection : 2KV
• Vandal Resistant : N/A
• Ingress Protection : N/A
• Reset Button : Support

Extra Information

• SKU: IPC6412LRX5UPWVG
• Warranty: 2 Years
• Brand: Uniview
• Megapixel: 2
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
