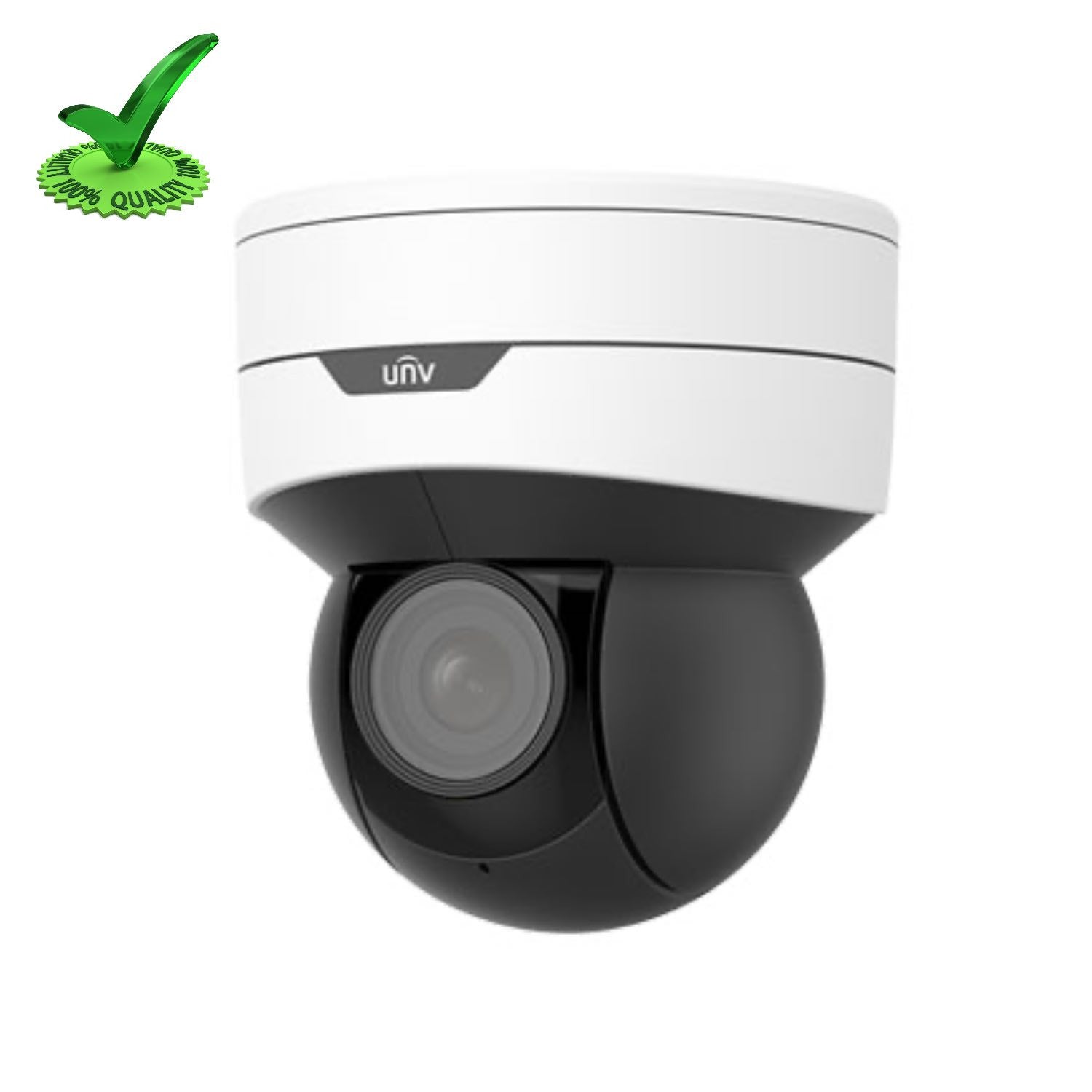

Uniview IPC6412LR-X5P 2MP IP IR Network Dome Camera

Specification

Camera

• Sensor : 1/2.9" progressive scan, 2.0 megapixel, CMOS
• Lens : 2.7~13.5mm，AF automatic focusing and motorized zoom lens
• Angle of View (H) : 29.1°~104.3°
• Angle of View (V) : 16°~55.1°
• Angle of View (O) : 34.5°~142.9°
• Shutter : Auto/Manual, shutter time: 1 s ~ 1/100000 s
• Minimum Illumination : Colour: 0.03 lux (F1.2,AGC ON) 0 lux with IR
• Iris : F1.2
• Day/Night : IR-cut filter with auto switch (ICR)
• Digital noise reduction : 2D/3D DNR
• S/N : >52 dB
• IR Range : UP to 30m (98ft)
• WDR : DWDR

Video

• Video Compression : Ultra 265,H.265, H.264, MJPEG
• H.264 code profile : Baseline profile, Main Profile
• Frame Rate : Main Stream:1080P (1920×1080):Max. 30 fps; Sub Stream:720P (1920×1080):Max. 30 fps; Third Stream: CIF (352×288): Max. 30 fps
• HLC : Supported
• BLC : Supported
• OSD : Up to 4 OSDs
• Privacy Mask : Up to 4 areas
• ROI : Up to 2 areas
• Motion Detection : Up to 4 areas

Storage

• Edge Storage : Micro SD, up to 256 GB
• Network Storage : ANR

Network

• Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
• Compatible Integration : ONVIF(Profile S, Profile G), API

Pan & Tilt

• Pan Range : 0° ~ 350°
• Pan Speed : 0.1°/s ~ 60°/s
• Preset speed: 60°/s
• Tilt Range : 0° ~ 90°
• Tilt Speed : 0.1° ~ 50°/s
• Preset speed: 50°/s
• Number of Presets : 1024
• Home Position : Supported

Interface

• Network : 1 RJ45 10M/100M Base-TX Ethernet
• Built-in Mic : Supported

General

• Power : DC 12V±25%, PoE (IEEE802.3 af)
• Power consumption: Max 12W
• Dimensions (Ø x H) : Φ129mm×143mm(Φ5.07” x5.63”)
• Weight : 0.75kg(1.65lb)
• Working Environment : –10°C ~ +50°C (14°F ~ 122°F), Humidity:≤95% RH(non-condensing)
• Reset Button : Supported

Extra Information

• SKU: IPC6412LRX5P
• Warranty: 2 Years
• Brand: Uniview
• Megapixel: 2
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
