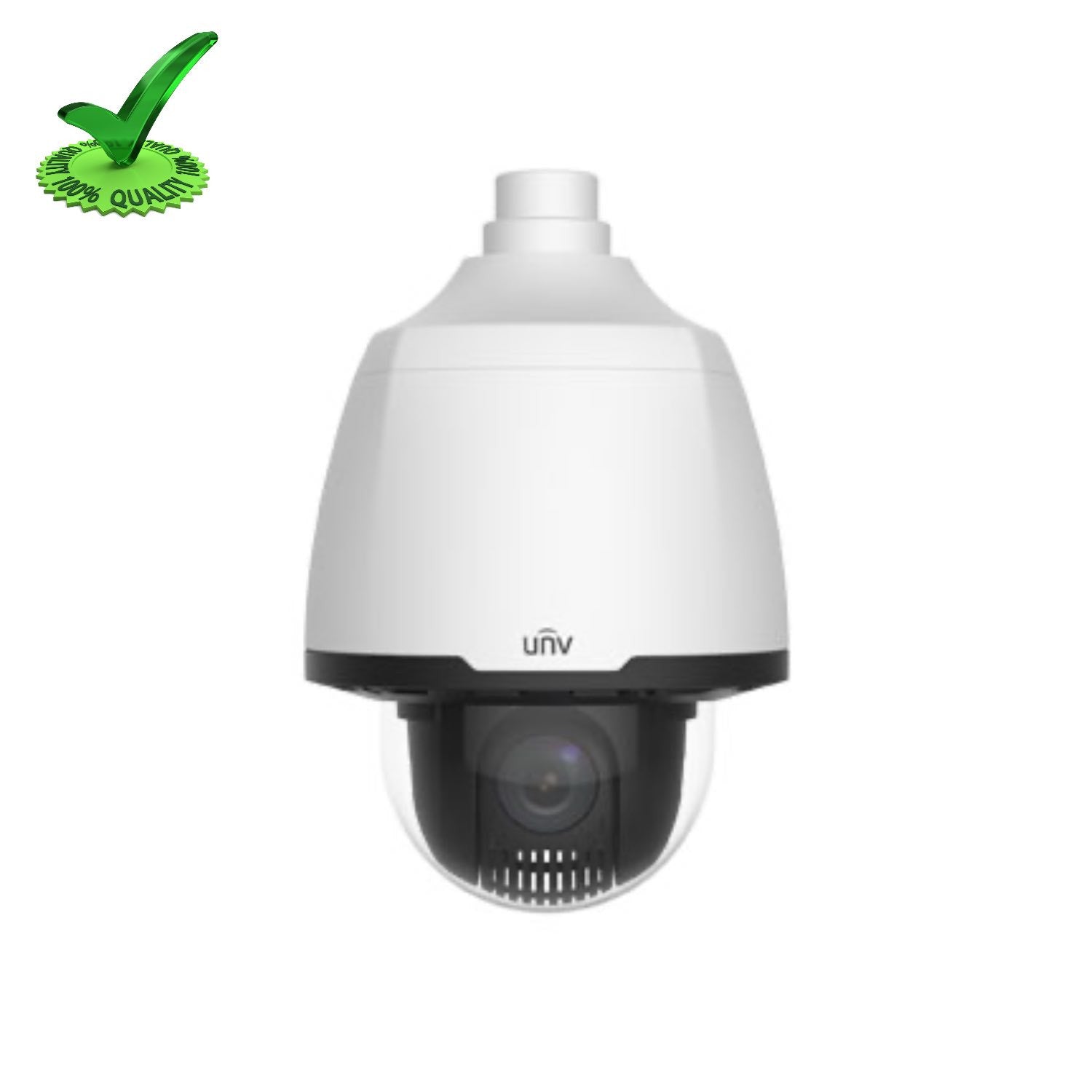

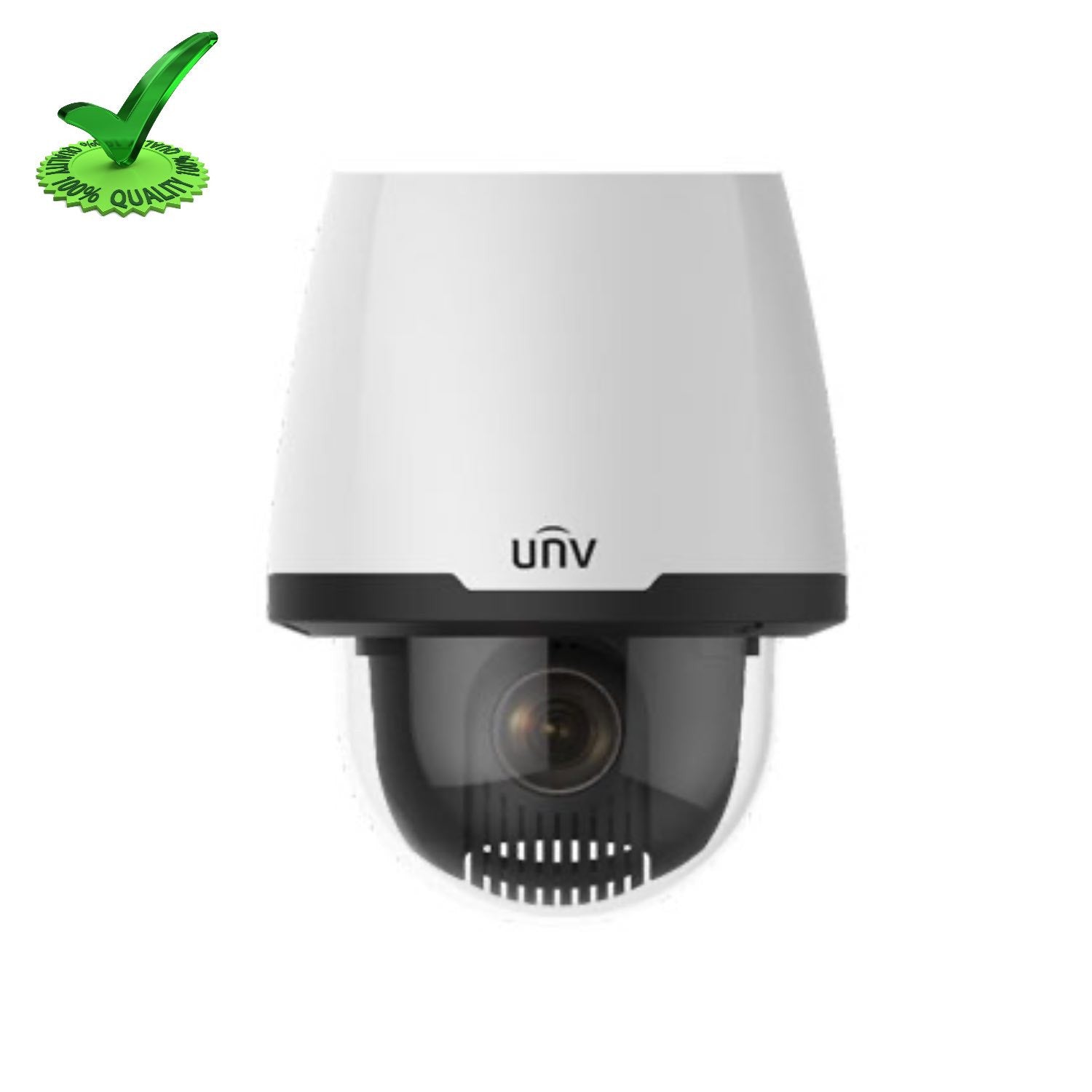

Uniview IPC6222EI-X33UP 2MP 33x IP PTZ Network Indoor Dome Camera

Specification

Camera

• Sensor : 1/2.8", 2.0 megapixel, progressive scan, CMOS
• Lens : 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens
• Digital Zoom : 16
• Optical Zoom : 33
• Angle of View (H) : 62.67°~ 2.82°
• Angle of View (V) : 38.4°~ 1.3°
• Angle of View (O) : 77.1°~ 3.3°
• Shutter : Auto/Manual; shutter time: 1 ~ 1/100000s
• Minimum Illumination : Colour: 0.001Lux (F1.5, AGC ON) B/W: 0.0001Lux(F1.5, AGC ON)
• Iris : Auto/Manual; F1.5 ~ F4.0
• Day/Night : IR-cut filter with auto switch (ICR)
• Digital noise reduction : 2D/3D DNR
• S/N : >52dB
• Defog : Digital Defog
• WDR : 120dB

Video

• Video Compression : Ultra 265, H.265, H.264, MJPEG
• H.264 code profile : Baseline profile, Main Profile, High Profile
• Frame Rate : Main Stream: 2MP (1920*1080), Max 60fps;  Sub Stream: 2MP (1920*1080), Max 60fps;  Third Stream: D1 (720*576), Max 60fps
• HLC : Supported
• BLC : Supported
• EIS : Supported
• OSD : Up to 8 OSDs
• Privacy Mask : Up to 24 areas
• ROI : Up to 8 areas
• Motion Detection : Up to 4 areas

Smart

• General Function : Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP  Authentication, User Authentication

Audio

• Audio Compression : G.711
• Two-way audio : Supported
• Suppression : Supported
• Sampling Rate : 8KHZ

Storage

• Edge Storage : Micro SD, up to 256GB
• Network Storage : ANR

Network

• Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x,  SNMP, QoS
• Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API

Pan & Tilt

• Pan Range : 360° (endless)
• Pan Speed : 0.1°/s ~ 400°/s
• Preset speed : 400°/s
• Tilt Range : 1° ~ 90° (auto reverse)
• Tilt Speed : 0.1° ~ 240°/s
• Preset speed : 240°/s
• Number of Presets : 1024
• Patrol : Preset patrol, route patrol, recorded patrol
• Home Position : Supported


Interface

• Audio I/O : Audio cable 1 Input: impedance 35kΩ; amplitude 2V [p-p] 1 Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O : 2/1
• Serial Port : 1 RS485
• Network : 1 RJ45 10M/100M Base-TX Ethernet
• Video Output : 1 BNC, impedance 75Ω; amplitude 1V [p-p]

General

• Power : AC 24V±25%, DC 24V±25%, PoE (IEEE 802.3at)
• Power consumption：8.5~15.5W
• Dimensions (Ø x H) : Ø 195 x 263mm (Ø 7.7” x 10.4”)
• Weight : 2.9kg (6.4lb)
• Working Environment : -20°C ~ 50°C (-4°F ~ 122°F), Humidity: ≤95% RH (non-condensing)
• Vandal Resistant : IK10

Extra Information

• SKU: IPC6222EIX33UP
• Warranty: 2 Years
• Brand: Uniview
• Megapixel: 2
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
