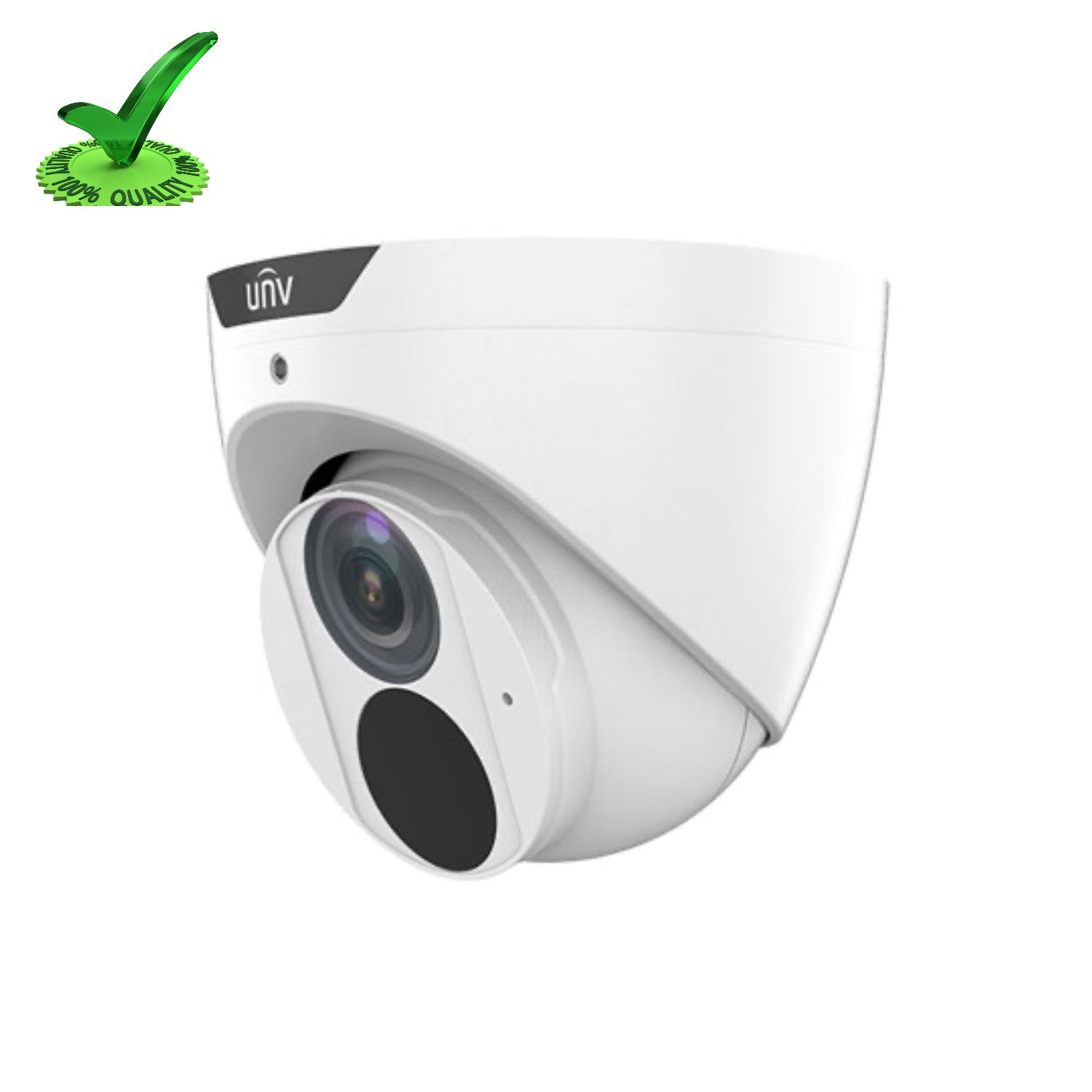

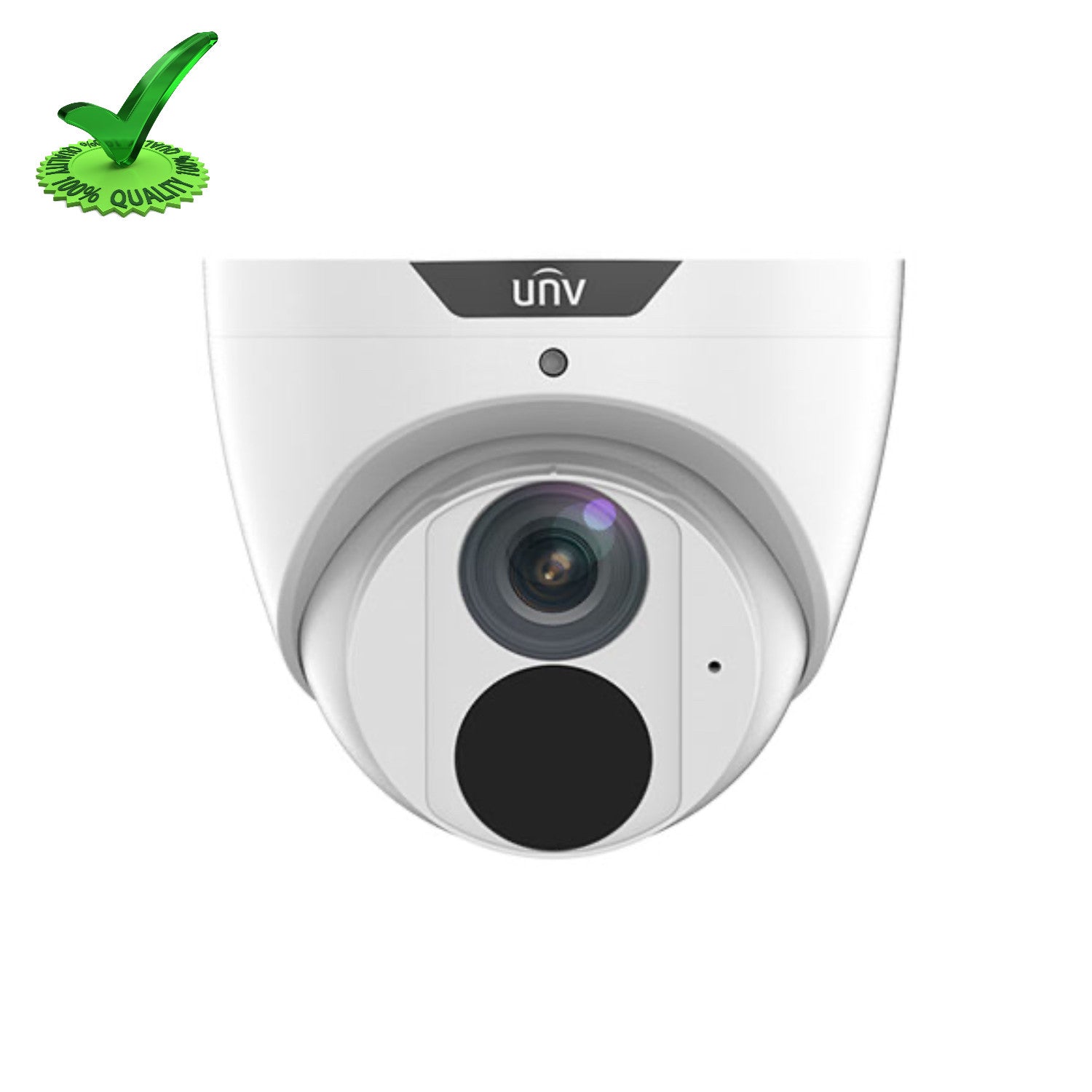

Uniview IPC3615SB-ADF28(40)KM-I0 5MP IP Network Dome Camera
Short Description
- High quality image with 5MP, 1/2.7"CMOS sensor
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Specifications
Camera
- Sensor : 1/2.7", 5.0 megapixel, progressive scan, CMOS
- Lens : 2.8mm@F1.6
- Angle of view(H) : 96.1°
- Angle of View (V) : 55.3°
- Angle of View (O) : 111.1°
- Adjustment angle : Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
- Shutter : Auto/Manual, 1 ~ 1/100000s
- Minimum Illumination : Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on
- Day/Night : IR-cut filter with auto switch (ICR)
- Digital Noise Reduction : 2D/3D DNR
- S/N : >56dB
- IR Range : Up to 30m (98ft) IR range
- Wavelength : 850nm
- IR On/Off Control : Auto/Manual
- Defog : Digital Defog
- WDR : 120dB
Video
- Video Compression : Ultra 265, H.265, H.264, MJPEG
- H.264 code profile : Baseline profile, Main profile, High profile
- Frame Rate : Main Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Video Bit Rate : 128 Kbps~16 Mbps
- OSD : Up to 8 OSDs
- Privacy Mask : Up to 4 areas
- ROI : Up to 8 areas
- Motion Detection : Up to 4 areas
- White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital noise reduction : 2D/3D DNR
- Smart IR : Support
- Flip : Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
- Dewarping : N/A
- HLC : Supported
- BLC : Supported
Audio
- Audio Compression : G.711
- Suppression : Supported
- Sampling Rate : 8KHZ
Storage
- Edge Storage : Micro SD, up to 256 GB
- Network Storage : ANR
Network
- Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP
- Compatible Integration : ONVIF (Profile S, Profile T), API
- Client : EZStation EZView EZLive
- Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
- Network : 1 RJ45 10M/100M Base-TX Ethernet
- Built-in Mic : Supported
Certifications
- Certifications : CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
- Power : DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 4.0W
- Dimensions (Ø x H) : Φ110.5 x 94.1mm (Φ4.4” x 3.7”)
- Net Weight : 0.425kg (0.93lb)
- Material : Metal
- Operating Conditions : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Strorage Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Surge Protection : 2KV
- Ingress Protection : IP67
- Reset Button : N/A
Extra Information
- SKU: IPC3615SBADF2840KMI0
- Warranty: 2 Years
- Brand: Uniview
- Megapixel: 5 Megapixel
- Technology: IP
- Camera Type: DOM
- Product Type: Camera
- PDF: View PDF
