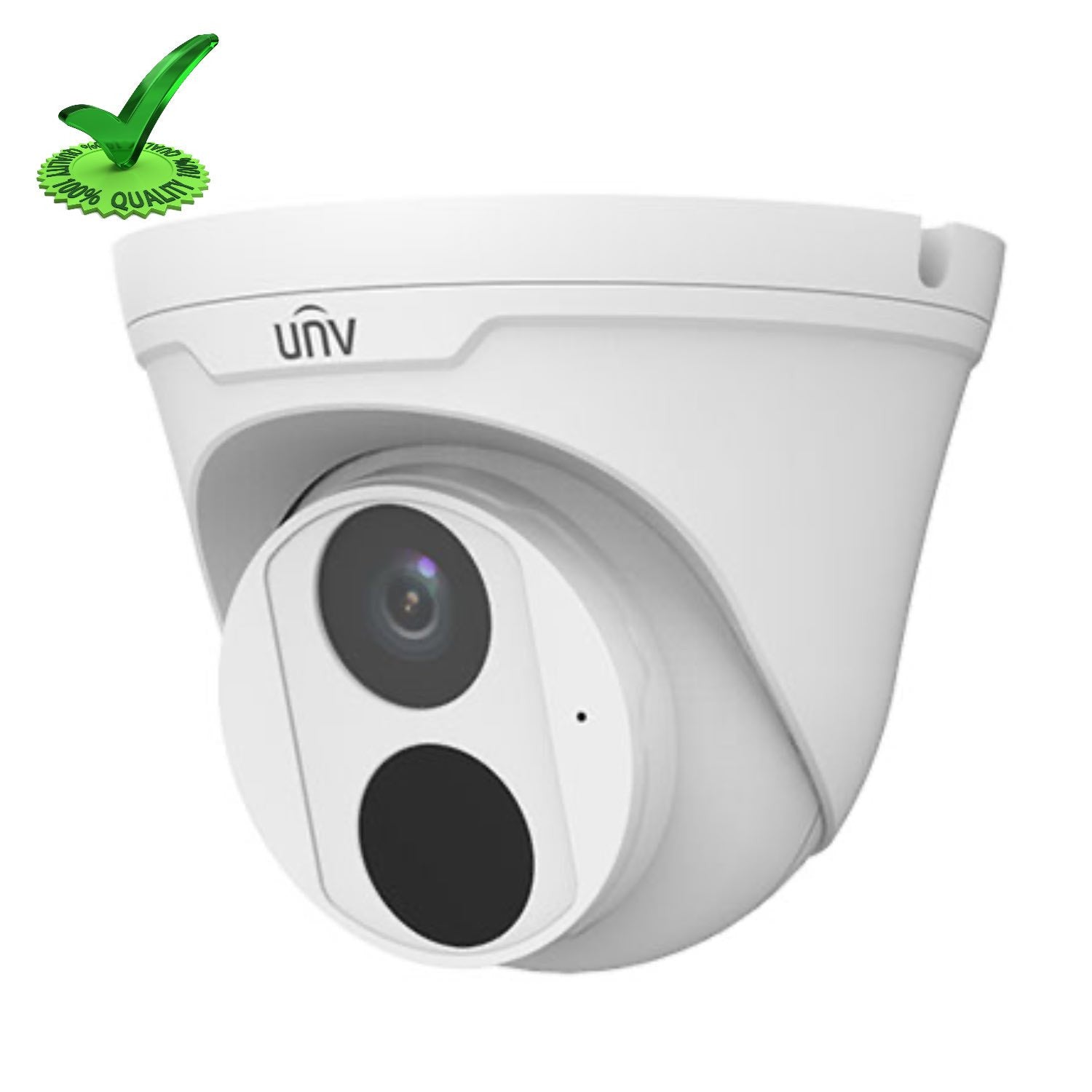

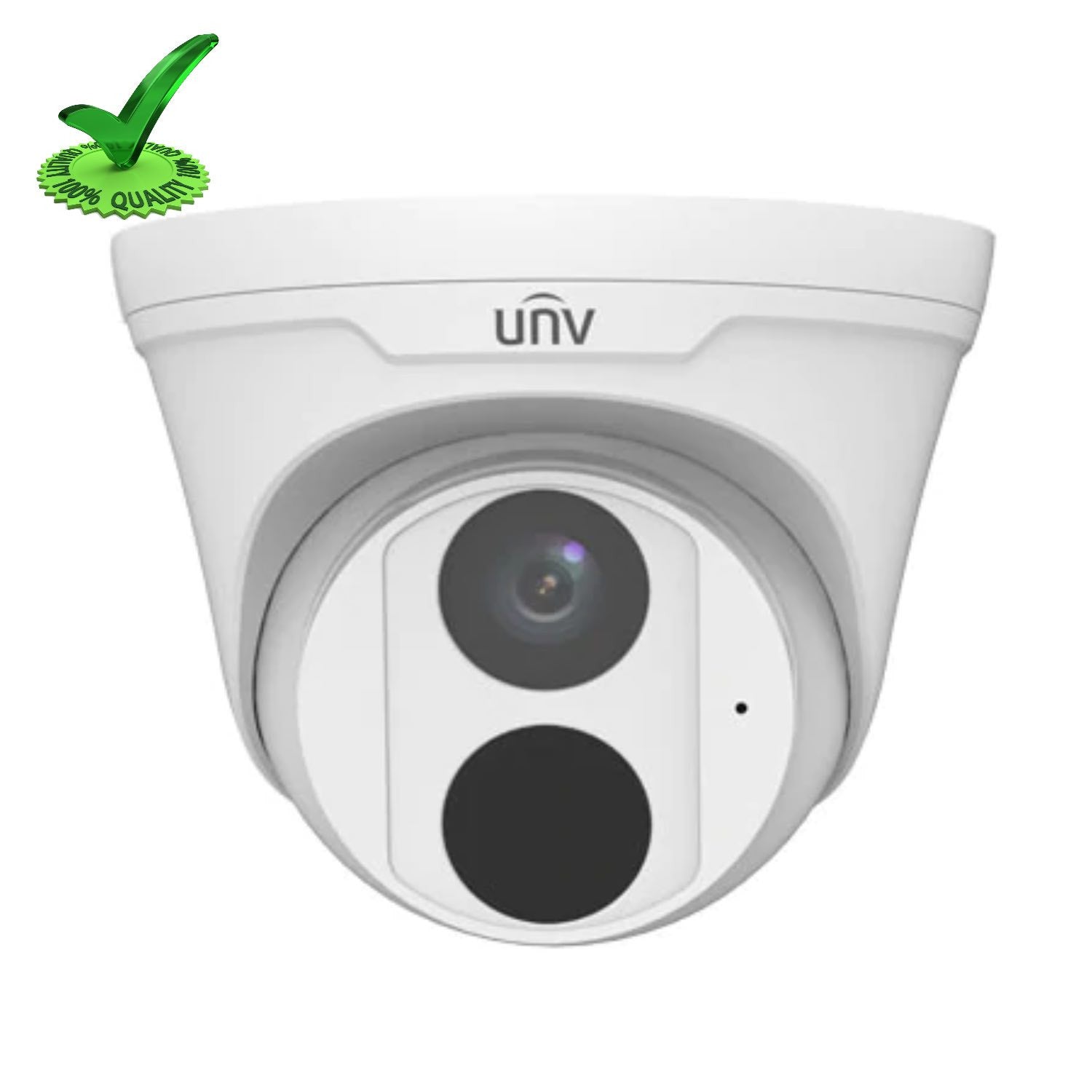

Uniview IPC3613LB-AF28(40)K-G 3MP IP IR Network Dome Camera
Short Description
- High quality image with 3MP, 1/2.7"CMOS sensor
- 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Support 9:16 Corridor Mode
- Smart IR, up to 30m (98ft) IR distance
- Built-in Mic
- Supports 128 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Specification
Camera
- Sensor : 1/2.7", 3.0 megapixel, progressive scan, CMOS
- Lens : 2.8mm@F2.0
- Angle of view (H) : 112.9°
- Angle of View (V) : 59.1°
- Angle of View (O) : 121.2°
- Shutter : Auto/Manual, 1 ~ 1/100000s
- Adjustment angle : Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
- Min. Illumination : Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR
- Day/Night : IR-cut filter with auto switch (ICR)
- Digital Noise Reduction : 2D/3D DNR
- S/N : >52dB
- IR Range : Up to 30m (98ft) IR range
- Wavelength : 850nm
- IR On/Off Control : Auto/Manual
- Defog : Digital Defog
- WDR : DWDR
Video
- Video Compression : Ultra 265, H.265, H.264, MJPEG
- H.264 code profile : Baseline profile, Main profile, High profile
- Frame Rate : Main Stream: 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Video Bit Rate : 128 Kbps~6144 kbps
- 9:16 Corridor Mode : Supported
- OSD : Up to 4 OSDs
- Privacy Mask : Up to 4 areas
- ROI : Up to 8 areas
- Motion Detection : Up to 4 areas
- White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction : 2D/3D DNR
- Smart IR : Supported
- Flip : Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
- Dewarping : N/A
- HLC : Supported
- BLC : Supported
Audio
- Audio Compression : G.711
- Suppression : Supported
- Sampling Rate : 8KHZ
Storage
- Edge Storage : Micro SD, up to 128 GB
- Network Storage : ANR, NAS(NFS)
Network
- Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP , UPnP, HTTP, HTTPS, SMTP, QoS, SSL, SNMP
- Compatible Integration : ONVIF (Profile S, Profile T ,Profile G), API
- Client : EZStation EZView EZLive
- Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
- Network : 10/100M Base-TX Ethernet
- Built-in Mic : Supported
Certifications
- Certifications : CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
- Power : DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 7.0W
- Dimensions (Ø x H) : Φ118 x 96mm (Φ4.6” x 3.8”)
- Net Weight : 0.30kg (0.66lb)
- Material : Metal + Plastic
- Working Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Strorage Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Surge Protection : 4KV
- Ingress Protection : IP67
- Reset Button : N/A
Extra Information
- SKU: IPC3613LBAF2840KG
- Warranty: 2 Years
- Brand: Uniview
- Megapixel: 3
- Technology: IP
- Camera Type: DOM
- Product Type: Camera
- PDF: View PDF
