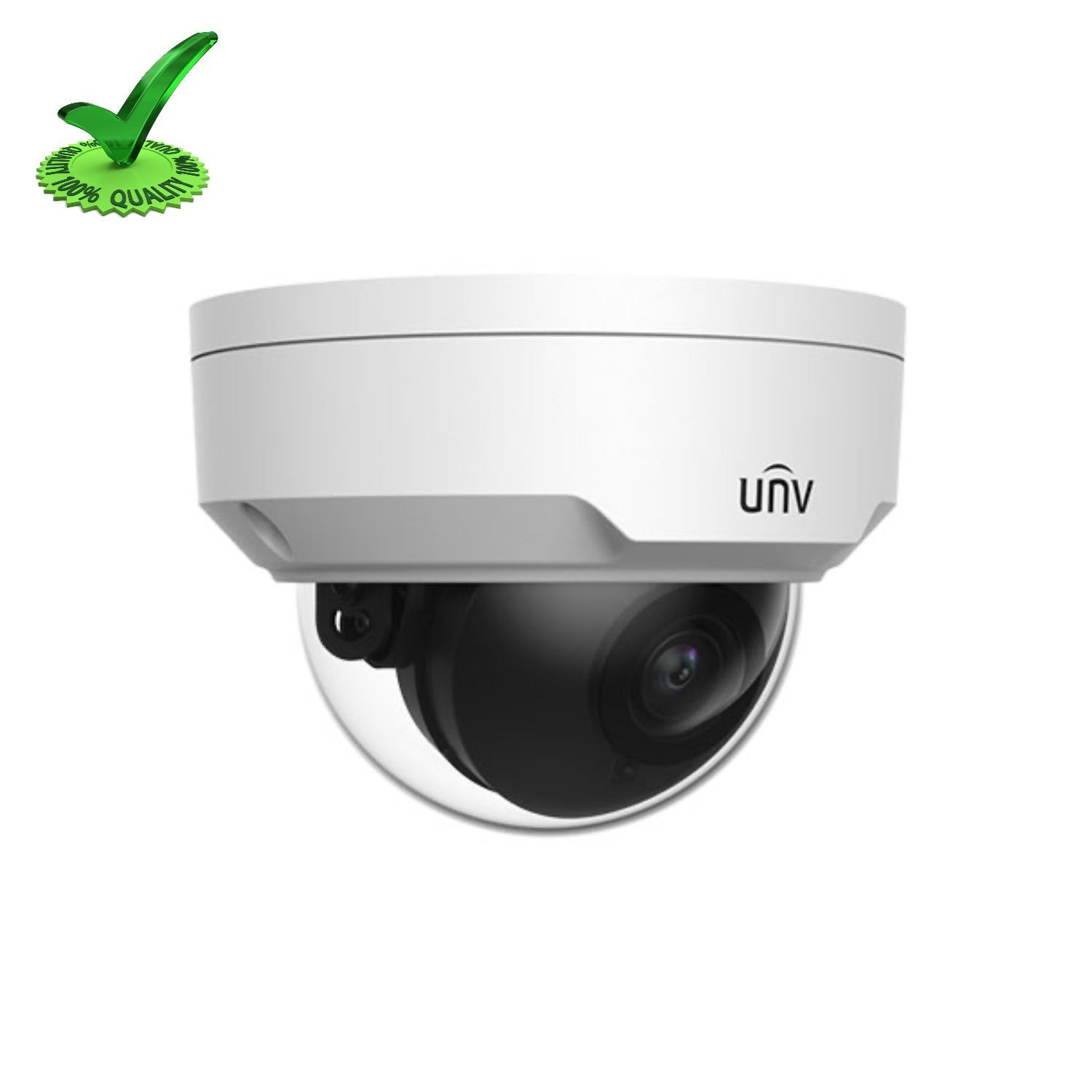

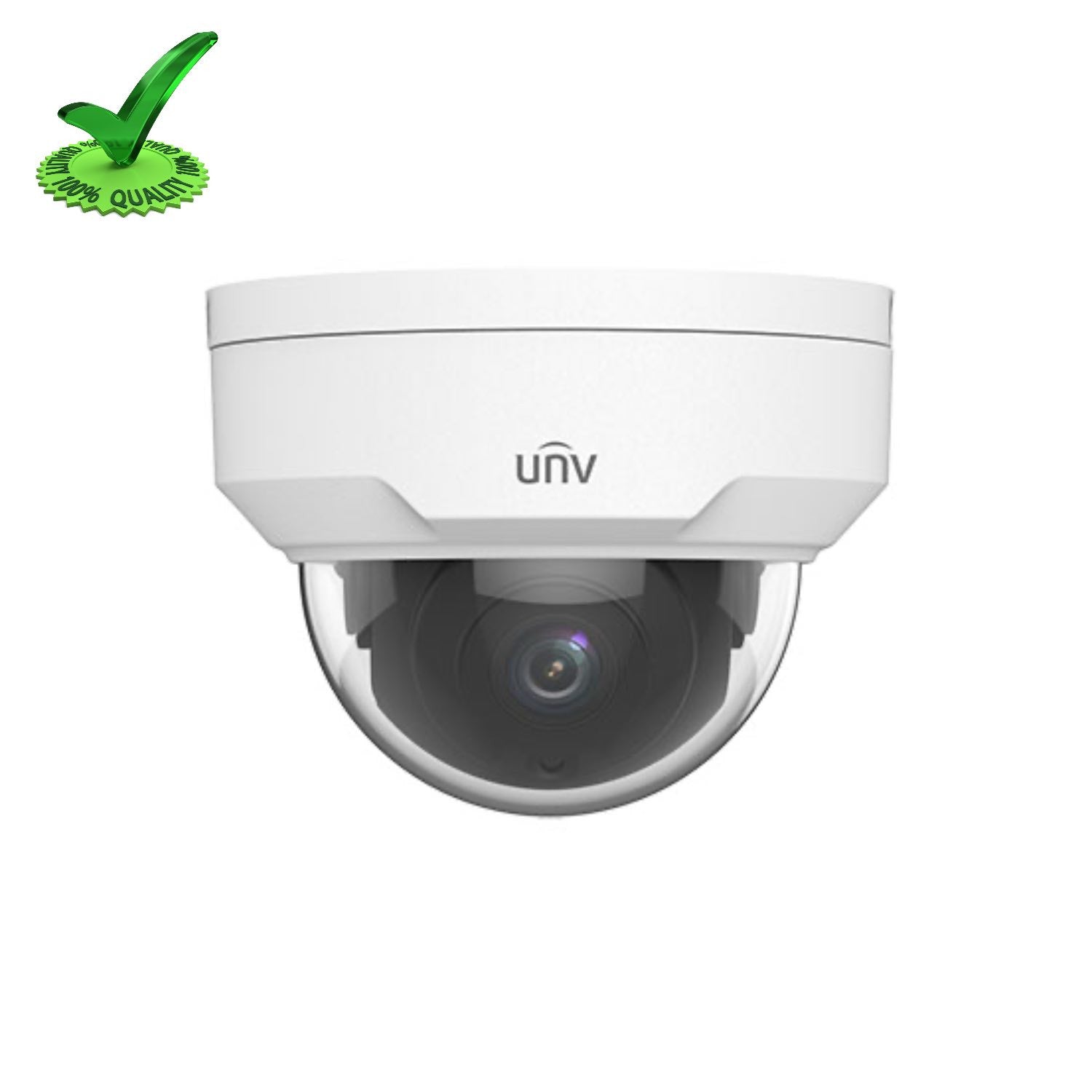

Uniview IPC325SR3-DVPF28(40)-F 5MP IP Dome Camera

Specification

Camera

• Sensor : 1/2.7", 5.0 megapixel, progressive scan, CMOS
• Lens : 2.8mm@F2.0
• Angle of View (H) : 105.6°
• Angle of View (V) : 69.9°
• Angle of View (O) : 137.3°
• Adjustment angle : Pan: 3°~ 360° Tilt: 0°~ 68° Rotate: 3°~ 360°
• Shutter : Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination : Colour:0.01 Lux (F2.0, AGC ON) 0Lux with IR
• Day/Night : IR-cut filter with auto switch (ICR)
• Digital noise reduction : 2D/3D DNR
• S/N : >56dB
• IR Range : Up to 30m (98ft) IR range
• WDR : 120dB

Video

• Video Compression : Ultra 265, H.265, H.264, MJPEG
• H.264 code profile : Baseline profile, Main Profile
• Frame Rate : Main Stream: 5MP (2592*1944), Max 20fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080),  Max 30fps;  Sub Stream: 4CIF (704*576), Max 30fps;  Third Stream: CIF (352*288), Max 30fps
• HLC : Supported
• BLC : Supported
• OSD : Up to 4 OSDs
• Privacy Mask : Up to 4 areas
• ROI : Up to 2 areas
• Motion Detection : Up to 4 areas

Audio

• Audio Compression : G.711
• Two-way audio : Supported
• Suppression : Supported
• Sampling Rate : 8KHZ

Storage

• Edge Storage : Micro SD, up to 256GB
• Network Storage : ANR

Network

• Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
• Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API

Interface

• Audio I/O : Input: impedance 35kΩ; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O : 1/1
• Network : 1 RJ45 10M/100M Base-TX Ethernet

General

• Power : DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption : Max 5.5W
• Dimensions (Ø x H) : Φ108.7 x 81.1mm (Ø 4.3” x 3.2”)
• Weight : 0.45kg (0.99lb)
• Working Environment : -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Ingress Protection : IP67
• Vandal Resistant : IK10

Extra Information

• SKU: IPC325SR3DVPF2840F
• Warranty: 2 Years
• Brand: Uniview
• Megapixel: 5 Megapixel
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
