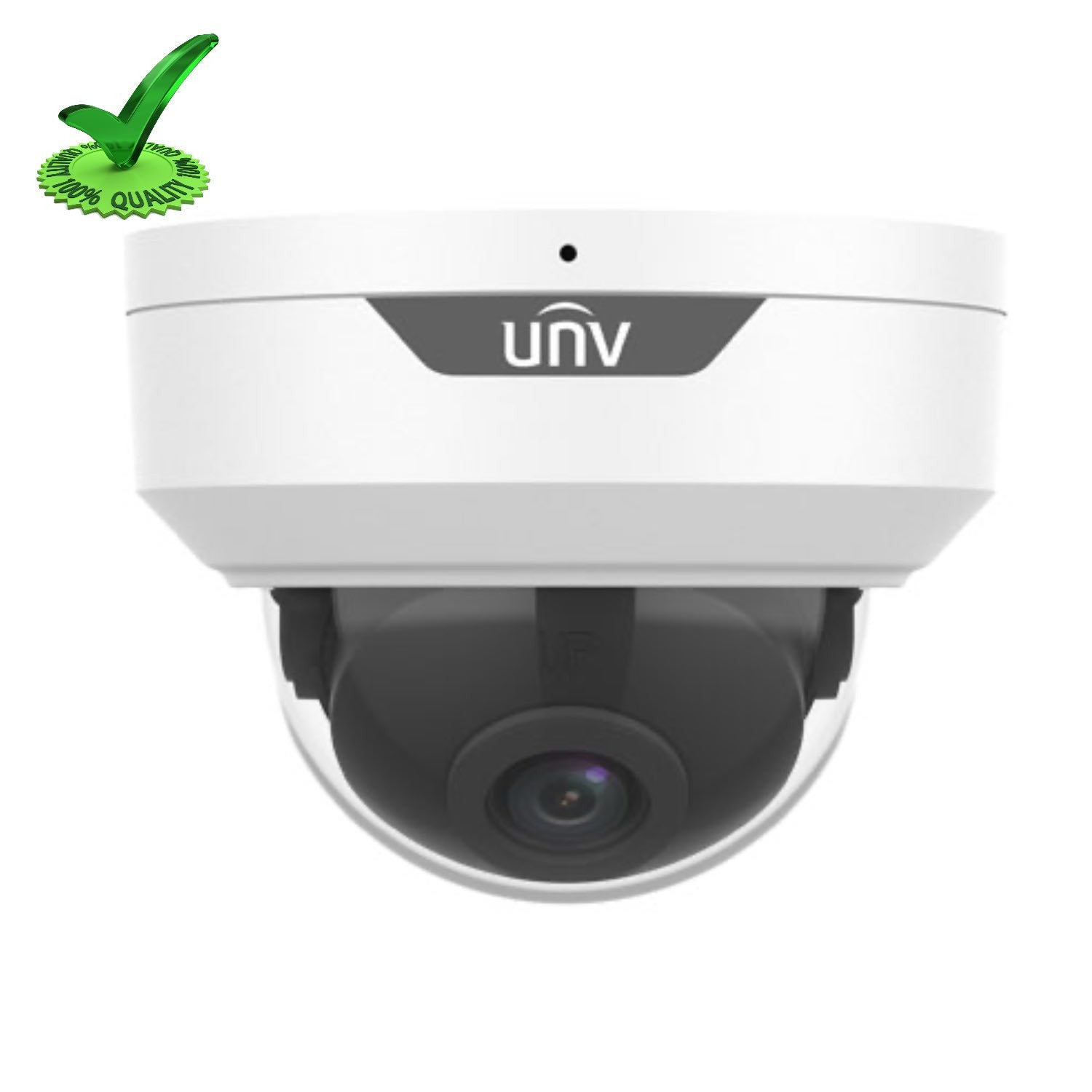

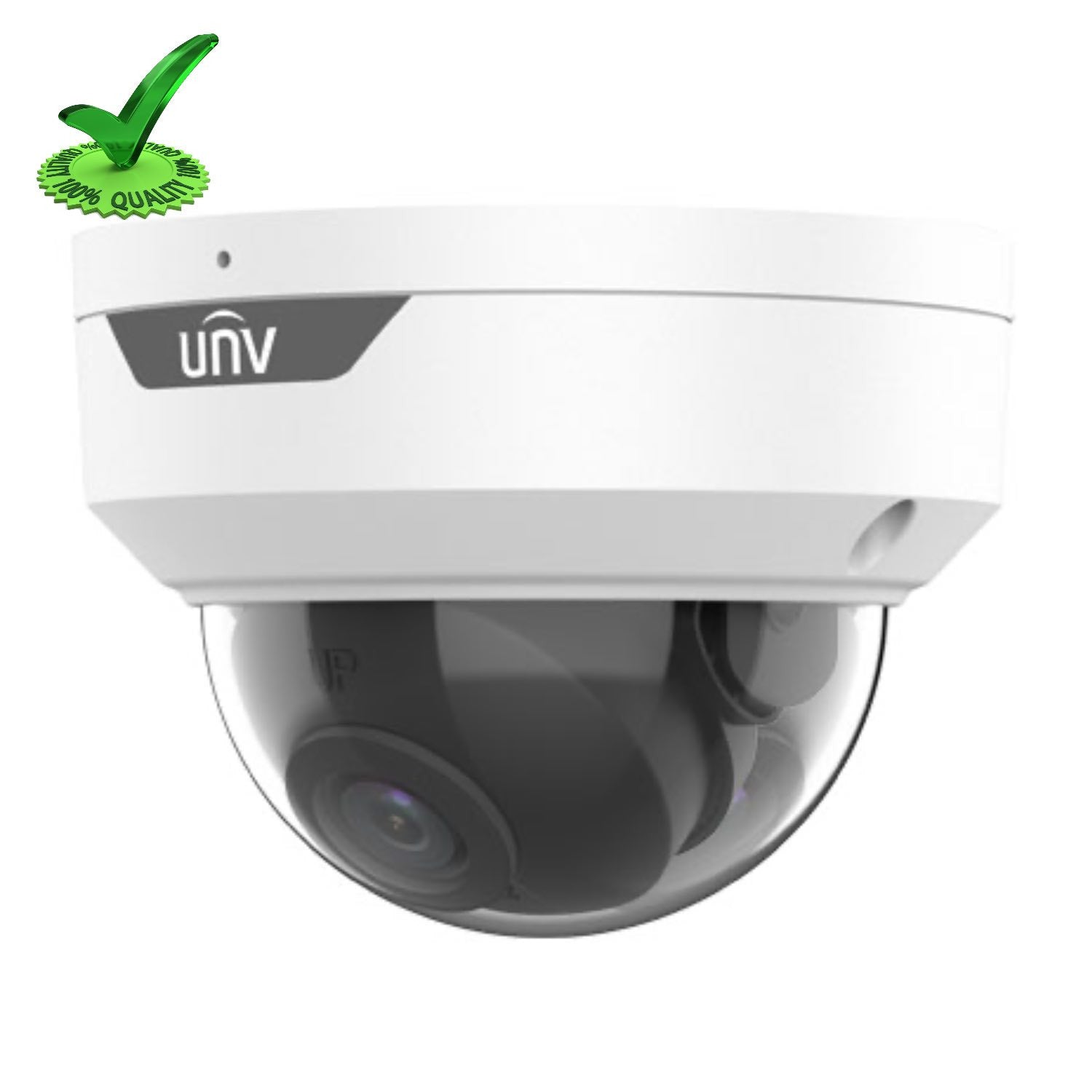

Uniview IPC325LE-ADF28(40)K-G 5MP IP Network Dome Camera
Short Description
- High quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps; Ultra 265, H.265, H.264, MJPEG
- Easystar technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
- 3-Axis
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Specification
Camera
- Sensor : 1/2.7", 5.0 megapixel, progressive scan, CMOS
- Minimum Illumination : Support Easystar: Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR on
- Day/Night : IR-cut filter with auto switch (ICR)
- Shutter : Auto/Manual, 1 ~ 1/100000s
- Adjustment angle : Pan: 8° to 360°,Tilt: 0° to 68°, Rotate: 10° to 360°
- S/N : >56dB
- WDR : 120dB
Lens
- Lens Type : 2.8mm and 4.0mm @1.6, Fixed-focal
- Lens Mount : M12
- Angle of view (H) : 112.9°
- Angle of View (V) : 59.1°
- Angle of View (O) : 121.2°
Illuminator
- IR Range : Up to 30m (98ft) IR range
- Wavelength : 850nm
- IR On/Off Control : Auto/Manual
Video
- Video Compression : Ultra 265, H.265, H.264, MJPEG
- H.264 code profile : Baseline profile, Main profile, High profile
- Frame Rate : Main Stream: 5MP (2880*1620), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Video Bit Rate : 128 Kbps~16 Mbps
- U-code : Supported
- 9:16 Corridor Mode : Supported
- OSD : Up to 4 OSDs
- Privacy Mask : Up to 4 areas
- ROI : Up to 8 areas
- Motion Detection : Up to 4 areas
- White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Image Setting : Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
- Digital noise reduction : 2D/3D DNR
- Smart IR : Supported
- Flip : Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
- Dewarping : N/A
- HLC : Supported
- BLC : Supported
- Defog : Digital Defog
Audio
- Audio Compression : G.711
- Suppression : Supported
- Sampling Rate : 8KHZ
Storage
- Edge Storage : Micro SD, up to 256 GB
- Network Storage : ANR,NAS(NFS)
Network
- Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
- Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host : Up to 32 users. 2 user levels: administrator and common user
- Security : Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client : EZStation EZView EZLive
- Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
- Network : 1 * RJ45 10M/100M Base-TX Ethernet
- Built-in Mic : Supported
Certification
- EMC : FCC: FCC Part 15
- Safety : CE: EN 60950-1 UL: UL60950-1 IEC 60950-1
General
- Power : DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 4.5W
- Power Interface : Ø 5.5mm coaxial power plug
- Dimensions (Ø x H) : Φ109 x 83mm (Ø4.3” x 3.3”)
- Weight : 0.36kg (0.79lb)
- Material : Metal + Plastic
- Working Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Strorage Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Surge Protection : 4KV
- Reset Button : N/A
- Ingress Protection : IP67
Extra Information
- SKU: IPC325LEADF2840KG
- Warranty: 2 Years
- Brand: Uniview
- Megapixel: 5 Megapixel
- Technology: IP
- Camera Type: DOM
- Product Type: Camera
- PDF: View PDF
