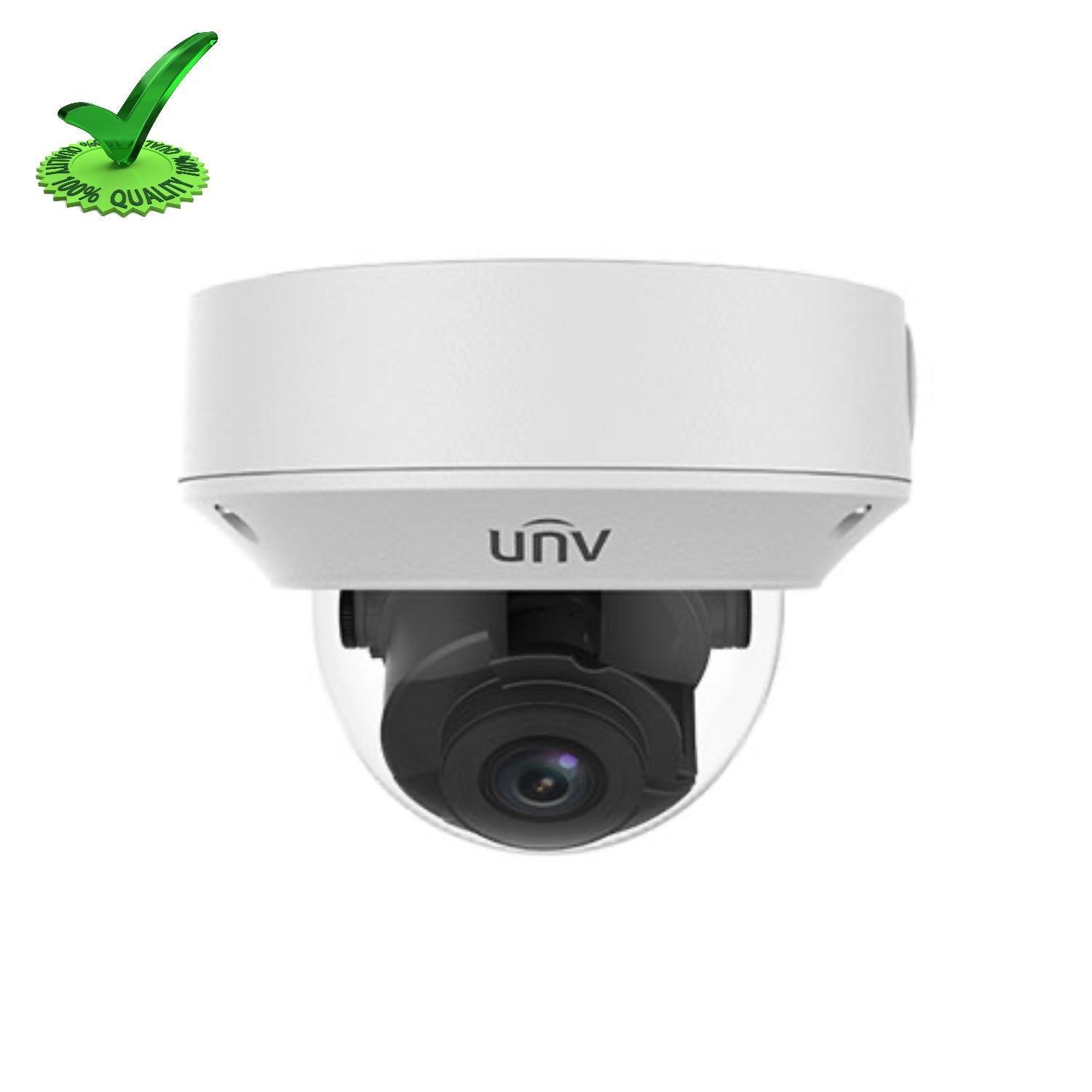

Uniview IPC3238EA-DZK 8MP IP Network Dome Camera
Short Description
- 1/1.8’’, Powered by lighthunter
- SmartIR, up to 40m (131 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
- ONVIF Conformance
- DC12V or AC24V or PoE power supply
- Wide voltage range of ±25% in AC, ±25% in DC
- Micro SD, up to 256 GB
- Alarm 1 in and 1 out, Audio 1 in and 1 out
- IP67 ingress protection
- IK10 vandal resistant
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Specifications
Camera
- Sensor : 1/1.8", 8.0 megapixel, progressive scan, CMOS
- Lens : 2.8-12mm@F1.2, AF automatic focusing and motorized zoom lens
- Iris : Auto aperture
- Angle of View (H) : 41.6°~106.5°
- Angle of View (V) : 24°~56°
- Angle of View (O) : 57°~126°
- Shutter : Auto/Manual, 1 ~ 1/100000s
- Adjustment angle : Pan: 0°~355° Tilt: 0°~70° Rotate: 0°~355
- Min. Illumination : Colour:0.002lux (F1.2, AGC ON) 0 lux with IR
- WDR : 120dB
- Day/Night : IR-cut filter with auto switch (ICR)
- S/N : >55dB
- IR Range : Up to 40m (131 ft) IR range
- Wavelength : 850nm
- IR On/Off Control : Auto/Manual
- Defog : Digital Defog
Video
- Video Compression : Ultra 265, H.265, H.264, MJPEG
- Frame Rate : Main Stream: 8MP(3840*2160),Max 30fps; 4MP(2560*1440),Max 30fps; 2MP(1920*1080),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps Fourth Stream: D1 (720*576), Max 30fps Fifth Stream: D1 (720*576), Max 30fps
- Video Bit Rate : 128 Kbps~16 Mbps
- ROI : Supported
- Video stream : Five streams
- OSD : Up to 8 OSDs
- Privacy Mask : Up to 8 areas(8 blacks/8 mosaics)
- White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital noise reduction : 2D/3D DNR
- Smart IR : Support
- Flip : Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
- HLC : Support
- BLC : Support
Smart
- General Function : Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
- Audio Compression : G.711U,G.711A
- Two way audio : Supported
- Sampling Rate : 8KHZ
Storage
- Edge Storage : Micro SD, up to 256 GB
- Network Storage : ANR,NAS(NFS)
Network
- Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
- Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API
- Client : EZStation Ezview EZLive
- Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
- Audio I/O : Audio cable 1 Input: impedance 35kΩ; amplitude 2V *p-p] 1 output: impedance 600Ω; amplitude 2V *p-p]
- Alarm I/O : 1/1
- Network : 1 x RJ45 10M/100M/1000M Base-TX Ethernet
Certification
- Certifications : CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
- Power : AC24V±25%, DC12V(±25%), PoE(IEEE 802.3af)
- Power consumption: Max 10.3W Support reverse polarity protection, Overvoltage and overcurrent protection , Input short circuit protection
- Dimensions (Ø x H) : Φ148 x 111.3mm(Φ5.8’’ x 4.4’’)
- Net Weight : 1kg(2.2lb)
- Material : Metal
- Working Environment : -40℃~60℃(-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Storage Environment : -40℃~70℃(-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
- Surge protection : 6KV
- Vandal Resistant : IK10
- Ingress Protection : IP67
Extra Information
- SKU: IPC3238EADZK
- Warranty: 2 Years
- Brand: Uniview
- Megapixel: 8
- Technology: IP
- Camera Type: DOM
- Product Type: Camera
- PDF: View PDF
