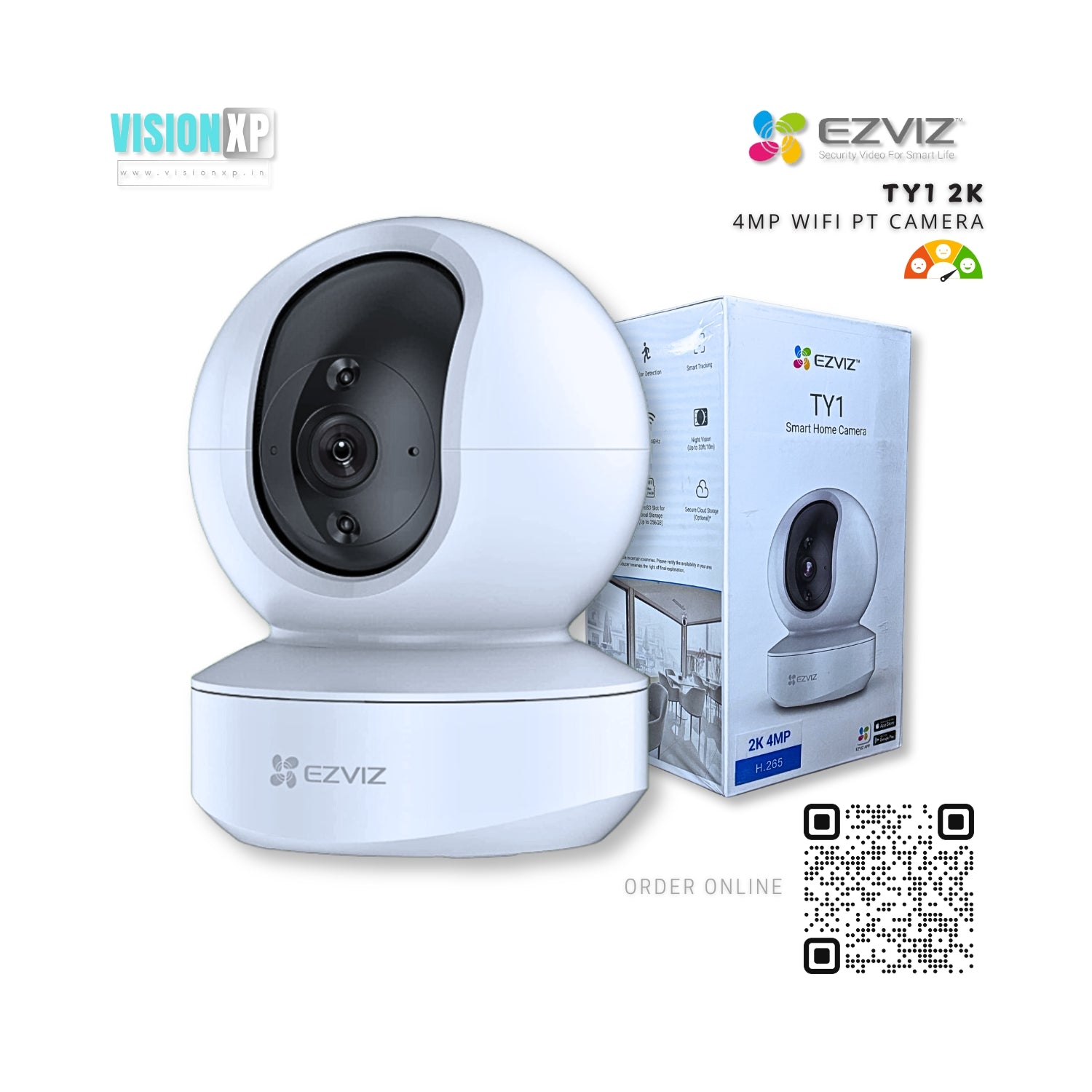

Ezviz TY1 Smart WiFi 2K 4MP PT Camera

Records every corner in 2K+ resolution

• This powerful camera records images in 2K+ resolution, rendering crisp details even in 4x digital zoom, so you see everything clearly in live video and playback.

Zero blind spots

• Keep tabs on every corner with just one TY1 2K+. Its expansive 360-degree field-of-view ensures full coverage, so you don’t miss a thing.

Get the notifications that matter

• A lot of activities go on inside your home. Don’t want to get alerted repeatedly when your curtains flutter in the wind? The TY1 2K+ is smart enough to identify human activities in particular. You can choose to get alerted only when somebody is detected on camera.

Smart tracking

• When it detects a moving object, the camera is smart enough to automatically track its motion while alerting you with an image in real-time.

Communication, anytime

• Talk to your loved ones and deter unwelcome strangers – all by using the camera’s two-way communication feature. Using the EZVIZ App on your mobile device, you can easily and conveniently enjoy communication wherever you might be.

See further in the dark

• Enjoy round-the-clock protection with the TY1 2K+ camera. Using powerful Infrared LED lights, it lets you see up to 10 meters (33 feet) in dim light.

A visual diary made of precious moments

• The TY1 2K+ ensures that you capture unforgettable moments and store the memories safely1

Enhanced viewing pleasure with smaller video files

• Compared to the prevailing H.264 video compressiontechnology, H.265 creates a more fluid viewing experience with recorded videos. Meanwhile, you won’t have to worry about large video files taking up too much of your storage space – H.265 technology reduces data storage by up to 50%

We do our utmost to protect your data and privacy

Specifications CS-TY1-C0-8B4WF

Camera

• Image Sensor : F2.2@1/3" Progressive Scan CMOS
• Shutter Speed : Self-adaptive shutter
• Lens : 4mm, view angle: 124°(Diagonal), 85° (Horizontal), 55°(Vertical)
• Lens Mount : M12
• Day & Night : IR-cut filter with auto-switching
• DNR : 3D DNR
• WDR : Digital WDR

Compression

• Video Compression : H.265 / H.264
• Video Bit Rate : Quad HD, Full HD, HD, Standard. Adaptive bit rate.


• Max. Resolution : 2560 × 1440
• Frame Rate : Max. 20 fps; Self-Adaptive during network transmission

Network

• Smart Alarm : Human Motion detection
• Wi-Fi Pairing : AP pairing
• Protocol : EZVIZ Cloud proprietary protocol
• Interface Protocol : EZVIZ Cloud proprietary protocol


Interface

• Storage : Micro SD card slot (Max. 256G)
• Power : Micro USB'
• Wired Network : RJ45 × 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

• Standard : IEEE802.11b, 802.11g, 802.11n
• Frequency Range : 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth : Supports 20MHz
• Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Transmission Rate : 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps
• Output Power(EIRP) : 19 dBm
• Antenna Gain : 1.9 dBi

General

• Operating Conditions : -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
• Power Supply : DC 5V/2A
• Power Consumption : Max. 5W
• IR Range : Max. 10 m (32.81 ft)
• Dimensions : 88 × 88 × 119 mm (3.46 × 3.46 × 4.67 inch)
• Packaging Dimensions : 103 × 103 × 186 mm (4.06 × 4.06 × 7.32 inch)
• Bare Weight : 259g (9.14oz)

In the box:

• TY1 2K+ Camera
• Base
• Screw Kit
• Power Cable
• Drill Template
• Power Adapter
• Quick Start Guide
• Regulatory Information

Certification:

• FCC / UL / CE / WEEE / REACH / RoHS
