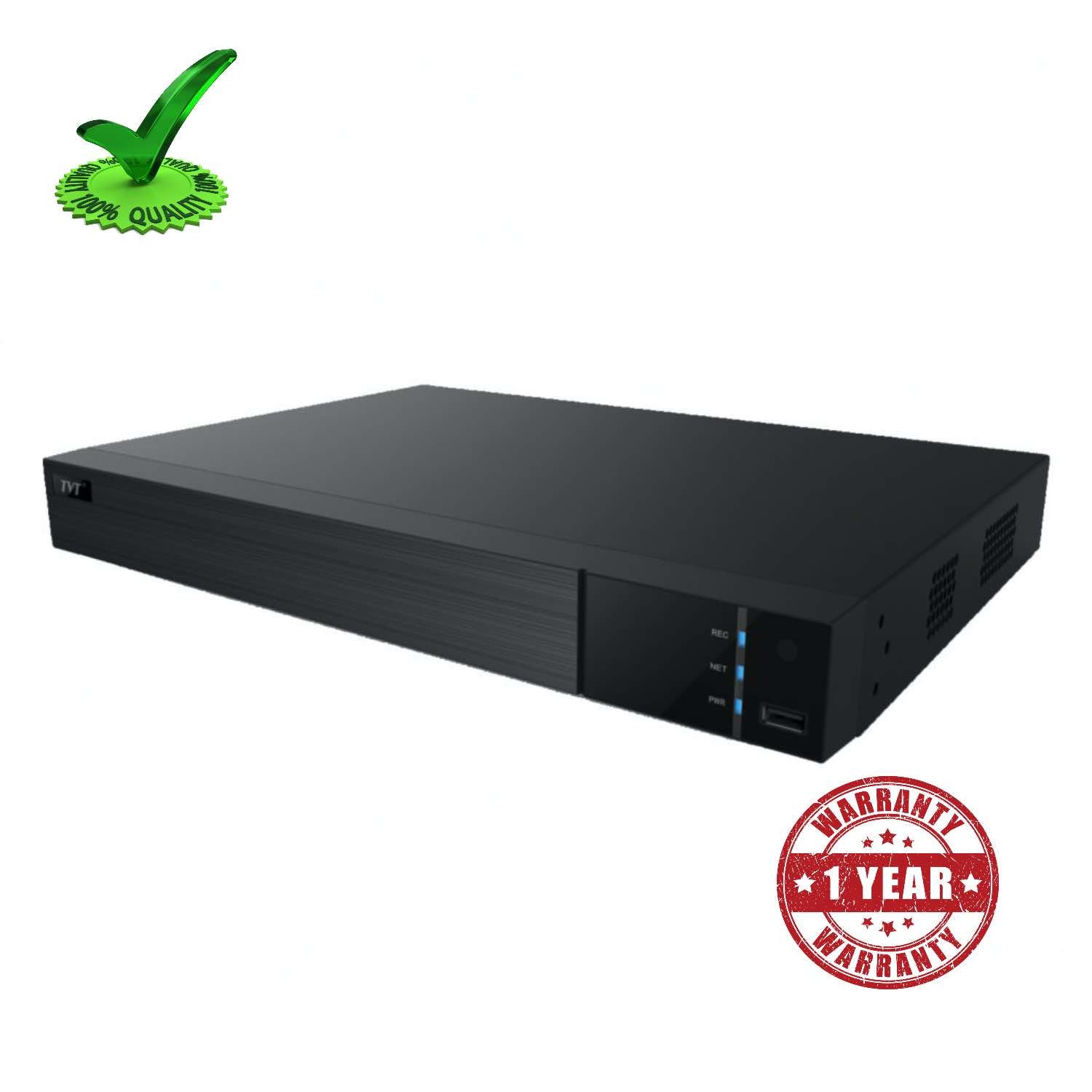

TVT TD 3132B2 32ch Network Video Recorder HD Nvr

Characteristics

• Support 16 / 32 CH 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input Adopt standard H.265 and H.264 high profile compression format to
• get high-quality video at much lower bit rate
• Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
• Multi-mode recording: manual / timer / motion / sensor Playback : 16 CH simultaneous playback
• Search : time slice, time, event ( manual, sensor, motion ), tag search Express and flexible backup via USB, network and so on
• Pentaplex : preview, record, playback, backup and remote access DHCP, DDNS, PPPoE network protocol and CMS supported
• Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
• Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
• Multi-user online simultaneously
• Authorization management, log view and device status view 4K output, true high resolution display
• Support PTZ preset and auto cruise, up to 255 presets and 8 cruises Support NAT function and QRCode scanning by mobile phone and PAD Powerful smart phone & Pad surveillance with iOS and Andriod OS

Model No : TD-3132B2

Systems

• Compression : Standard H.265, H.264
• OS : Embedded Linux

Video

• Network Input : 32 CH IPC input
• Network Access Bandwidth : 112 Mbps
• Network Access Format :  8MP / 5MP / 4MP, 3MP / 1080P / 960P, 720P@25 / 30fps
• Output : HDMI × 1 : 3840 × 2160, 1920 × 1080 / 1280 × 1024, 1024 × 768 VGA × 1 : , 1920 × 1080 / 1280 × 1024 / 1024 × 768

Audio

• Network Input : 32 CH IPC audio input
• 2-way Audio : RCA × 1
• Local Output : RCA × 1

Video

• Record Stream : Dual stream recording
• Resolution : 8MP / 5MP / 4MP 3MP / 1080P / 960P 720P @25 / 30fps
• Mode : Manual, timer, motion sensor

Playback

• Simultaneous Playback : Max 16 CH
• Search : Time slice / time event / tag search
• Smart Search : Highlight colors to display the camera record in a certain periodof time different colors refer to different record events
• Function : Play, pause, FF, FB, digital zoom, etc.

Alarm

• Mode : Manual, sensor, motion, exception
• Input : 4 CH local alarm input 32CH IPC alarm input
• Output : 1 CH
• Triggering : Record, snap, preset, e-mail, etc.

Network

• Interface : RJ45 10 / 100 / 1000 Mbps × 1
• Protocol : TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
• Mobile Device : OS
• Storage : HDD

Backup

• Local Backup : U disk, USB mobile HDD
• Network Backup : Yes

Port

• RS485 : RS485 × 1，connect to PTZ or keyboard
• USB : USB 2.0 × 2 ( one in the front panel and the other in the rearpanel)
• Remote Controller : Optional

Others

• Power Supply : DC12V
• Consumption : ≤ 15W ( without HDD )
• Dimensions (mm) : 380 × 268 × 52 ( W × D × H )
• Work Environmen : -10 ～ 50 ℃ 10% ～ 90% humidity

Extra Information

• SKU: 3132B2
• Warranty: 2 Years
• Brand: TVT
• PDF: View PDF
