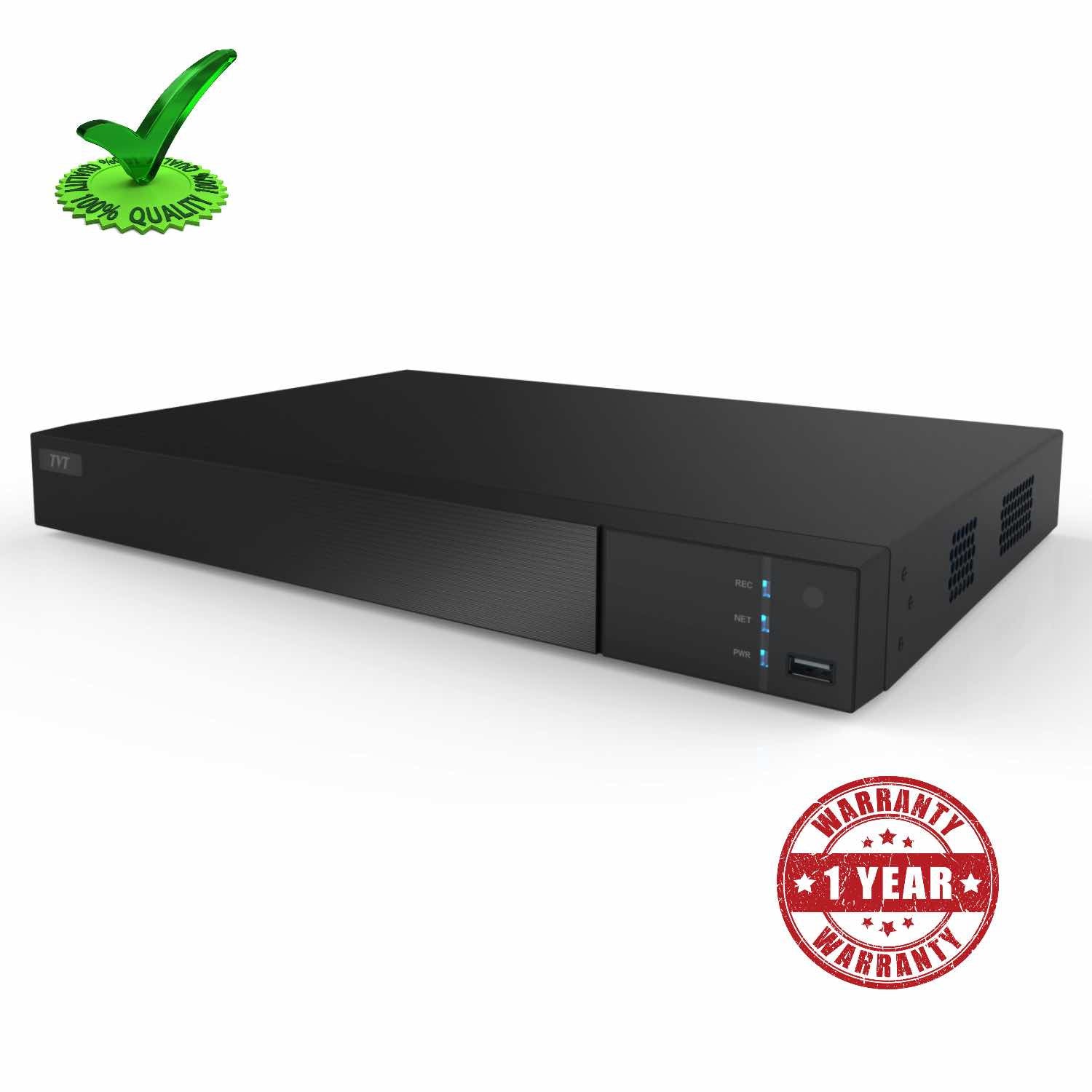

TVT TD-2732TS-HC 32ch 1080p high Definition Digital Video Recorder DVR

Characteristics

• 32 CH TVI / CVI / AHD video input
• 32 CH 1080P / 1080P lite / 720P / WD1 recording
• Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
• Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
• Multi-mode recording: manual / timer / motion / sensor Playback : 16 CH simultaneously playback
• Search: time slice, time, event ( manual, sensor, motion ), tag search Express and flexible backup via USB, network and so on
• Pentaplex: preview, record, playback, backup and remote access DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
• Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
• Multi-user online simultaneously
• Authorization management, log review and device status review HDMI 1080P output, true high resolution display
• Support PTZ preset and auto cruise, up to 255 presets and 8 cruises Support NAT function and QRCode scanning by mobile phone and PAD Powerful smart phone & Pad surveillance with iOS and Andriod OS

Model : TD-2732TC-C

System

• Compression :  Standard H.264 High Profile
• CPU : Cortex A9
• OS : Embedded Linux

Video

• Input : BNC × 32
• Resolution : TVI / CVI / AHD 1080P, 720P, WD1 real time
• Output : HDMI × 1 : 1920 × 1080, VGA × 1 : 1920 × 1080, BNC × 1 :CVBS ( used as the main or spot output )

Audio

• Input : RCA × 4
• Output : RCA × 1
• Two-way audio : Take up channel one audio input

Record

• Resolution : 1080P, 1080P lite, 720P, WD1
• Frame Rate : 1080P : 12 fps (PAL) / 15 fps (NTSC) 1080P lite / 720P / WD1 : 25 fps (PAL) / 30 fps (NTSC)
• Bit Rate : 768Kbps ~ 8Mbps
• Mode : Manual, timer, motion, sensor

Playback

• Playback : 16 CH
• Search : Time slice / time / event / tag search
• Smart Search : Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
• Function : Play, pause, FF, FB, digital zoom, etc.

Alarm

• Mode : Manual, sensor, motion, exception
• Input : 4
• Output : 1
• Triggering : Record, snap, preset, e-mail, etc.

Network

• Interface :  RJ45 10M / 100M /  1000Mbps × 1
• Protocol :  TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
• Web Client : Multiple users online

Mobile Device

• OS : iOS, Andriod

Storage

• HDD : SATA × 4, max 6T per HDD

Backup

• Local Backup : U disk, USB removable HDD
• Network Backup : Yes

Port

• RS485 : RS485 × 1, connect to PTZ or keyboard
• USB :  USB 2.0 × 1 ( front panel ), USB 3.0 × 1 ( rear panel )
• RemoteController : Optional

Others

• Power Supply : ATX 250W
• Consumption : ≤ 20W( without HDD
• Dimensions( mm ) : 440 × 390 × 70 ( W × D × H )
• WorkEnvironment : -10 ～ 50 ℃，10% ～ 90% humidity

Extra Information

• SKU: 2732TSSC
• Warranty: 2 Years
• Brand: TVT
• Technology: Analogue
• Product Type: DVR/XVR
