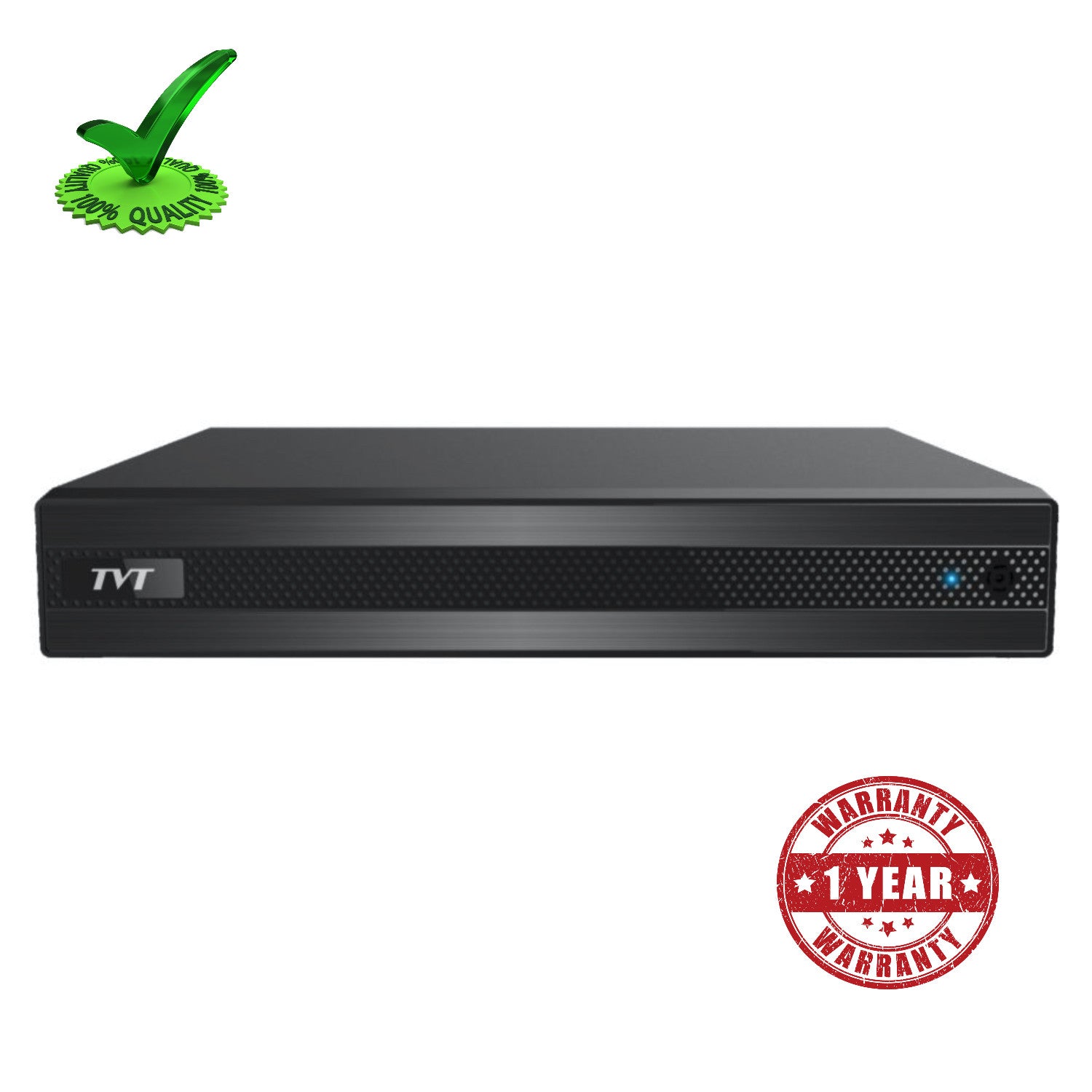

TVT 4ch Network Video Recorder HD NVR TD-3104B1

TD-3104B1 5MP / 4MP / 3MP / 1080P / 960P / 720P HD NVR

Characteristics

• Support 4 / 8 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate
• Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
• Multi-mode recording: manual / timer / motion / sensor Playback : 4 / 8 CH simultaneous playback
• Search : time slice, time, event ( manual, sensor, motion ), tag search Express and flexible backup via USB, network and so on
• Pentaplex : preview, record, playback, backup and remote access DHCP, DDNS, PPPoE network protocol and CMS supported
• Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
• Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
• Multi-user online simultaneously
• Authorization management, log view and device status view 1080P HD output, true high resolution display
• Support PTZ preset and auto cruise, up to 255 presets and 8 cruises Support NAT function and QRCode scanning by mobile phone and PAD Powerful smart phone & Pad surveillance with iOS and Andriod OS

Model : TD-3104B1

System

• Compression : Standard H.265, H.264
• OS : Embedded Linux

Video

• Network Input : 4 CH IPC input
• Network Access Bandwidth : 32Mbps
• Network Access Format : 5MP/4MP/3MP/1080P 960P/720P@25 / 30fps
• Output : HDMI × 1 : 2560×1440/1920×1080 1280×1024/1024× 768VGA × 1 1920×1080/1280×1024/1024×768

Audio

• Network Input : 4 CH IPC audio input
• 2-way Audio : No.
• Local Output : No ( HDMI supports the audio output )

Record

• Record Stream : Dual stream recording
• Resolution : 5MP / 4MP / 3MP 1080P / 960P / 720P @25 / 30fps
• Mode : Manual, timer, motion, sensor

Playback

• Simultaneous Playback : Max 4 CH
• Search :  Time slice / time event / tag search
• Smart Search : Highlight colors to display the camera record in a certain period oftime different colors refer to different record events
• Function : Play, pause, FF, FB digital zoom, etc.

Alarm

• Mode : Manual, sensor, motion exception
• Input : No
• Output : No
• Triggering : Record, snap, preset e-mail, etc.

Network

• Interface : RJ45 100 Mbps × 1
• Protocol : TCP / IP, PPPoE, DHCP DNS, DDNS, UPnP, NTP SMTP
• Mobile Device : OS, iOS, Andriod

Storage

• HDD : SATA × 1, up to 8TB per HDD

Backup

• Network Backup : Yes

Port

• USB : USB 2.0 × 2
• Remote Controller : Optional

Others

• Power Supply : DC12V/1.5A
• Consumption : ≤ 6W ( without HDD )
• Dimensions (mm) : 255 × 233 × 42 ( W × D × H )
• Work Environment : -10 ï½ž 50 â„ƒ 10% ï½ž 90% humidity

Extra Information

• SKU: 3104B1
• Warranty: 2 Years
• Brand: TVT
• PDF: View PDF
