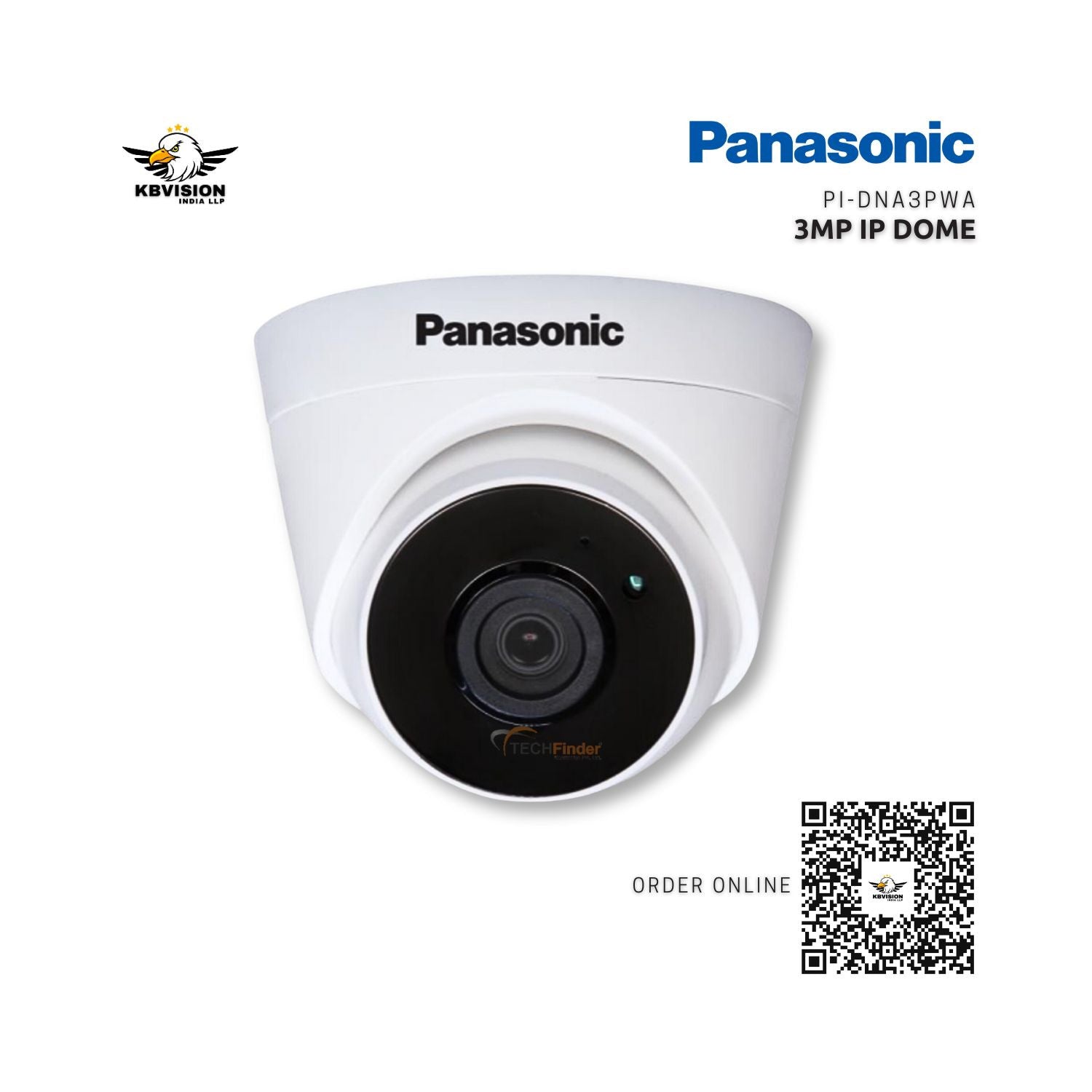

Panasonic PI-DNA3PWA 3mp IP Dome Camera
Panasonic PI-DNA3PWA 3MP Network Dome Camera
Key Features :
- 1/2.7" 3MP Progressive CMOS Sensor.
- Supports H.265+, H.265 & H.264, Dual-Stream Encoding.
- 3.6mm Lens.
- IR Distance 30m.
- Mic Built-In.
- PoE Built-In.
- Wi-Fi Built-In (2.4 GHz Only)
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Panasonic PI-DNA3PWA 3 Megapixel IP Dome Camera
Product Specification :
- Image Sensor : 1/2.7” 3MP Progressive CMOS Sensor
- Effective Pixels : 2304x1296
- Minimum Illumination : Color: 0.01 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR
- S/N Ratio : >60dB
- IR Distance : IR Distance 30m
- Shutter Speed : Auto, Manual Mode: 1/50sec~ 1/10000sec
- WDR : 80db
- IR On/Off Control : Auto/ Manual
- IR LEDs : 3 Array LED, IR Distance 30m
- Lens Type : Fixed
- Mount Type : M12
- Focal Length : 3.6mm Lens
- Max. Aperture : F1.2
- Angle of View : Horizontal Angle- 82°, Vertical Angle- 63°, Diagonal Angle- 92°
- Focus Control : Fixed
- Compression : H.265+, H.265, H.264
- Streaming Capability : 2 Streams
- Resolution : 3MP (2304x1296)/2MP (1920×1080)/D1(704×576)/ VGA (640×480)/ CIF (352×288)
- Streams : Mainstream:3MP/2MP @25/30fps, Sub Stream: D1/ VGA/ CIF @25 FPS
- Frame Rate : 1 ~ 30fps
- Bit Rate Control : CBR/VBR
- Bit Rate : 221-8192Kbps
- Day/Night : Automatic/ Black and white
- Exposure Mode : Automatic/Manual-(1/50-1/10000)
- BLC Mode : On/Off
- Profiles : Auto, Low Light Priority, High Light Priority
- Noise Filter : Auto/ 1-5Levels
- Digital Zoom : Supports upto 64X (Area selection with Mouse)
- Anti-Flicker : On/Off
- AE reference : 1-255Level
- AE Sensitivity : 1-10Level
- Flip : Off / On
- IR reverse : Support
- Mirror : Off / On
- Text Overlay : Title, Date & Time, Weekday
- Privacy Masking : Yes (4 zones)
- Motion Detection : 22X18 Zones
- Video Blind : Support
- Abnormality : No Disk, Disk Error, Disk No Space, Network Cable Disconnected, IP Address Conflict
- Smart Functions : Intrusion Detection, Line Crossing Detection, Human Detection
- Event Actions : Record alarm, Email link, Upload FTP, Snapshot
- 3-Axis Adjustment (Bracket) : Pan:0° ~360°; Tilt:0° ~90°; Rotation:0° ~360°
- ONVIF Authentication : ON, OFF
- RTSP Authentication : Digest, None
- Compression : G.711A/U
- Talk Back : NA
- Ethernet : 10/100M adaptive Ethernet interface
- Protocol : TCP/IP, IPv4, ICMP, HTTP, HTTPS, HTTP-Base64, HTTP-Digest, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, FTP, IGMP, P2P,IP Filter, Wi-Fi
- Interoperability : ONVIF Profile S & T
- Max. User Access : 30 Users
- Edge Storage : Local PC for instant recording, one clicks Snapshot, one clicks triple Snapshot
- Web Viewer : IE, Chrome, Firefox, Safari
- Management Software : Panasonic VMS
- Smart Phone : Supports Panasonic PHS for iPhone, Android
- Audio : 1 Input
- Operating Conditions : -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
- Storage Conditions : -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
- Ingress protection : NA
- Vandalism protection : NA
- Power Supply : DC 12V ± 10%, PoE (802.3af, class 3)
- Power Consumption : Max 12W
- Dimension & Weight : 90.25mm(H) x110mm(W), 200g
- Certificates : CE, FCC, IS:13252 (Part 1): 2010, BIS Registered
Extra Information
- SKU: PIDNA3PWA
- Warranty: 2 Years
- Brand: Panasonic
- Megapixel: 3
- Technology: IP
- Camera Type: DOM
- Product Type: Camera
- PDF: View PDF
