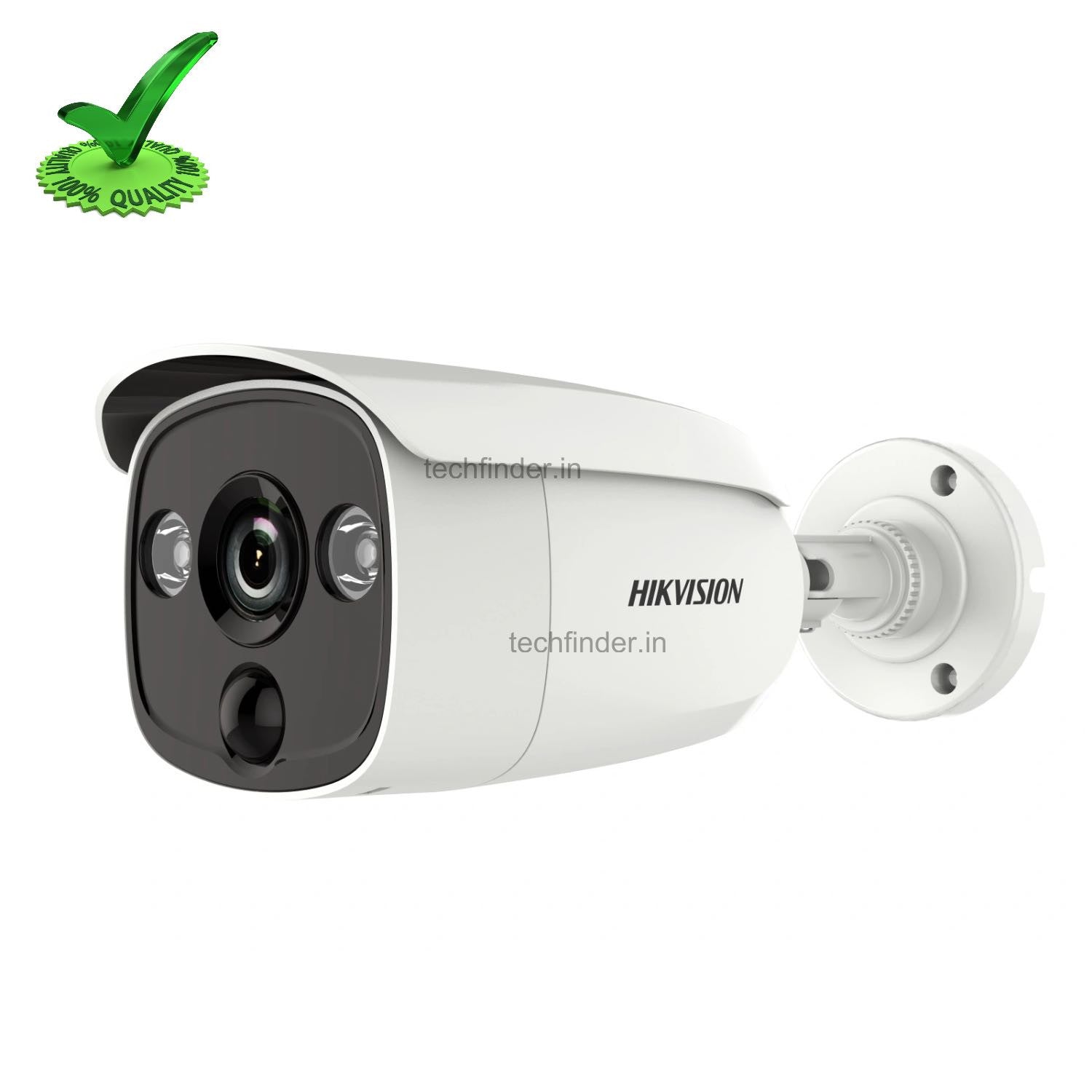

Hikvision DS-2CE12H0T-PIRL0 5MP HD Bullet Camera

Camera Specification

• Image Sensor : 5 MP CMOS
• Signal System : PAL/NTSC
• Frame Rate : TVI: 5 MP@20fps, 4 MP@25fps, 4 MP@30fps, 1080P@25fps, 1080P@30fps
• Resolution : 2560 (H) × 1944 (V)
• Min. Illumination : 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time : PAL: 1/20 s to 1/50,000 s, NTSC: 1/20 s to 1/50,000 s
• Lens : 2.8 mm, 3.6 mm fixed lens
• Field of View : 2.8 mm, horizontal FOV: 85.5°, vertical FOV: 63.8°, diagonal FOV: 110.7°
• 3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.8°, diagonal FOV: 105.9°
• Lens Mount : M12
• Strobe Light Alarm : Yes
• Day & Night : ICR
• WDR : Digital WDR
• Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°

Menu

• White Light : AUTO/OFF
• Image Mode : STD/HIGH-SAT
• AGC : Yes
• Day/Night Mode : Auto/Color/BW (Black and White)
• White Balance : Auto/Manual
• AE (Auto Exposure) Mode : DWDR/BLC/HLC/Global
• Noise Reduction : 2D DNR
• Language : English
• Functions : Brightness, Sharpness, Mirror, Smart IR

Interface

• Video Output : 1 HD analog output
• Alarm : 1 alarm out

General

• Operating Conditions : -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
• Power Supply : 12 VDC ± 25%
• Power Consumption : Max. 3.5 W
• Ingress Protection : IP67
• Material : Front cover: Metal, Main body: Plastic
• IR Range : Up to 20 m
• PIR Angle and Range :  Angle: 110°, Range: 11 m
• White Light Range : Up to 20 m
• Communication : HIKVISION-C
• Dimensions : 88.6 mm × 81.3 mm × 224.7 mm (3.49" × 3.20" × 8.85")
• Weight : Approx. 443 g (0.98 lb.)

Extra Information

• SKU: DS2CE12HOTPIRLO
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 5 Megapixel
• Camera Type: Bullet
• Product Type: Camera
• PDF: View PDF
