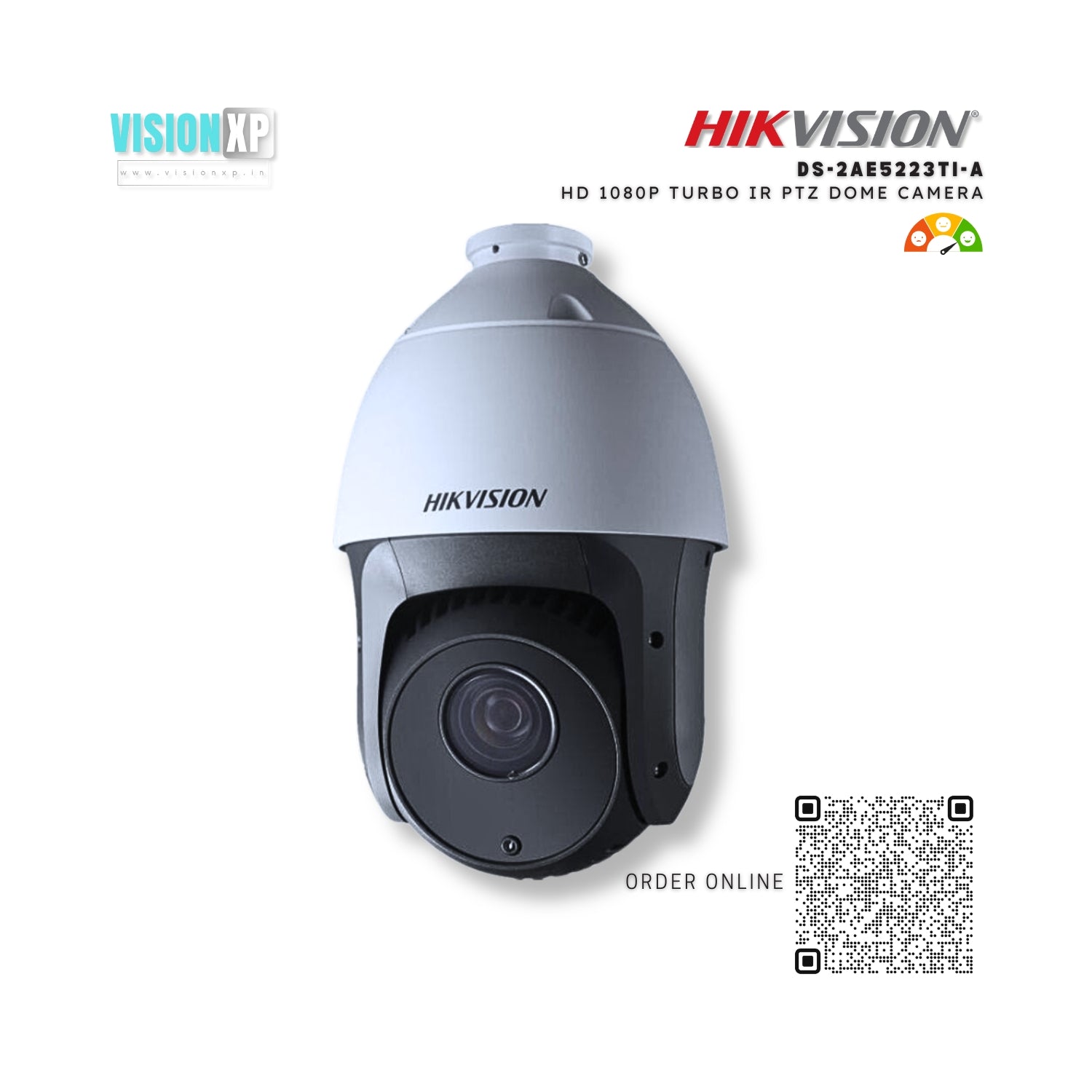

Hikvision DS-2AE5223TI-A HD 1080P Turbo IR PTZ Dome Camera
Hikvision DS-2AE5223TI-A PTZ Dome Cameras are able to capture high quality images in low light environment with its black anti-reflective glass. The black anti-reflective glass increase the luminousness which can reach up to 150m IR distance. Embedded with 1/3’’ progressive scan CMOS chip makes DWDR and 1MP/2MP real-time resolution possible. With the 23X optical zoom Day/Night lens, the camera offers more details over expansive areas.
Key Features
- 1/3" Progressive Scan CMOS
- 1280x720/1920x1080
- 23X Optical Zoom
- DWDR
- 3D intelligent positioning function
- Up to 150m IR distance
- Support Turbo HD and BNC output
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
DS-2AE5123TI/5223TI-A HD720P/1080P Turbo IR PTZ
PTZ Dome Camera | Function Description
System function:
- 1/3’’ high performance CMOS, up to 1280x720/1920x1080 resolution
- ±0.1° Preset Accuracy
- Self-adaptive to HIKVISION, Pelco-P/D protocol
- 3D intelligent positioning function
- Power-off memory function: restore PTZ & Lens status after reboot
- Built-in temperature sensor, with display of internal temperature
- Lightning protection, surge protection and voltage transient protection
- IP66 standard
- RS-485 communication diagnosis
- Scheduled PTZ movement
- UTC(Up the Coax) function
- CVBS output
Camera function: - Auto focus, auto white balance, backlight compensation and auto/manual day & night switch
- Privacy masks programmable
- 3D DNR, DWDR
PTZ function:
- 360° endless pan range and -15°-90° tilt range
- 400°/s Pan Preset Speed and 200°/s Tilt Preset Speed
- 0.1°-400°/s Manual Pan Speed and 0.1°-120°/s Manual Tilt Speed
- 256 presets programmable; preset image freezing capability
- 8 patrols, up to 32 presets per patrol
- 4 patterns, with the total recording time not less than 10 minutes
- Proportional zoom function
- Park action: auto call up of PTZ movement, after a defined time of inactivity
- IR function:
- 0 Lux minimum illumination
- Up to 150m IR distance
- IR light MTBF reaching up to 30,000 hours
- Smart IR mode
DS-2AE5123TI/5223TI-A HD720P/1080P Turbo IR PTZ
Dome Camera
|
Model |
DS-2AE5123TI-A |
DS-2AE5223TI-A |
|
Camera Module |
||
|
Image Sensor |
1/3’’ Progressive Scan CMOS |
|
|
Min. Illumination |
Color: 0.05Lux@(F1.4,AGC ON); B/W: 0.005Lux@(F1.4,AGC ON) |
|
|
Max. Image Resolution |
1280 × 720 |
1920 x 1080 |
|
Focal Length |
4-92.0mm, 23x |
|
|
Digital Zoom |
16X |
|
|
Zoom Speed |
Approx.3s(Optical Wide~Tele) |
|
|
Angle of View |
49-2.2 degree(Wide-Tele) |
|
|
Min. Working Distance |
10~1,000mm(Wide~Tele) |
|
|
Aperture Range |
F1.4~F3.5 |
|
|
Focus Mode |
Auto / Semiautomatic / Manual |
|
|
DWDR |
Support |
|
|
S / N Ratio |
≥ 50dB |
|
|
Shutter Time |
1-1/10,000s |
|
|
AGC |
Auto / Manual |
|
|
White Balance |
Auto / Manual / ATW / Indoor / Outdoor |
|
|
Day & Night |
IR Cut Filter |
|
|
Privacy Mask |
8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
|
|
Enhancement |
3D DNR |
|
|
Pan and Tilt |
||
|
Range |
Pan:360° endless; Tilt: -15°~90°(Auto Flip) |
|
|
Speed |
Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s |
|
|
Number of Preset |
256 |
|
|
Patrol |
8 patrols, up to 32 presets per patrol |
|
|
Park Action |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Panorama scan |
|
|
Scheduled Task |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Panorama scan |
|
|
RS-485 communication diagnosis |
Support |
|
|
Infrared |
||
|
IR Distance |
Up to 150m |
|
|
IR Intensity |
Automatically adjusted, depending on the zoom ratio |
|
|
Alarm |
||
|
Turbo HD Output |
1 turbo HD720P/1080P output, BNC |
|
|
CVBS Output |
1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC |
|
|
Alarm Input |
2 |
|
|
Alarm Output |
1 |
|
|
RS-485 Interface |
Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
|
|
UTC function |
HIKVISION_C |
|
|
General |
|
|
Menu Language |
English |
|
Power |
24VAC, Max. 24W (Heater On), Max. 18W(Heater Off) |
|
Working Temperature / Humidity |
-30 °C-65°C(-22°F-149°F) 90% or less |
|
Protection Level |
IP66 standard TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
Mounting |
Various mounting modes optional |
|
Dimensions |
Φ185×330mm (Φ7.28”×12.99”) |
|
Weight (approx.) |
4Kg (8.81Ibs) |
|
Mount Option (only suitable for outdoor dome) |
Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ |
Dome Camera
Accessories
- DS-1602ZJ DS-1602ZJ-Conner DS-1602ZJ-Pole DS-1602ZJ-Box
- Wall Mount Conner Mount Pole Mount Box Mount
- DS-1663ZJ DS-1661ZJ DS-1662ZJ DS-1619ZJ
- Celling mount Pendant mount Pendant mount Swan-neck Mount
- DS-1005KI
- USB Joy-stick
