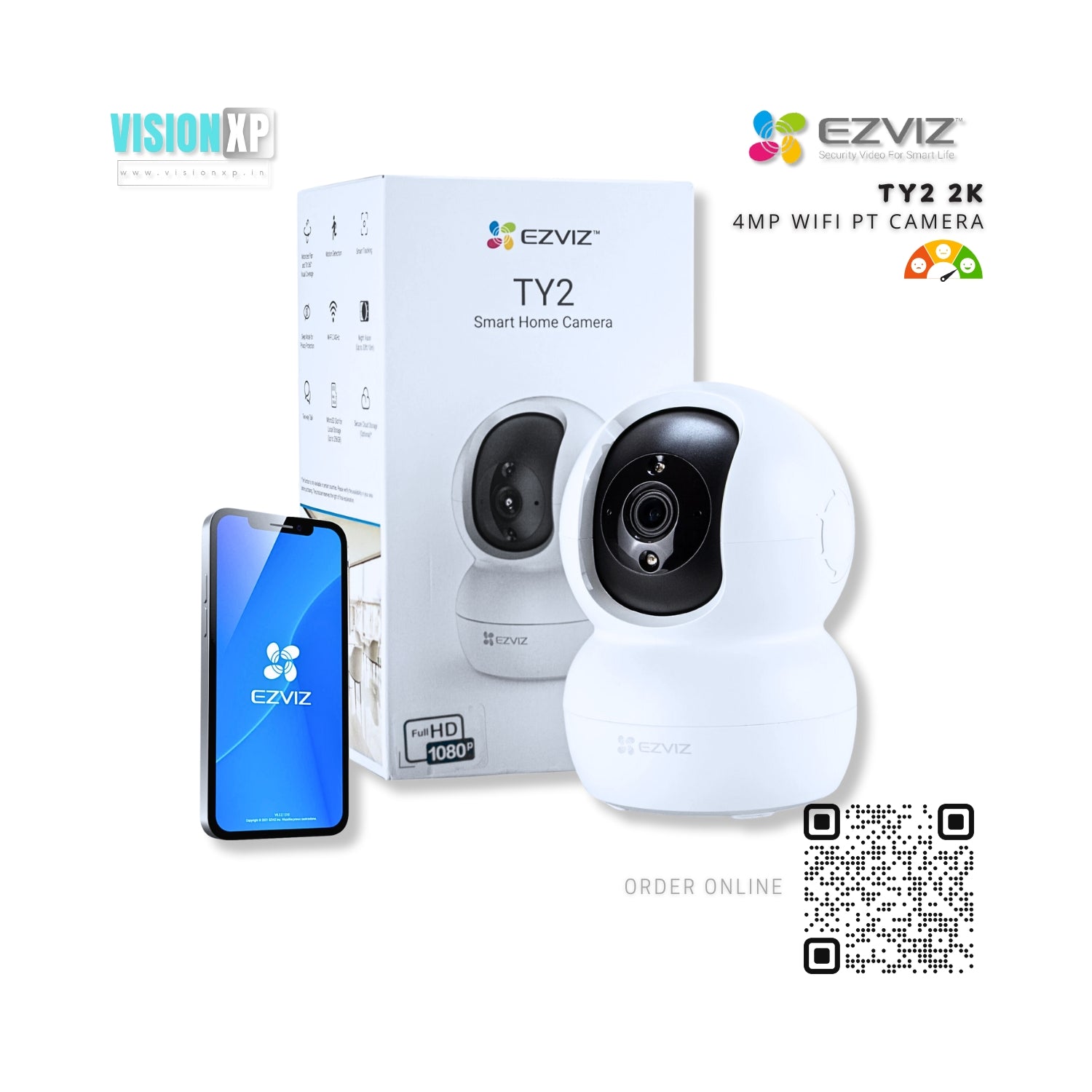

Ezviz TY2 Smart WiFi PT Home Camera

Zero blind spots.

• Keep tabs on every corner with just one TY2. Its expansive 360-degree field-of-view ensures full coverage, so you don’t miss a thing.

Smart tracking.

• When the camera detects a moving object, it is smart enough to automatically track the motion while alerting you with an image in real time.

Communication, anytime.

• Talk to your loved ones and deter unwelcome strangers – all by using the TY2’s two-way communication feature. Using the EZVIZ App on your mobile device, you can easily and conveniently enjoy communication wherever you might be.

See further in the dark.

• Enjoy round-the-clock protection with the TY2 camera. Using powerful Infrared LED lights, it lets you see up to 10 meters (33 feet) in dim light.

We protect your data and privacy.

• Protecting your data and privacy is our highest priority. Data transmission between the camera and the EZVIZ Cloud is encrypted from end to end. Only you have the keys to decrypt your data. To get an extra layer of privacy protection, you can always enable the camera’s sleep mode on the EZVIZ App.

Multiple Storage Solutions

• With multiple storage options, you can choose where to save your recordings. The TY2 camera can even save to all three locations at the same time for added backup in case the camera is damaged, or your network crashes.

Specifications Model CS-TY2-B0-1G2WF

Camera

• Image Sensor : F2.4@1/3" Progressive Scan CMOS
• Shutter Speed : Self-adaptive shutter
• Lens : 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical
• Lens Mount : M12
• Day & Night : IR-cut filter with auto-switching
• DNR : 3D DNR
• WDR : Digital WDR

Compression

• Video Compression : H.264
• Video Bit Rate : Adaptive bit rate.


• Max. Resolution : 1920 × 1080
• Frame Rate : Max:15fps; Self-Adaptive during network transmission

Network

• Smart Alarm : Motion detection
• Wi-Fi Pairing : AP pairing
• Protocol : EZVIZ Cloud proprietary protocol
• Interface Protocol : EZVIZ Cloud proprietary protocol

Interface

• Storage : MicroSD card slot (Max. 256GB)
• Power : Micro USB
• Wired Network : RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

• Standard : IEEE802.11b/g/n
• Frequency Range : 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth : Supports 20MHz
• Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Operating Environment

• Temperature : -10°C to 45°C (14°F to 113 °F)
• Humidity : 95% or less (non-condensing)

General

• Power Supply : DC 5V/1A
• Power Consumption : 5W max
• IR Range : MAX. 10 meters (32.81 Ft)
• Dimensions : 88 x 88 x 124 mm (3.46 x 3.46 x 4.88 inch)
• Packaging Dimensions. : 103 x 103 x 186 mm (4.06 x 4.06 x 7.32 inch)
• Net Weight : 255 g (8.99 oz)

In the box

• TY2 Pan/Tilt Camera
• Base
• Screw Kit
• Power Cable 3m (9.8 ft.)
• Drill Template
• Power Adapter
• Quick Start Guide

certificates

• FCC / UL / CE / WEEE / REACH / RoHS
