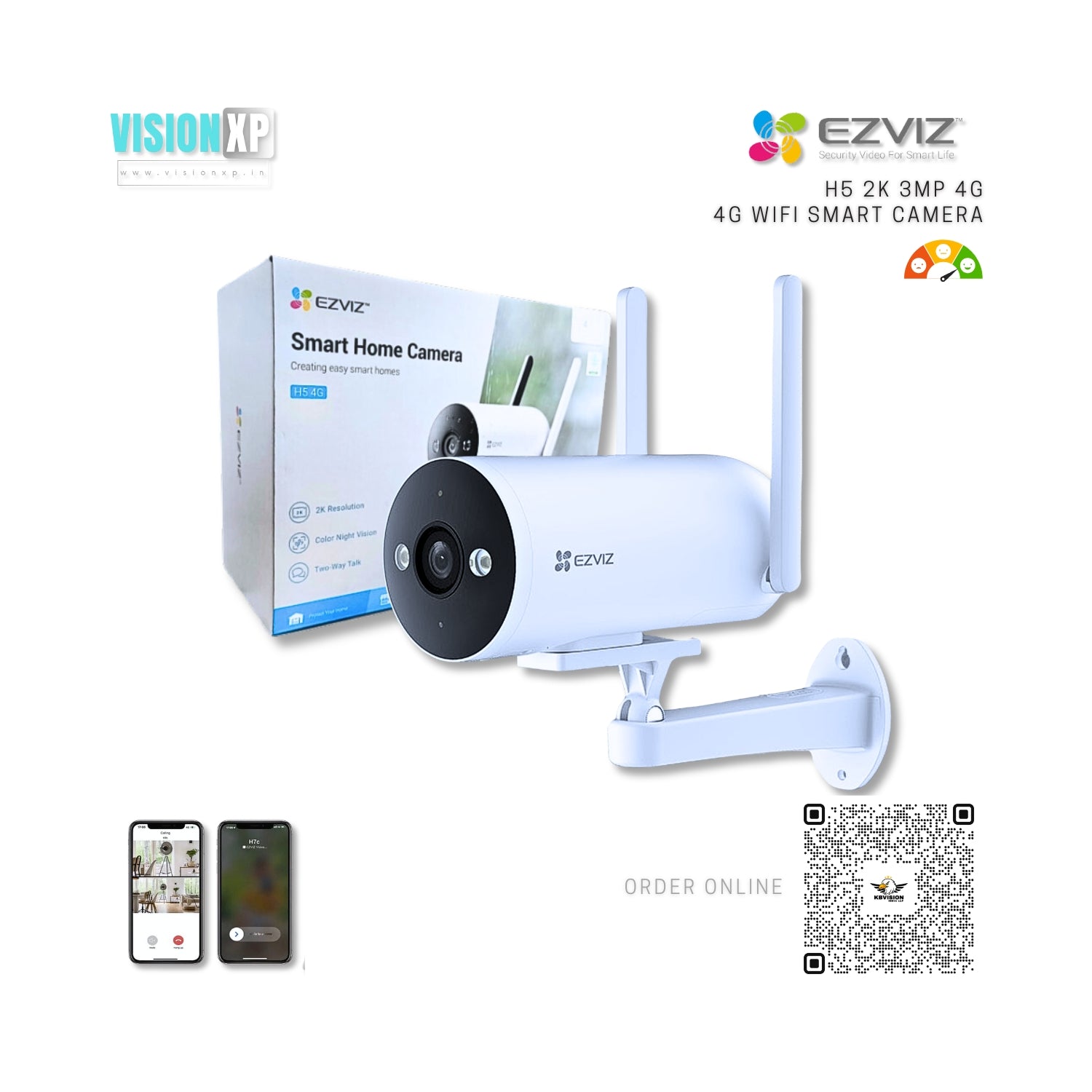

Ezviz H5 2K 3MP 4G Smart Outdoor Weatherproof Home Camera

No Wi-Fi? No Problem!

If you need an extra eye in places where the Wi-Fi is inaccessible or unstable, the H5 4G cellular camera is ready to save you from such problem. It uses a 4G SIM card to stay online, so it can be installed in much wider, varied locations. Or, you can still have it wired via the RJ45 Ethernet port.

Dual Connectivity Options

• 4G LTE with Nano SIM Card
• Cable Network with RJ45 Ethernet Port

See clearer, protect wider

• Vacation Homes
• Family Farms
• Warehouses
• Large Backyards
• Construction Sites

To meet the growing demands to well protect a wide variety of outdoor space, the H5 4G brings its vision to 2K so as to capture important moments down to the tiny details.

Advanced detection for enhanced peace-of-mind

• The on-device AI algorithm enables the camera to detect walking people and running vehicles, greatly reducing false alerts triggered by natural environments such as moving trees or insects. It promptly notifies you if a person enters your monitored area or a vehicle is parked there.
• AI-Powered Human / Vehicle Shape Detection
• Customizable Detection Zone
• No Subscription Fee

Adjustable sound and light alarm

• The camera offers an additional level of security with its active defense function. When it notices intruders, it triggers a powerful siren and flashes at them with two spotlights² to warn them on the spot. What's more, users can flexibly adjust the sound and light alarm settings to suit their preferences.

Designed to make protection last all night

• Impressive, far-reaching night vision The H5 4G camera ensures that no one sneaks in under the cover of darkness. It helps you see far enough to know what’s going on around your home.

Three useful night vision modes will suit any need

Full-color night vision

• With its F1.6 large-aperture lens and dual built-in spotlights, the H5 4G adds lights to video for improved clarity, resulting in vibrant and detailed color imaging for enhanced home security.

Black-and-white night vision

• If you don‘t want the lighting to disturb your neighbors, just go with the infrared night vision by changing on the EZVIZ App.

Smart night vision

• Or, let the camera decide. In smart mode, the camera will automatically light up the environment upon detection of human motion.

Built to withstand harsh weathers

• Designed for the outdoors, the camera maintains its performance even through rain, storm, and snow.

Communcation at anytime

• Simply use your smartphone to see, hear and talk to anyone who shows up at your property area.

Hands-free control

• With integration to your voice assistants, you can pull up the video feed by simply saying “Alexa” or “Hey Google.”3

H.265 video technology

• H.265 creates a smoother viewing experience while only using about 50% of the data storage space required by cameras with H.264.

Dual storage options

• Safely store important moments or cute memories on a large local storage card, or by subscribing to the EZVIZ CloudPlay.

• Please note that the H5 4G camera only operates with a 4G network and does not work with a Wi-Fi connection.
• The spotlight will not flash when Color Night Vision mode is enabled.
• Google Assistant is not available in certain languages.
• Data from EZVIZ Lab’s test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, as well as other environmental factors.
• Local storage cards must be purchased separately. The cloud storage service is only available in certain markets. Please verify availability before making a purchase.

Specifications CS-H5-R201-1H3KFL4GA

Camera

• Image Sensor : 1/2.8”Progressive Scan CMOS
• Shutter Speed : Self-adaptive shutter
• Lens : 4mm @ F1.6, view angle: 102°(Diagonal), 86° (Horizontal), 46° (Vertical) 6mm@ F1.6, view angle:62 (Diagonal), 52° (Horizontal), 28° (Vertical)
• Minimum Illumination : 0.01 lux @(F1.6 ,AGC ON) ,0 Lux with IR
• Lens Mount : M12
• Day / Night Switch : IR-Cut filter with auto-switching
• DNR : 3D DNR
• WDR : Digital WDR
• BLC : Supports
• IR Night Vision Distance : Up to 98 ft. / 30 m

Video & Audio

• Max Resolution : 2304 × 1296
• Frame Rate : Self-Adaptive during network transmission
• Video Compression : H.265 / H.264
• Video Bit Rate : Ultra-HD; HD; Standard. Adaptive bit rate.
• Audio Bit Rate : Self-Adaptive

Network

• Frequency Bands : IN LTE-FDD：B1/B3/B5/B8 IN LTE-TDD B34/B38/B39/B40/B41 EU LTE-FDD：B1/B3/B5/B7/B8/B20/B28 LA LTE-FDD：B2/B3/B4/B5/B7/B8/B28/B66
• Wired Network : RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Function

• Smart Alarm :AI-Powered Human / Vehicle Shape Detection
• Customized Alert Area : Supports
• Two-way Talk : Supports
• General Function : Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage

• Local Storage : Supports microSD Card (Up to 512 GB)
• Cloud Storage : Supports EZVIZ CloudPlay storage (Subscription required)

General

• Operating Conditions : -30°C to 50°C ( -22 °F to 122 °F )
• Humidity 95% or less (non-condensing)
• IP Grade : IP67
• Power Supply : DC 12V/1A
• Power Consumption : Max. 7W
• Dimensions : 183 × 93 × 75mm (7.20 × 3.66 × 2.95 inch)
• Packaging Dimensions : 256 × 197 × 118mm (10.08 × 7.76 × 4.65 inch)
• Weight : Net Weight: 482g With Package: 856g

In the box

• Camera
• Mounting Bracket
• Drilling Template
• Power Adapter
• Waterproof Kit
• Bracket Screw Kit
• Regulatory Information
• Quick Start Guide


Certifications

• CE / UL / WEEE / RoHS / REACH
