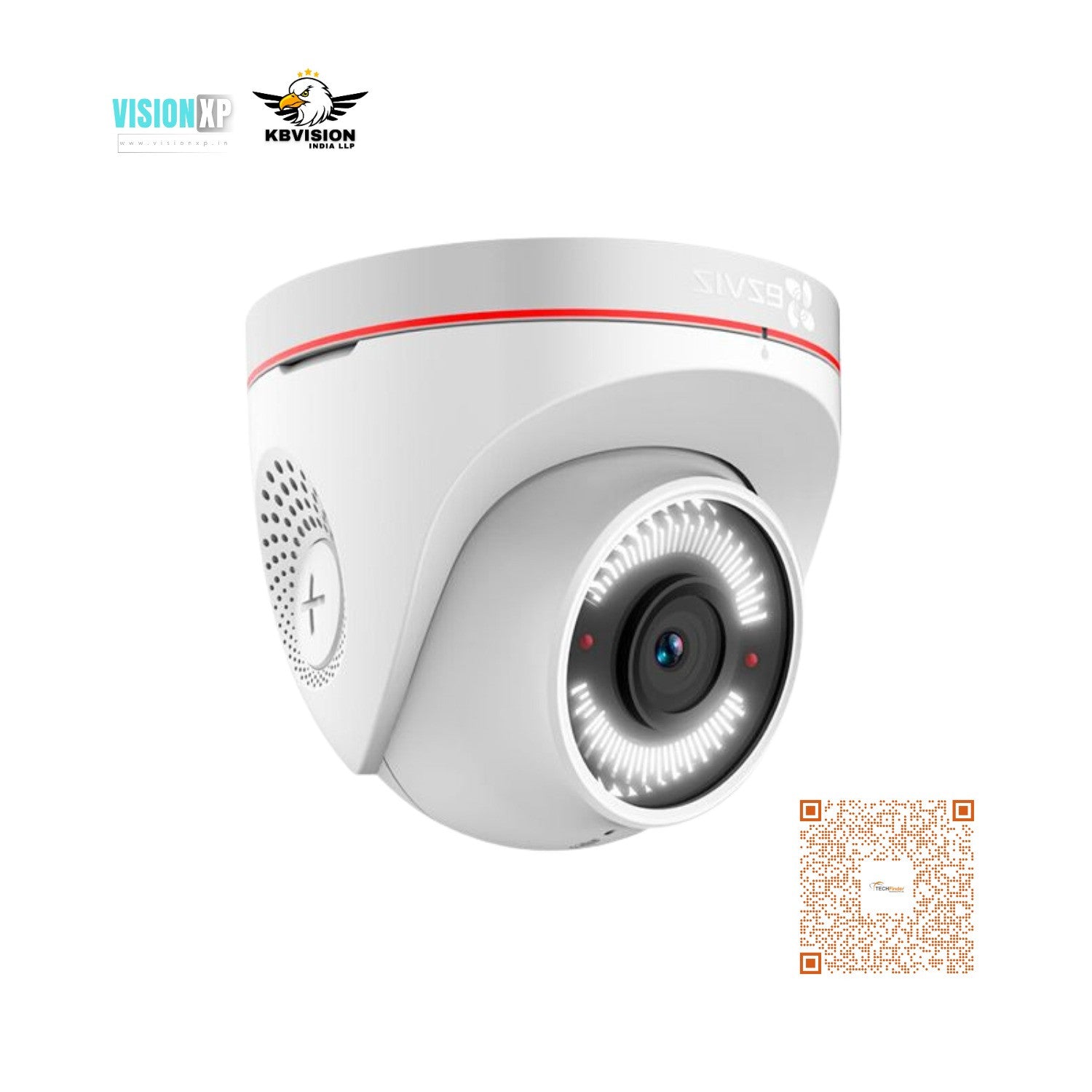

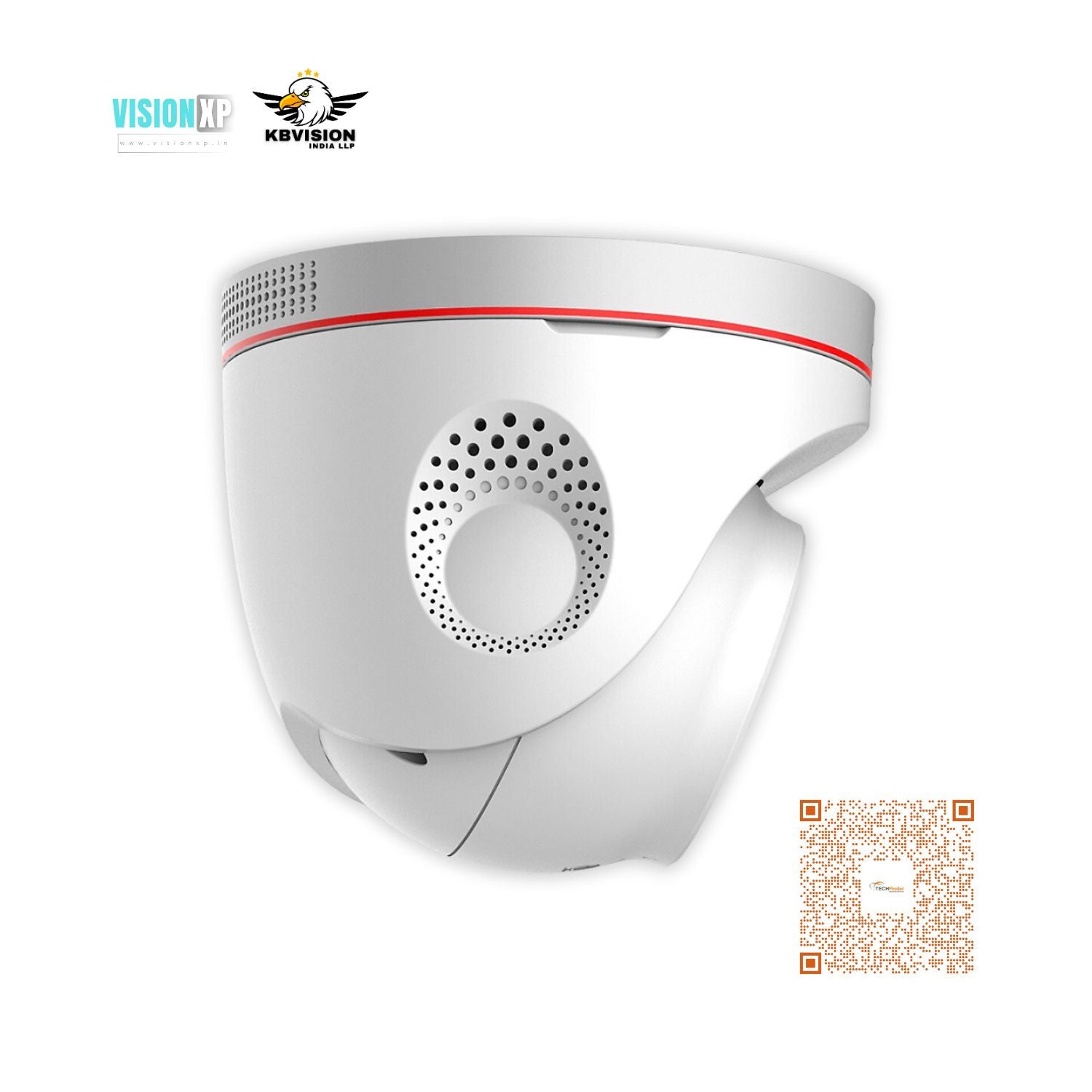

Ezviz C4W 1080p Guardian with Active Defense 2mp WiFi Camera

Ezviz C4W 1080p Outdoor Guardian with Active Defense 2mp WiFi Camera

• Active defense with light and sound.

When someone enters protected areas at specific times that you set, the C4W will flash a warning light and play a sound to drive
intruders away. Instantly, it pushes a notification to your smartphone, so you can view what's happened and take actions accordingly.

• Use your own voice to greet or deter visitors.

You may want to remind visitors in a gentle way that they’ve entered protected area. The C4W lets you create three 10-second audio recordings on the EZVIZ App so that you can protect your property in your own way.

• Customize motion detection zones.

The C4W camera lets you draw specific zones of interest on the EZVIZ App and adjust motion detection sensitivity to provide just the right amount of security you need.

• Full-HD security, day and night.

Featuring 1080p full-HD resolution, the C4W camera delivers crystal clear monitoring video all day. Plus, a super night vision system allows you to see image details up to 30 meters (98 feet) away in the dark.

• Save money on bandwidth and storage.

Using the latest H.265 video compression technology, the C4W renders clearer and smoother video while reducing both the need for bandwidth and data storage space such as microSD cards and the cloud.

• Dual antennas for enhanced connection.

Boasting wall-penetration and anti-interference capabilities, the C4W stays on-line better. It has two built-in antennas
to ensure a robust and reliable Wi-Fi connection.

• Braves all types of weather.

IP67 weatherproofing, dustproof design, and turret housing combine to deliver peace of mind – no matter what the weather is.

Specifications

Model No. : CS-CV228-A0-3C2WFR

Camera

• Image Sensor : 1/2.7" Progressive Scan CMOS
• Shutter Speed : Self-adaptive shutter
• Lens : 2.8mm, view angle: 103° horizontal, 118° diagonal 4mm, view angle: 87° horizontal, 104° diagonal
• Lens Mount : M12
• Day & Night : IR-cut filter with auto-switching
• DNR : 3D DNR
• WDR : Digital WDR

Compression

• Video Compression : H.265 / H.264
• Video Bit Rate : Ultra-HD; HD; Standard. Adaptive bit rate.


• Max. Resolution : 1920 × 1080
• Frame Rate : Max: 30fps; Self-adaptive during network transmission

Network

• Smart Alarm : Motion detection; Active sound and light alarm
• User Defined Alarm Tones : Supports
• Wi-Fi Pairing : AP Pairing
• Protocol : EZVIZ Cloud Proprietary Protocol
• Interface Protocol : EZVIZ Cloud Proprietary Protocol

Interface

• Storage : MicroSD card slot (Max. 256GB)
• Wired Network : RJ45 × 1(10M/100M Adaptive Ethernet Port)

Wi-Fi

• Standard : IEEE802.11 b/g/n
• Frequency Range : 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth : Supports 20MHz
• Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Transmission Rate : 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps

General

• Power Supply : DC 12V/1A
• Power Consumption : 6W max
• IR Range : Max. 30m (98.43 ft.)
• IP Grade : IP67
• Dimensions : Max Diameter: 105 mm (4.13”); Height: 95 mm (3.74”)
• Packaging Dimensions : 147 mm x 145 mm x 173 mm (5.79” x 5.71” x 6.81”)
• Bare Weight : 330g (0.73lb)

Operating Environment

• Temperature: -30oC to 60oC (-22°F to 140 °F) -
• Humidity: 95% or less (non-condensing)

Packaging Contents:

• C4W camera
• Power Adapter (1.5m / 4.9ft) - Drill Template
• Base
• Screw Kit
• Waterproof Kit
• Quick Start Guide

Certifications:

• UL / FCC / CE / WEEE / REACH / RoHS

Extra Information

• SKU: ezvizc4w
• Warranty: 2 Years
• Brand: Ezviz
• Megapixel: 2
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
