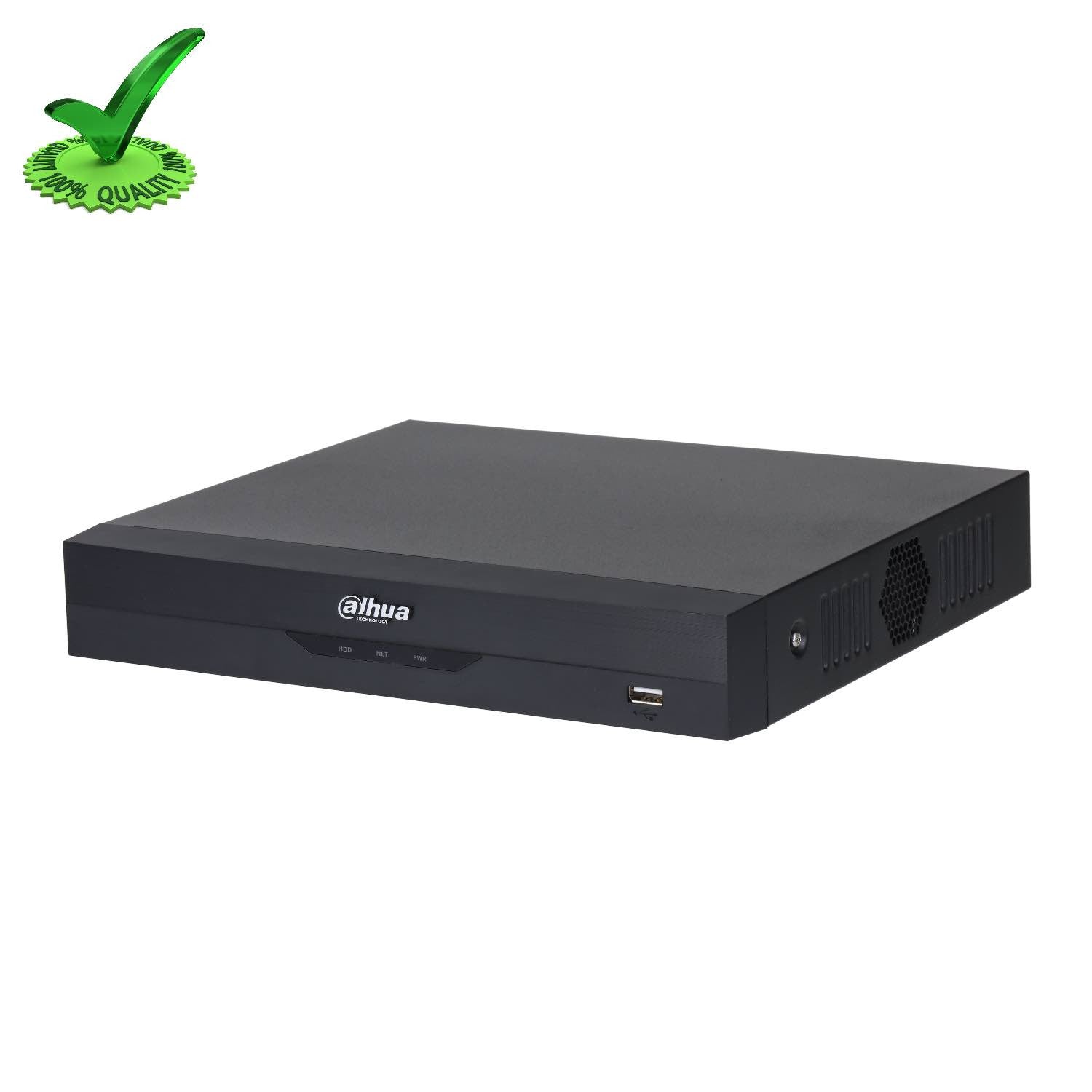

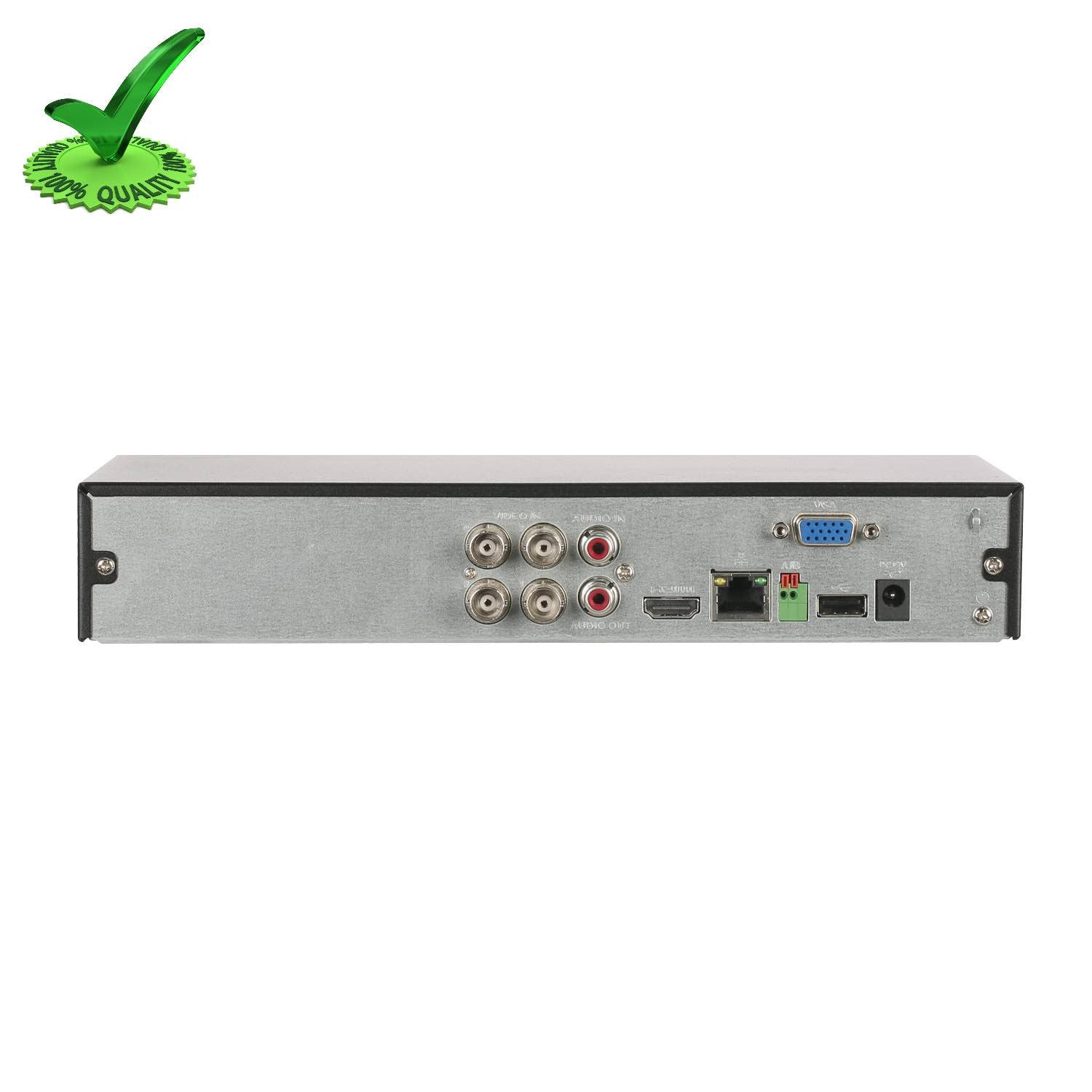

Dahua DH-XVR5104HS-4KL-I2 4Ch HD DVR

Functions

• Real Time Face Recognition
• Video stream real time face recognition. Facial attributes analysis
• features including gender, age, expression, glasses, moustache, mouth
• mask. Identify people and also capture, record faces with metadata.
• Facial feature filtering while real time display, only show faces with target
• features.
• *The Face Recognition is conflicted with SMD Plus and Perimeter Protection.

Perimeter Protection

• Automatically filtering out false alarms caused by animals, rustling
• leaves, bright lights, etc. Enables system to act secondary recognition for
• the targets. Improving alarm accuracy.

SMD Plus

• SMD Plus, referred to as Smart Motion Detection Plus, which is an
• upgrading version of SMD that greatly improves the alarm accuracy by
• loading deep-learning algorithm. It analyzes person and vehicle shapes
• based on motion detection and send alarms only when person and
• vehicle intrudes.

AI Coding

• Compared with H.265, AI codec can reduce up to 50% bit rate and
• storage requirements while have no loss of decoding compatibility,
• providing clear human and vehicle details.

Smart H.265+

• Smart Codec, H.265+ can reduce up to 90% bit rate and storage
• requirements compared with H.264 without having to invest in new
• cameras.
• HDCVI/AHD/TVI/CVBS Auto-detect
• The XVR can auto recognize the signal of front-camera without any
• setting. It makes operation more friendly and convenient.

High Definition Camera Input

• The XVR supports up to 4K HDCVI camera and 8MP IP camera input.

Coaxial Audio/Upgrade/Alarm

• The integrated design can reduce wiring troubles which makes it much
• more cost-effective and convenient for installation.

Long Distance Transmission

• The HDCVI system supports long distance transmission over coaxial cable
• and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.

AI Search

• Extract and classify person and vehicles from massive video data, easy
• for end users to trace historical informaton and analyze. Person & Vehicle
• optional for playback to achieve quick target search, saving event retrieval time.

Technical Specification

System

• Main Processor : Embedded Processor
• Operating System : Embedded LINUX

Perimeter Protection

• Performance : 2 channels, 10 IVS for each channel
• Object classification : Human/Vehicle secondary recognition for tripwire and intrusion
• AI Search : Search by target classification (Human, Vehicle)

Face Recognition

• Performance : Max 8 face pictures/sec processing 2 channels video stream face recognition, only support analog camera
• Stranger Mode : Detect strangers' faces (not in device's face database). Similarity threshold can be set manually.
• AI Search : Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
• Database Management : Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries&regions and state can be added to each face picture.
• Database Application : Each database can be applied to video channels independently .
• Trigger Events : Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

SMD Plus

• Performance 4 channels
• AI Search Search by target classification (Human, Vehicle)
• Video and Audio
• Analog Camera Input 4 channels, BNC
• HDCVI Camera Input 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps,
• 720P@25/30fps
• AHD Camera Input 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
• TVI Camera Input 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
• CVBS Camera Input PAL/NTSC
• IP Camera Input 4+4 channels, each channel up to 8MP
• Audio In/Out 1/1, RCA
• Two-way Talk Reuse audio in/out, RCA
• Recording
• Compression AI Coding/H.265+/H.265/H.264+/H.264
• Resolution 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P,
• 960H, D1, CIF
• Record Rate
• Main stream: All channel 4K(1fps–7fps); 6MP(1fps–
• 10fps); 5MP(1fps–12fps); 4K-N, 4MP/3MP(1fps–15fps);
• 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30fps);
• Sub steram:960H(1fps–15fps);
• D1/CIF(1fps–25/30fps)
• Bit Rate 32 Kbps–6144 Kbps Per Channel
• Record Mode
• Manual, Schedule (General, Continuous), MD (Video
• detection: Motion Detection, Video Loss, Tampering),
• Alarm, Stop
• Record Interval 1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Postrecord: 10 s–300 s
• Audio Compression G.711A, G.711U, PCM
• Audio Sample Rate 8 KHz, 16 bit Per Channel
• Audio Bit Rate 64 Kbps Per Channel

Display

• Interface 1 HDMI ,1 VGA
• Resolution
• HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×
• 720
• VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• Multi-screen Display When IP extension mode not enabled: 1/4
• When IP extension mode enabled: 1/4/8/9
• OSD Camera title, Time, Video loss, Camera lock, Motion
• detection, Recording

Network

• Interface 1 RJ-45 Port (100 MB)
• Network Function
• HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP,
• UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,
• PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports
• Dahua IP camera, DVR, NVS, etc.)
• Max. User Access 128 users
• Smart Phone iPhone, iPad, Android
• Interoperability ONVIF 16.12, CGI Conformant

Video Detection and Alarm

• Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,
• Buzzer and Screen Tips
• Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss,
• Tampering and Diagnosis
• Alarm input N/A
• Relay Output N/A
• Playback and Backup
• Playback 1/4
• Search Mode Time /Date, Alarm, MD and Exact Search (accurate to
• second)

Playback Function

• Play, Pause, Stop, Rewind, Fast play, Slow Play, Next
• File, Previous File, Next Camera, Previous Camera, Full
• Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
• Backup Mode USB Device/Network
• Storage
• Internal HDD 1 SATA Port, up to 10TB capacity
• eSATA N/A

Auxiliary Interface

• USB 2 USB Ports (USB 2.0)
• RS485 1 Port, for PTZ Control
• RS232 N/A

Electrical

• Power Supply DC 12V/2A
• Power Consumption
• (Without HDD) <7W
• Construction Panels
• Dimensions Compact 1U, 260 mm × 238 mm × 48 mm
• (10.24'' × 9.34'' × 1.87'')
• Net Weight
• (without HDD) 1.1 kg (2.5 lb)
• Gross Weight 1.5 kg (3.3 lb)
• Installation Desktop installation

Environmental

• Operating Conditions -10°C to +55°C (+14°F to +131°F), 0–90% RH
• Storage Conditions -20°C to +70°C (-4°F to +158°F) , 0–90% RH
• Third-party Support
• Third-party Support
• Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP
• Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,
• Sanyo, Sony, Videotec, Vivotek, and more
• Certifications
• Certifications
• FCC: Part 15 Subpart B
• CE: CE-LVD: EN 60950-1/IEC 60950-1
• CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN
• 50130, EN 55024

Extra Information

• SKU: DHXVR5104HS4KLI2
• Warranty: 2 Years
• Brand: Dahua
• Technology: Analogue
• Product Type: DVR/XVR
• PDF: View PDF
