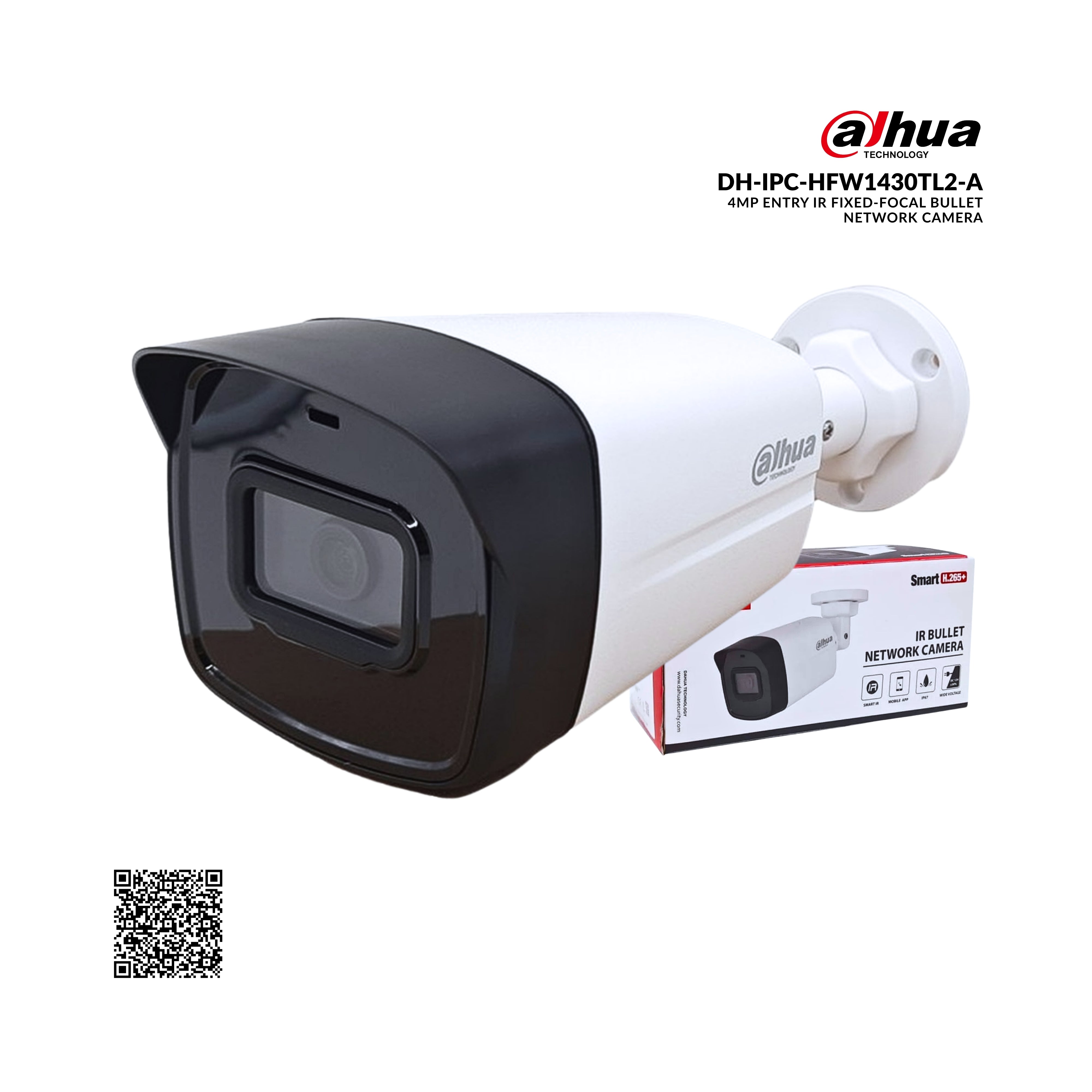

Dahua DH-IPC-HFW1430TL2-A 4MP Entry IR Fixed-focal Bullet Network Camera
Key Features
- 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2560 × 1440)@30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED, and the max. illumination distance is 30 m.
- DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Built in Mic.
- 12 VDC power supply, easy for installation.
- IP67 protection.
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Series Overview
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/ residences, small-sized retail stores, and other small and medium-sized enterprises.
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Smart Illumination
Dahua Smart Illumination technology can display image in the environment of low illuminance or completely dark environment. According to the distance of the targets, the camera adjusts Illuminations intensity automatically to display the details of the moving target.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarm or records.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
|
Technical Specification |
Camera
|
Image Sensor |
1/3" CMOS |
|
Max. Resolution |
2560 (H) × 1440 (V) |
|
ROM |
16 MB |
|
RAM |
64 MB |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
Min. Illumination |
0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W,30 IRE) 0 lux (Illuminator on) |
|
S/N Ratio |
>56 dB |
|
Illumination Distance |
Up to 30 m (98.43 ft) (IR LED) |
|
Illuminator On/Off Control |
Auto;Manual |
|
Illuminator Number |
2 (IR LED) |
|
Angle Adjustment |
Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
Lens
|
Lens Type |
Fixed-focal |
|||
|
Lens Mount |
M12 |
|||
|
Focal Length |
3.6 mm |
|||
|
Max. Aperture |
F2.0 |
|||
|
Field of View |
H: 76°; V: 40°; D: 92° |
|||
|
Iris Control |
Fixed |
|||
|
Close Focus Distance |
1.4 m (4.59 ft) |
|||
|
DORI Distance |
Detect |
Observe |
Recognize |
Identify |
|
85.2 m (279.53 ft) |
34.1 m (111.88 ft) |
17.0 m ( 55.77 ft) |
8.5 m (27.89 ft) |
|
|
Video Compression |
H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
|
Smart Codec |
Smart H.265+; Smart H.264+ |
|
Video Frame Rate |
Main stream: 2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|
Stream Capability |
2 streams |
|
Resolution |
4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|
Bit Rate Control |
CBR/VBR |
|
Video Bit Rate |
H.264: 32 kbps–4096 kbps H.265: 12 kbps–4096 kbps |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
BLC |
Yes |
Video
|
HLC |
Yes |
|
WDR |
DWDR |
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
|
Gain Control |
Auto |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Region of Interest (RoI) |
Yes (4 areas) |
|
Smart Illumination |
Yes |
|
Image Rotation |
0°/180° |
|
Mirror |
Yes |
|
Privacy Masking |
4 areas |
Audio
|
Built-in MIC |
Yes, built-in Mic |
|
Audio Compression |
G.711a; G.711Mu; G.726; PCM |
Alarm
|
Alarm Event |
Network disconnection; IP conflict; illegal access; motion detection; audio detection; video tampering; security exception |
Network
|
Network Port |
RJ-45 (10/100 Base-T) |
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; P2P |
|
Interoperability |
ONVIF (Profile S; Profile T); CGI |
|
User/Host |
6 (Total bandwidth: 24 M) |
|
Storage |
FTP |
|
Browser |
IE; Chrome; Firefox |
|
Mobile Client |
iOS;Android |
|
Cyber Security |
Configuration encryption;Trusted execution;Digest;Security logs;HTTPS;Trusted upgrade;WSSE;Trusted boot;Account lockout;Generation and importing of X.509 certification;Video encryption |
Power
|
Power Supply |
12 VDC/PoE |
|
Power Consumption |
Basic: 1.4 W (12 VDC); 2.1 W (PoE) Max. (ICR switch+illuminator intensity): 3.0 W (12 VDC); 4.2 W (PoE) |
Environment
|
Operating Temperature |
–40 °C to +50 °C (–40 °F to +122 °F) |
|
Operating Humidity |
≤95% |
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Storage Humidity |
≤95% |
|
Protection |
IP67 |
