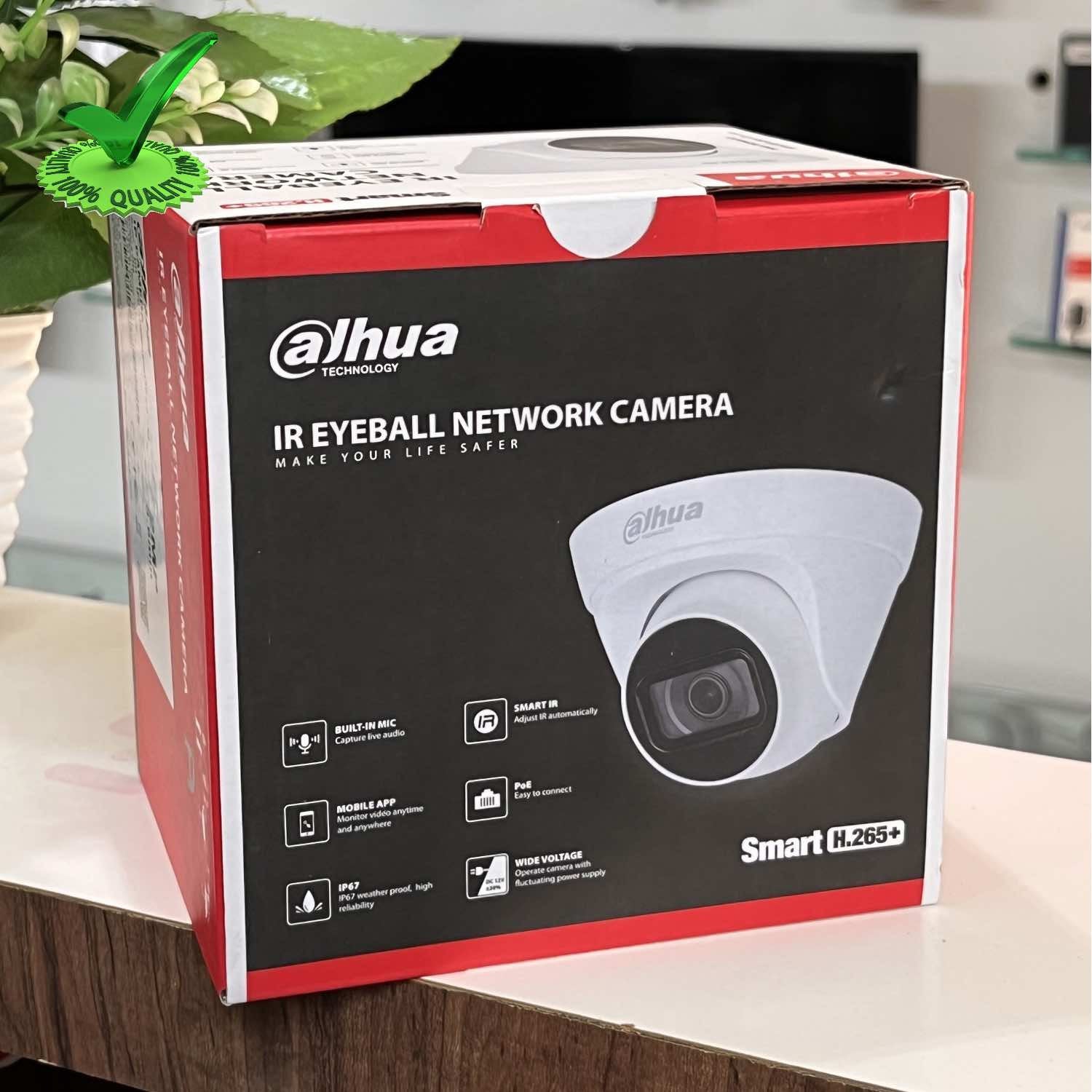

Dahua DH-IPC-HDW1230T1P-A-S4 2MP IP Audio Dome Camera

Dahua 2 MP Entry IR Fixed-focal Eyeball Inbuilt Microphone Network Camera

Series Overview

With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.

Functions

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Smart Illumination

Dahua Smart Illumination technology can display image in the environment of low illuminance or completely dark environment. According to the distance of the targets, the camera adjusts Illuminations intensity automatically to display the details of the moving target.

Motion Detection

When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarm or records.

Cyber Security

Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.

Protection (IP67, Wide Voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.



Entry Series | DH-IPC-HDW1230T1-A-S4

Technical Specification

Camera

• Image Sensor : 1/2.8" CMOS
• Max. Resolution : 1920 (H) × 1080 (V)
• ROM : 16 MB
• RAM : 64 MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination : 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)
• S/N Ratio : > 56 dB
• Illumination Distance : 30 m (98.43 ft) (IR)
• Illuminator On/Off Control : Auto; manual
• Illuminator Number : 1 (IR LED)
• Pan/Tilt/Rotation Range : Pan: 0°–355°
• Tilt: 0°–78° Rotation: 0°–355°

Lens

• Lens Type : Fixed-focal
• Lens Mount : M12
• Focal Length : 2.8 mm; 3.6 mm
• Max. Aperture : 2.8 mm: F2.0 , 3.6 mm: F2.0
• Field of View : 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120°
• Iris Control : Fixed
• Close Focus Distance : 2.8 mm: 0.5 m (1.64 ft)

Video

• Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
• Smart Codec : Smart H.265+; Smart H.264+
• Video Frame Rate : Main stream:1920 × 1080@1–25/30 fps Sub stream: 704 × 576@1–25 fps 704 × 480@1–30 fps *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Stream Capability : 2 streams
• Resolution : 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 ×576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
• Day/Night : Auto (ICR)/Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : DWDR
• White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control : Auto; manual
• Noise Reduction : 3D NR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Region of Interest (RoI) : Yes (4 areas)
• Smart Illumination : Yes
• Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
• Mirror : Yes
• Privacy Masking : 4 areas

Audio

• Built-in MIC : Yes
• Audio Compression : G.711A; G.711Mu; G.726

Alarm

• Alarm Event : Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception

Network

• Network Port : RJ-45 (10/100 Base-T)
• SDK and API : Yes
• Cyber Security : Configuration encryption;Trusted execution;Digest;Security logs;Trusted upgrade;WSSE;Trusted boot;Account lockout;Generation and importing of X.509 certification;Video encryption
• Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
• Interoperability : ONVIF (Profile S); CGI; P2P; Genetec
• User/Host : 6 (Total bandwidth: 36 M)
• Storage : FTP
• Browser : IE, Chrome, Firefox
• Management Software : Smart PSS; DSS; DMSS
• Mobile Client : Mobile Client

Certification

• Certifications : CE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Power

• Power Supply : 12 VDC/PoE (802.3af)
• Power Consumption : 2w

Environment

• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : ≤ 95%
• Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Protection : IP67

Structure

• Casing : Metal + Plastic
• Product Dimensions : 85.5 mm × Φ109 mm (3.4" × Φ4.3")
• Net Weight : 0.24 kg (0.5 lb)
• Gross Weight : 0.37 kg (0.8 lb)

Extra Information

• SKU: DHIPCHDW1230T1PAS4
• Warranty: 2 Years
• Brand: Dahua
• Megapixel: 2
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
