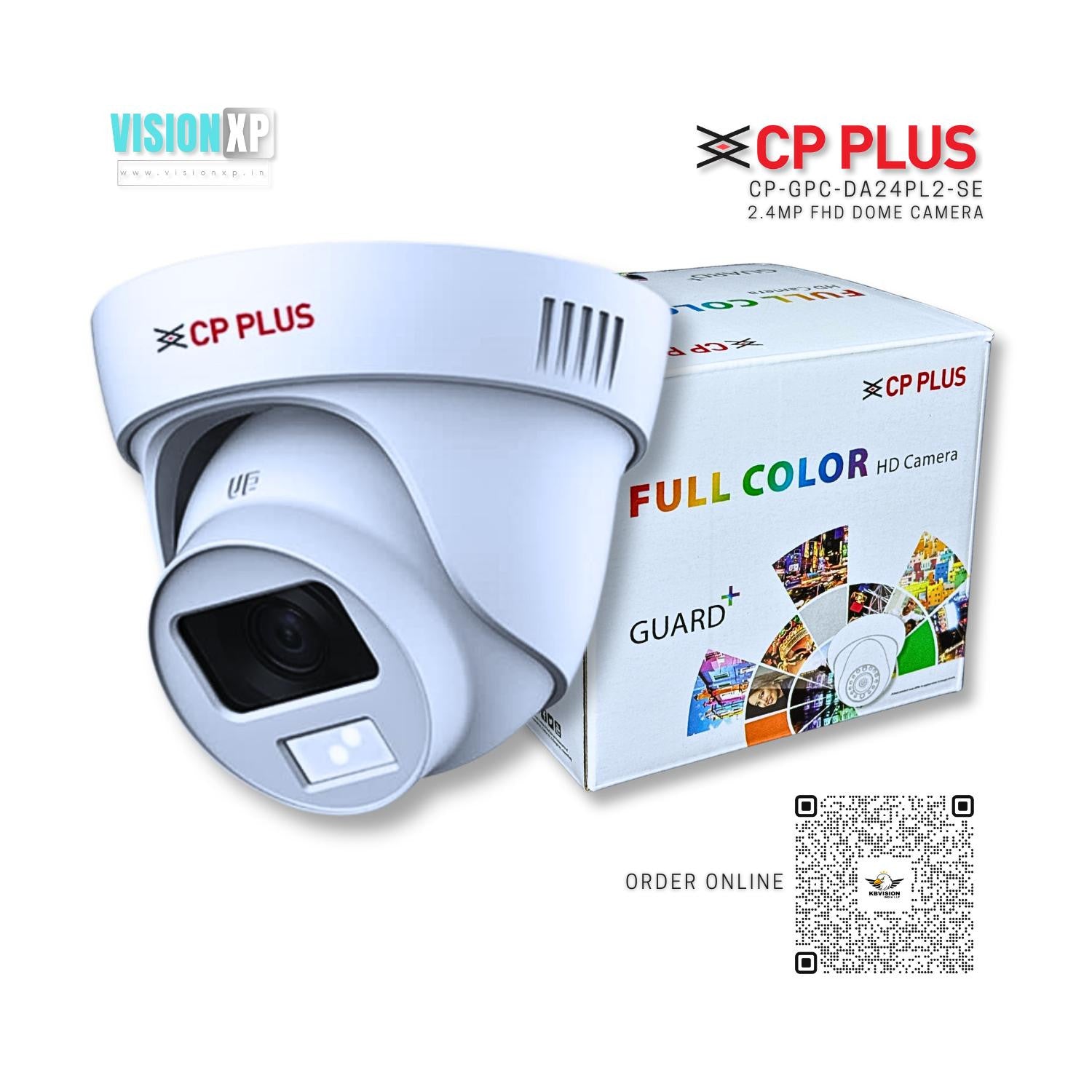

CP Plus CP-GPC-DA24PL2-SE 2.4mp Full Colour Guard+ Dome Camera Lowest Price Buy Online Store

About CP PLUS

The brand that is on its way to lead the world when it comes to the security and surveillance industry, CP PLUS, keeps bombarding the market with the most reliable range of products that have been designed carefully and methodically to automate the whole surveillance and security process, no matter how big your premises are. It was the initiative to help the public in the area where they are the most vulnerable and to empower the sense of safety in our hearts that had conceptualized CP PLUS. And embarking on its mission to make the world a safer and more secure place has taken the brand's journey to unprecedented levels even when compared to international competitors.

System Overview

• With the help of the new Guard+ Series of Cameras by CP PLUS, surveillance at night has substantially been made easier as vividly colorful images can be captured even in a completely dark scene. The lead-ing part in this highly efficient surveillance solution is played by the 2.4MP Full-Color Cameras that show the detailing in the varied colors of the object in the scene even during night time.

Functions

Full Color

• The Full-Color technology that has been ingrained in this camera lets you enjoy an image in full-color even during night time as this technology automatically illuminates the image with the accurate detailing of colors from the scene.

Illumination Distance

• Numerous crystal Illumination provide detailed images even in very low light conditions. These Illumination adjust the infrared intensity for distinct images in dark environments for up to 20mtrs.

UNI+ technology

• CP PLUS Analog HD cameras offer compatibility across all the available technologies - CVBS, TVI, HDCVI, AHD and HDx, making upgrading simple and hassle-free.

Power protection

• With a voltage tolerance range of ±30, these cameras are suitable even in fluctuating power conditions.

Plug & Play

• CP PLUS Guard+ cameras are simple to configure and install.

Feature Specification

• Image Sensor : 1/2.8” 2.4MP CMOS (0.9407 centimetres)
• Minimum Illumination : 0.01Lux/F1.6, 0Lux white light on
• Shutter Speed : PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
• White Balance : Auto/Manual
• Lens : 3.6mm (2.8mm Optional)
• Lens Type : Fixed-focal
• Mount Type : M12
• Max Aperture : F1.6
• Iris Type : Fixed
• S/N Ratio : >65dB
• Close Focus Distance : 2.8mm: 0.6m ; 3.6mm: 1.2m
• DORI Distance : 2.8mm: 38.6m (Detect) 15.4m (Observe) 7.7m (Recognize) 3.9mm (Identify) 3.6mm: 55.2m (Detect) 22.1m (Observe) 11.0m (Recognize) 5.5mm (Identify)
• Noise Reduction : 2D-NR
• Gain Control : (AGC) : Auto/Manual
• Back Light Compensation:  BLC/ DWDR
• Angle of View : 2.8mm: 126.2° × 106° × 56.5° (diagonal × horizontal × vertical) 3.6mm: 103.6° × 86.9° × 46.3° (diagonal × horizontal × vertical)
• White Balance : Auto/ Manual
• Video Streaming :  CVI: PAL: 1080P@25fps; 720P@25fps; NTSC: 1080P@30fps; 720P@30fps; AHD: PAL: 1080P@25fps; NTSC: 1080P@30fps TVI: PAL: 1080P@25fps; NTSC: 1080P@30fps; CVBS: PAL: 960H; NTSC: 960H
• Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
• Illumination : Illumination Distance of 20 Mtr.
• Smart Light : Yes
• Mirror : Off/On
• Privacy Masking : Off/On (8 area, rectangle)
• Power Source : 12V DC ±30%
• Power Consumption : Max 3.0W (12V DC, White Light on)
• Operating Temperature : -40°C ~ +60°C (-40°F to 140°F) / Less than <95% RH (non-condensation)
• Storage Temperature : -40°C ~ +60°C (-40°F to 140°F) / Less than <95% RH (non-condensation)
• Weatherproof Standard : IP67
• Casing : Inner core: metal + plastic ; Cover: plastic ; Pedestal: plastic
• Dimension : φ97.1 mm × 91.4 mm (φ3.82" × 3.6")
• Weight : 0.21kg

Extra Information

• SKU: CPGPCDA24PL2SE
• Warranty: 1 Year
• Brand: CP Plus
• Megapixel: 2.4
• Technology: Analogue
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
