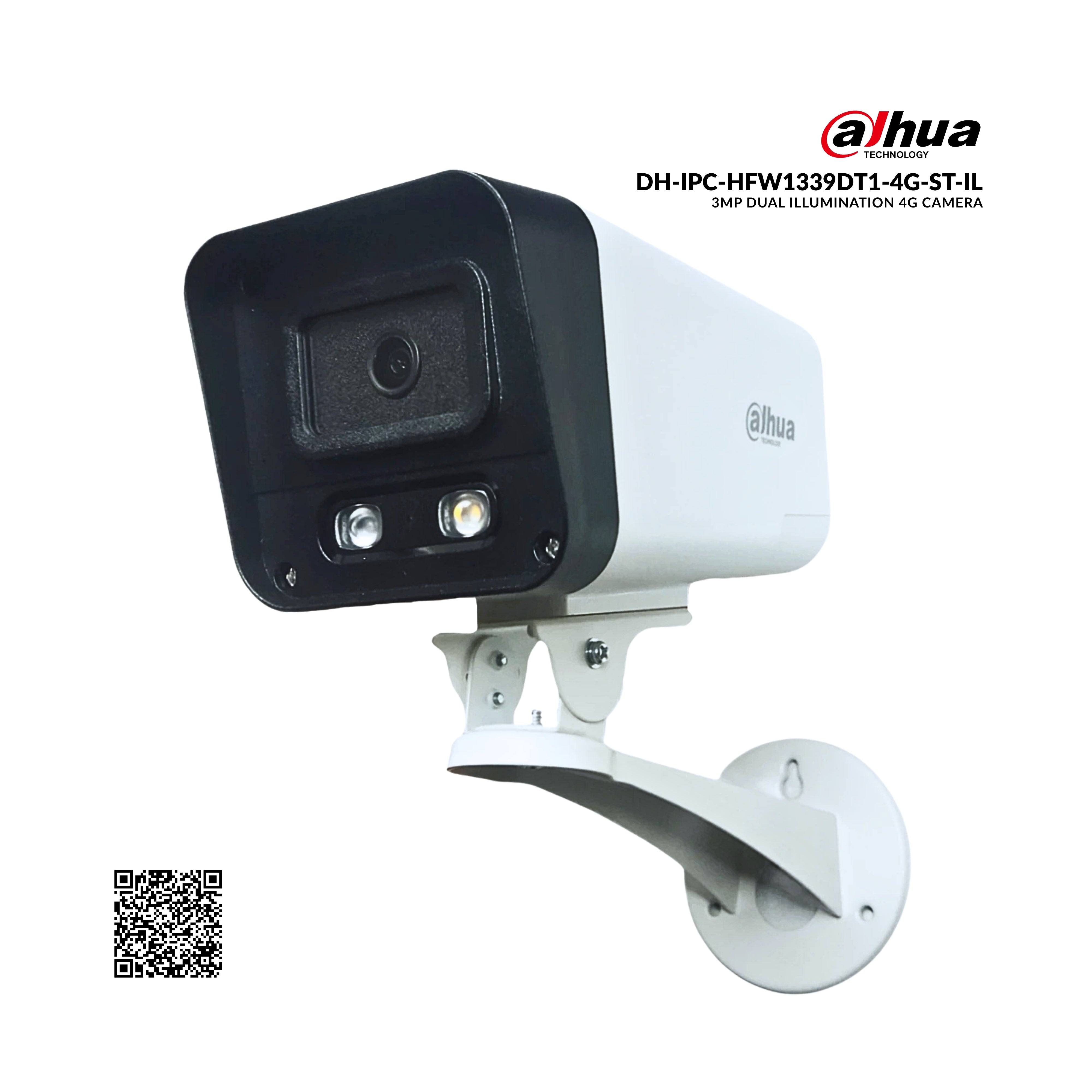

Dahua DH-IPC-HFW1339DT1-4G-ST-IL 3MP Dual Illumination 4G Camera
DH-IPC-HFW1339DT1-4G-ST-IL
- 3MP Entry Dual Illumination Fixed-focal 4G Bullet Network Camera
- 3-MP 1/3.2" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 3 MP (2304 × 1296)@25 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED and warm light, and the max. IR illumination distance is 30 m, the max. warm light distance is 20 m.
- DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Supports max. 256 G Micro SD card; built-in Mic; built-in speaker
- 12 VDC power supply, easy for installation.
- IP67 protection.
- Supports 4G.
- Motion detection
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Technical Specification
Camera
|
Image Sensor |
1/3.2" CMOS |
||||
|
Max. Resolution |
2304 (H) × 1296 (V) |
||||
|
ROM |
16 MB |
||||
|
RAM |
64 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||
|
Min. Illumination |
0.025 lux@F2.0 (Color, 30 IRE); 0.0025 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on) |
||||
|
S/N Ratio |
>56 dB |
||||
|
Illumination Distance |
Up to 30 m (98.43 ft) (IR LED); Up to 20 m (65.62 ft) (Warm Light); |
||||
|
Illuminator On/Off Control |
Auto |
||||
|
Illuminator Number |
1 (IR LED); 1 (Warm light) |
||||
|
Lens |
|
||||
|
Lens Type |
Fixed-focal |
||||
|
Lens Mount |
M12 |
||||
|
Focal Length |
2.8 mm;3.6 mm |
||||
|
Max. Aperture |
F2.0 |
||||
|
Field of View |
H: 100°; V: 55°; D: 117°;H: 82°; V: 44°; D: 95° |
||||
|
Iris Control |
Fixed |
||||
|
Close Focus Distance |
0.8 m (2.62 ft);0.5 m (1.64 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.8 mm |
44.4 m (144.67 ft) |
17.8 m (58.40 ft) |
8.9 m (29.20 ft) |
4.4 m (14.44 ft) |
|
|
3.6 mm |
55.5 m (182.09 ft) |
22.2 m (72.84 ft) |
11.1 m (36.42 ft) |
5.6 m (18.37 ft) |
|
|
Video |
|
||||
|
Video Compression |
H.265; H.264H; H.264B; H.264 |
||||
|
Smart Codec |
Smart H.265+; Smart H.264+ |
||||
|
Video Frame Rate |
Main stream: 2304 × 1296@25 fps; sub stream: 640 × 480@30 fps |
||||
|
Stream Capability |
2 streams |
||||
|
Resolution |
3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); VGA (640 × 480) |
||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Video Bit Rate |
H.264: 192 kbps–4096 kbps; H.265: 80 kbps–4096 kbps |
||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||
|
BLC |
Yes |
||||
|
HLC |
Yes |
||||
|
WDR |
DWDR |
||||
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
|
Gain Control |
Auto;Manual |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Region of Interest (RoI) |
Yes (4 areas) |
|
Smart Illumination |
Yes |
|
Image Rotation |
0°/180° |
|
Mirror |
Yes |
|
Privacy Masking |
Yes |
|
Audio |
|
|
Built-in MIC |
Yes, built-in Mic |
|
Built-in Speaker |
Yes, built-in speaker |
|
Audio Compression |
G.711a; G.711Mu; PCM |
|
Alarm |
|
|
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; security exception |
|
Network |
|
|
Network Port |
RJ-45 (10/100 Base-T) |
|
Carrier Network System |
4G: LTE-FDD: B1/B3/B5/B8; LTE-TDD: B34/B38/B39/B40/B41; Applicable country: India; |
|
SDK and API |
Yes |
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; DHCP; DNS; NTP; Multicast; ICMP; IGMP; NFS |
|
Interoperability |
ONVIF (Profile S & Profile G & Profile T); CGI |
|
User/Host |
20 (Total bandwidth: 48 M) |
|
Storage |
Micro SD card (support max. 256 GB) |
|
Browser |
IE; Chrome; Firefox |
|
Management Software |
Smart PSS Lite; DSS; DMSS |
|
Mobile Client |
iOS;Android |
|
Cyber Security |
Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Firmware encryption;Generation and importing of X.509 certification |
|
Certification |
|
|
Certifications |
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU |
|
Power |
|
|
Power Supply |
12 VDC |
|
Power Consumption |
Basic: 1.8 W (12 VDC); Max. (H.265+warm light on): 4.5 W (12 VDC) |
|
Environment |
|
|
Operating Temperature |
–20 °C to +50 °C (–4 °F to +122 °F) |
|
Operating Humidity |
≤95% |
|
Storage Temperature |
–30 °C to +70 °C (–22 °F to +158 °F) |
|
Storage Humidity |
≤95% |
|
Protection |
IP67 |
|
Structure |
|
|
Casing Material |
Plastic |
|
Product Dimensions |
158.6 mm × 88.0 mm × 85.5 mm (6.24" × 3.46" × 3.37") (L × W × H) |
|
Net Weight |
297.5 g (0.66 lb) |
|
Gross Weight |
620 g (1.36 lb) |
Series Overview
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/ residences, small-sized retail stores, and other small and medium-sized enterprises.
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarm or records.
Day/Night
Dahua Day/Night function provides color image when illumination is adequate; when illuminance is inadequate, it switches night mode and provides white and black image. It can guarantee that the network camera can work normally when illuminance changes.
Two-way Talk
With its built-in high-sensitivity microphone and high-power speaker, the camera realizes two-way talk through the mobile app.
Smart Illumination
Dahua Smart Illumination technology can display image in the environment of low illuminance or completely dark environment. According to the distance of the targets, the camera adjusts Illuminations intensity automatically to display the details of the moving target.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
4G
With a built-in high-performance 4G mobile network module, the camera can be directly registered to cloud platforms after a 4G SIM card has been inserted into it. It can be installed anywhere without the hassle of network cables. Users can perform real-time monitoring and remote control of the camera from a mobile client through 4G network.
