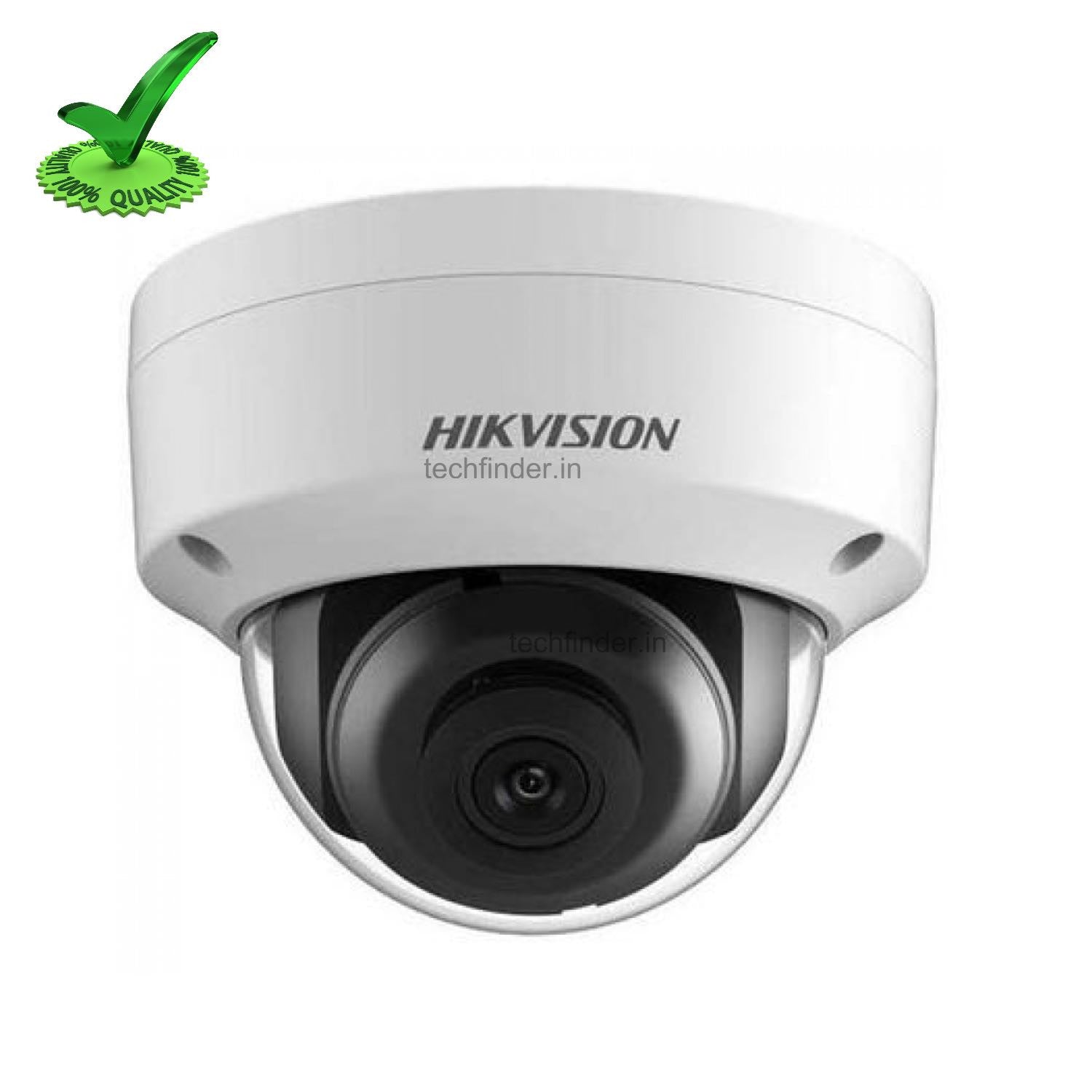

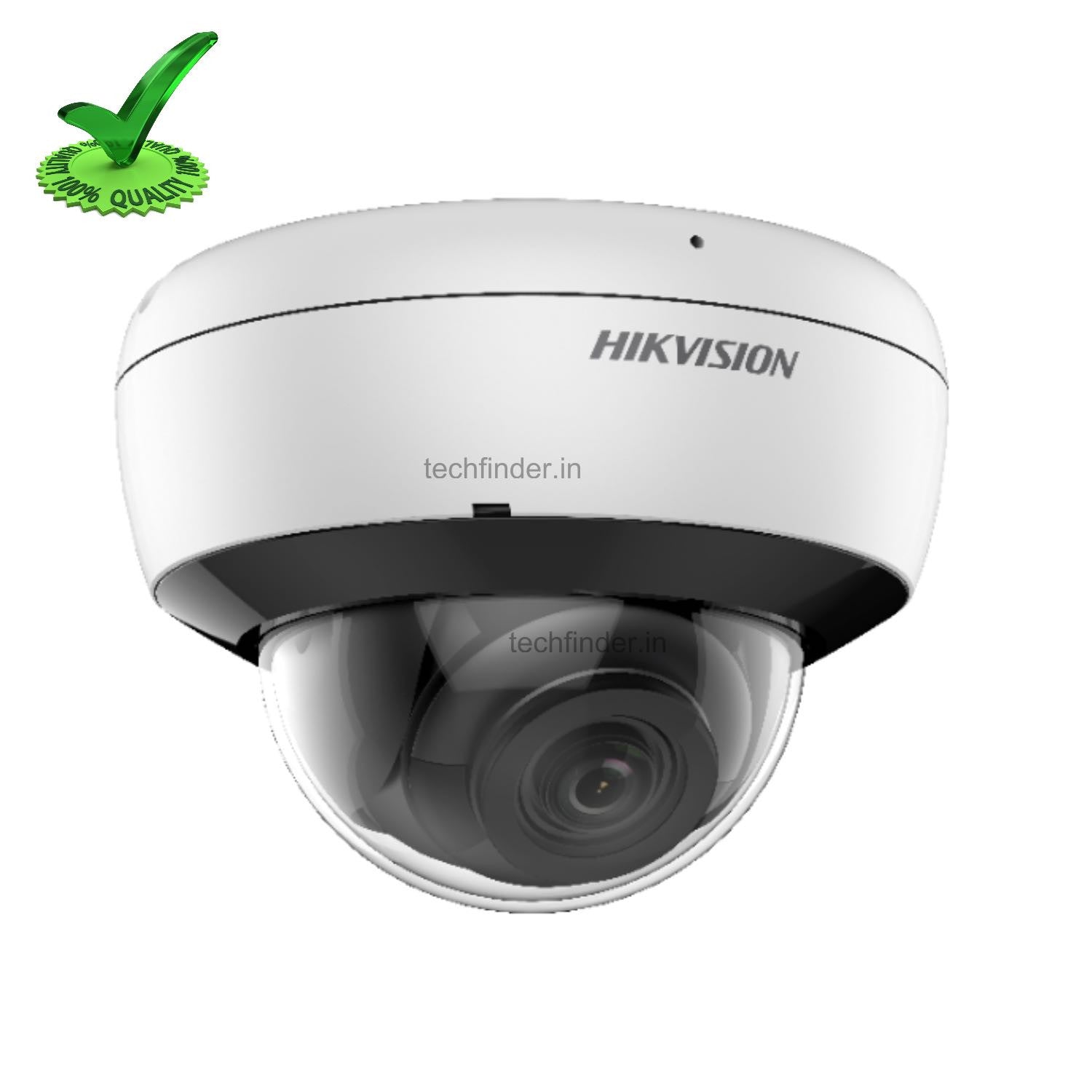

Hikvision DS-2CD1723G1-IZ 2MP IP Dome Camera

Available Model

• DS-2CD1723G1-I (2.8 mm to 8 mm),
• DS-2CD1723G1-IZ (2.8 mm to 8 mm),
• DS-2CD1723G1-IS (2.8 mm to 8 mm),
• DS-2CD1723G1-IZS (2.8 mm to 8 mm)

Camera Specification

• Image Sensor : 1/2.8" Progressive scan CMOS
• Min. Illumination : Color: 0.01 Lux @ (F1.2, AGC ON), 0.025 Lux @ (F1.9, AGC ON)
• Shutter Speed : 1/3 s to 1/100, 000 s
• Slow Shutter : Yes
• Day & Night : IR cut filter
• Digital Noise Reduction : 3D DNR
• WDR Digital : WDR
• Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 75°

Lens

• Focal length : 2.8 to 8 mm
• Aperture : F1.9
• Focus : Without -Z model: Manual-Z model: Auto
• FOV : Horizontal field of view: 111°to 54.7°, Vertical field of view: 57.8°to 30.5°, Diagonal field of view: 134°to 63°
• Lens Mount : Φ14

IR

• IR Range : Up to 20 m
• Wavelength : 850 nm

Compression Standard

• Video Compression : Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.264+ : Main stream supports
• H.265 Type : Main Profile
• H.265+ : Main stream supports
• Video Bit Rate : 32 Kbps to 8 Mbps


• Max. Resolution : 1920 × 1080
• Main Stream : 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-stream : 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Image Enhancement : BLC, 3D DNR
• Image Setting : Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Region of Interest : 1 fixed region for main stream
• Day/Night Switch : Day/Night/Auto/Schedule/Triggered by Alarm In (-S)

Network

• Network Storage : Support Micro SD/SDHC/SDXC card (128G), local storage and ANR
• Alarm Trigger : Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• General Function : One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Firmware Version : 5.5.82
• API : ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View : Up to 6 channels
• User/Host : Up to 32 users, 3 levels: Administrator, Operator and User
• Client : iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
• Web Browser : IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

• Audio -S : model: Built-in mic, 1 input (line in), 1 output (line out), Without -S model: Built-in mic
• Communication Interface : 1 RJ45 10M/100M self-adaptive Ethernet port
• Alarm (-S) : 1 alarm input, 1 alarm output
• Video Output (Without -Z) : 1Vp-p composite output (75 Ω/BNC)
• On-board storage : Built-in micro SD/SDHC/SDXC slot, up to 128 GB
• Reset Button : Yes

Audio

• Environment Noise Filtering : Yes
• Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate : 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)

General

• Operating Conditions : -30 °C to 45 °C (-22 °F to 113 °F), humidity: 95% or less (non-condensing)
• Power Supply : 12 VDC ± 25%, 5.5 mm coaxial power plug, PoE (802.3af, class 3)
• Power Consumption and Current : -Z model: 12 VDC, 0.8 A, max. 10 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12 W, Without -Z model: 12 VDC, 0.5 A, max. 6 W; PoE:(802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 8 W
• Protection Level : IP66, IK10

Extra Information

• SKU: DS2CD1723G1IZ
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 2
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
