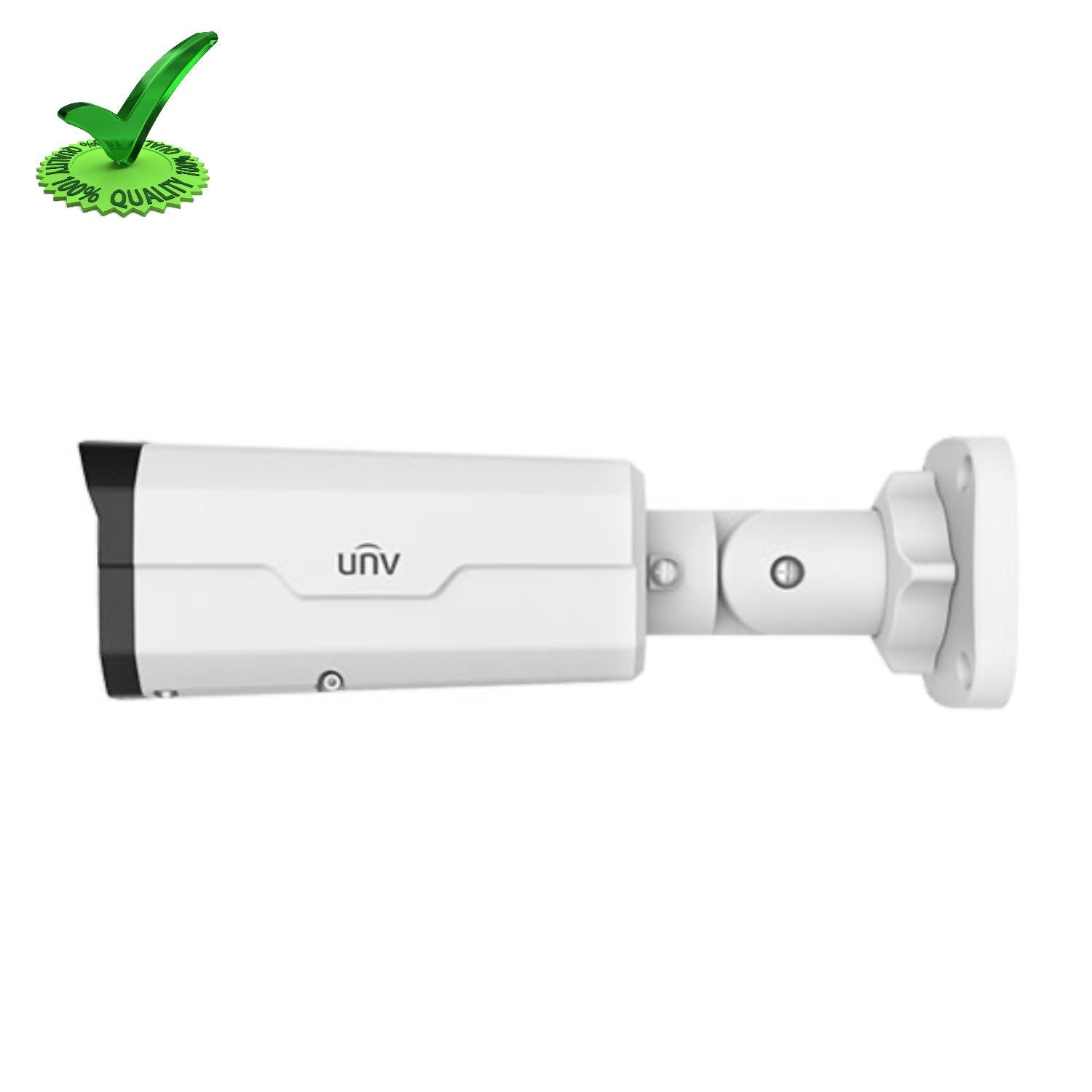

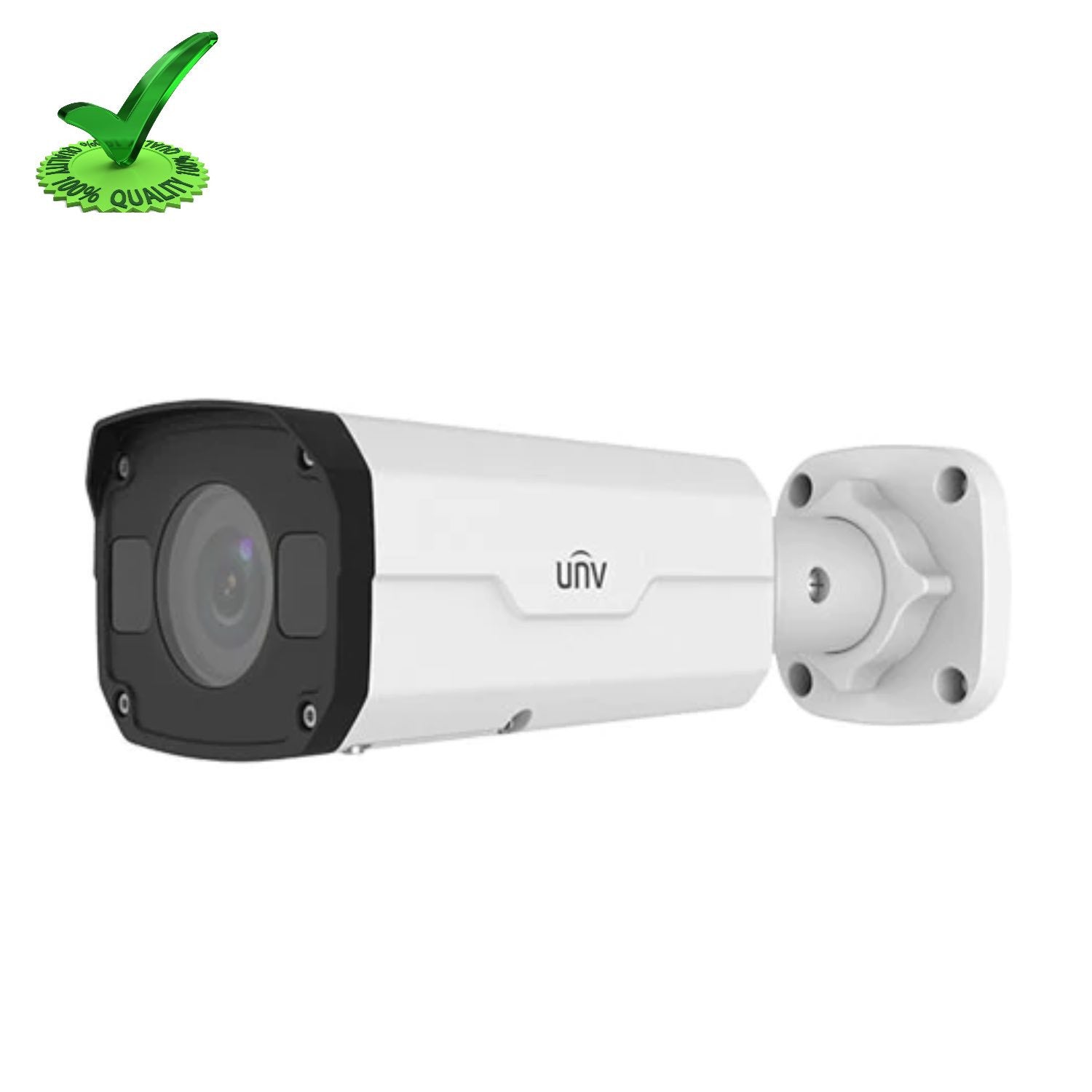

Uniview IPC2324LBR3-SP-D 4MP IP Network Bullet Camera

Specification

Camera

• Sensor : 1/3", 4.0 megapixel, progressive scan, CMOS
• Lens : 2.8~12 mm,manual zoom lens
• Angle Of View (H) : 91.0°~27°
• Angle Of View (V) : 54.4°~13.7°
• Anger Of View (O) : 118.3°~33.2°
• Adjustment Angle : Pan: 0°~ 360° Tilt: 0°~ 90° Rotate: 0°~ 360°
• Shutter : Auto/Manual: 1 ~ 1/100000s
• Minimum Illumination : Colour: 0.01 Lux (F1.6, AGC ON) 0 Lux with IR on
• Digital Noise Reduction : 2D/3D DNR
• Day/Night : IR-cut filter with auto switch (ICR)
• S/N : >52dB
• IR Range : Up to 30m (98 ft) IR range
• WDR : DWDR

Video

• Video Compression  : Ultra 265, H.265, H.264, MJPEG
• H.264 code profile  : Baseline profile, Main Profile, High Profile
• Frame Rate : Main Stream:4MP (2048*1520): Max. 20fps; Sub Stream:720P (1280*720): Max.20 fps; Third Stream: D1 (704×576): Max.20fps
• HLC : Supported
• BLC : Supported
• OSD : Up to 4 OSDs
• Privacy Mask : Up to 8 areas
• ROI : Up to 2 areas
• Motion Detection : Up to 4 Areas

Network

• Protocols : IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
• Compatible Integration : ONVIF(Profile S, Profile G, Profile T), API

Interface

• Network : 1 RJ45 10M/100M Base-TX Ethernet
• Edge Storage : MicroSD, up to 256GB

General

• Power : 12 V DC±25%, PoE (IEEE802.3 af) Power consumption: Max 6.5W
• Dimensions (L*B*H) : 240.3×86.4×75.6mm(9.46”×3.4”×2.98”)
• Weight : 1kg (2.2lb)
• Working Environment : -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
• Ingress Protection : IP67

Extra Information

• SKU: IPC2324LBR3SPD
• Warranty: 2 Years
• Brand: Uniview
• Megapixel: 4
• Technology: IP
• Camera Type: Bullet
• Product Type: Camera
• PDF: View PDF
