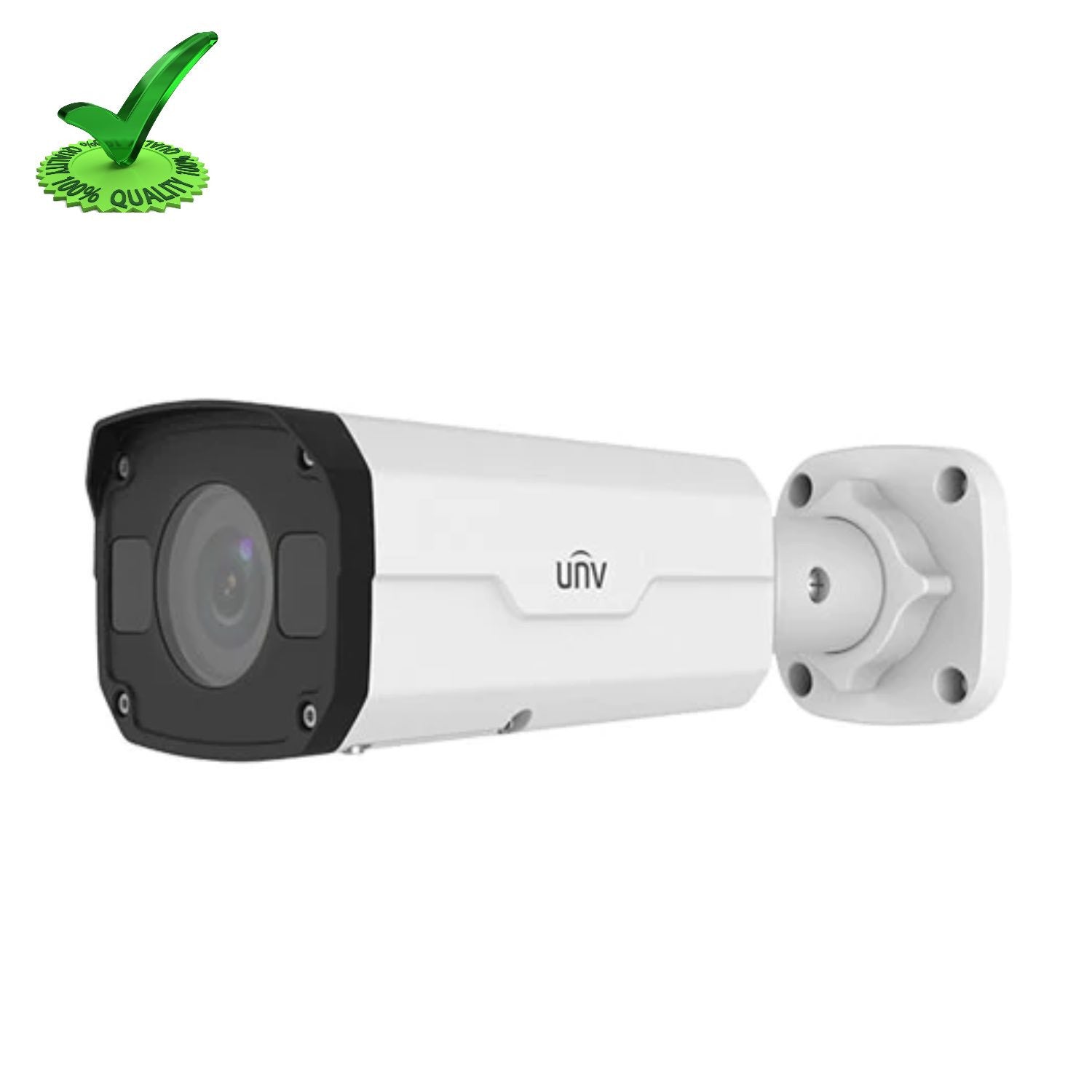

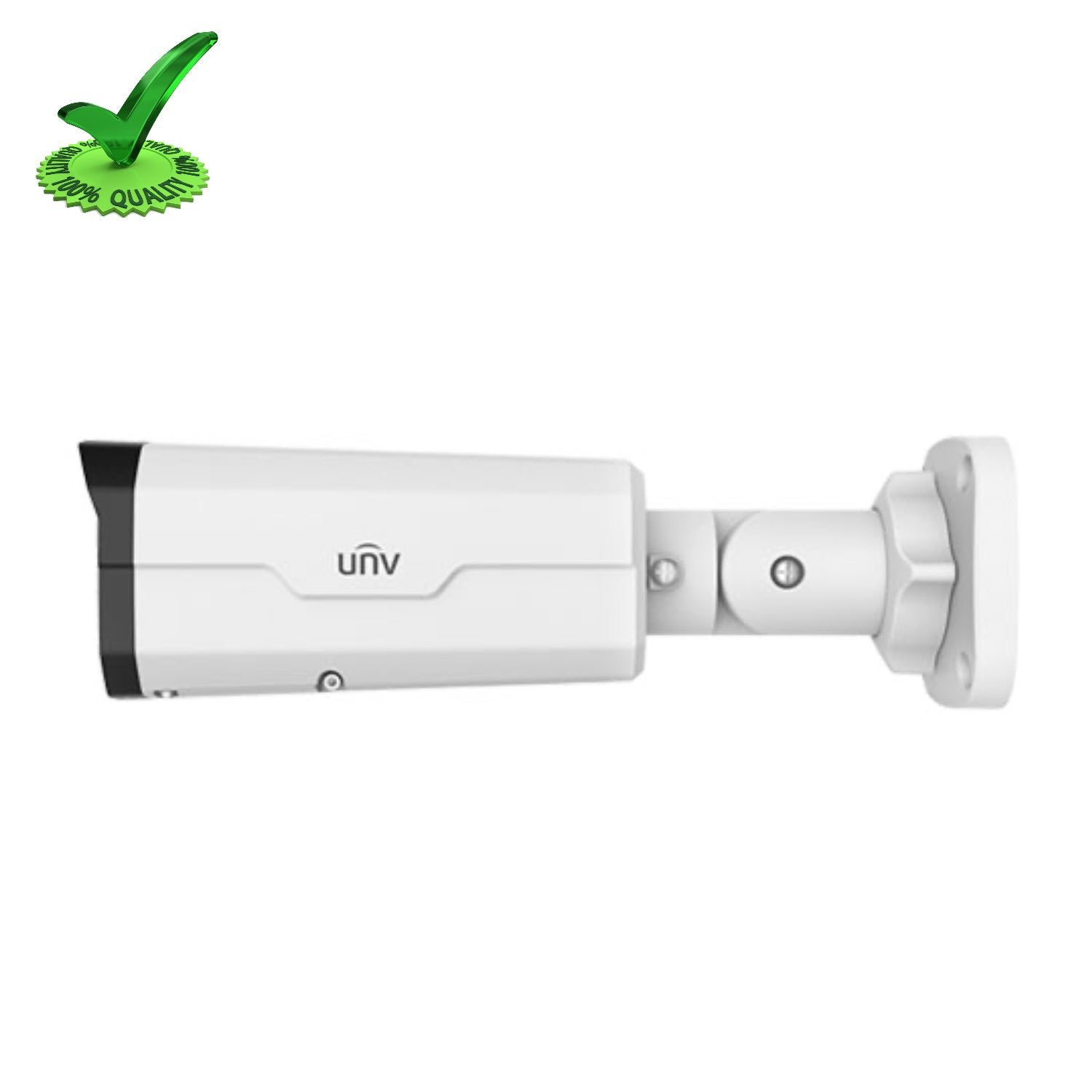

Uniview IPC2322LBR3-SP-D 2MP IP Network Dome Camera

Specification

Camera

• Sensor : 1/2.7", 2.0 megapixel, progressive scan, CMOS
• Lens : 2.8 ~ 12mm, manual zoom lens
• Angle Of View (H) : 112.7°~ 28.1°
• Angle Of View (V) : 60.1°~ 15.4°
• Anger Of View (O) : 146.5°~ 33.2°
• Adjustment Angle : Pan: 0°~ 360° Tilt: 0°~ 90° Rotate: 0°~ 360°
• Shutter : Auto/Manual: 1 ~ 1/100000s
• Minimum Illumination : Colour: 0.01Lux (F1.6 AGC ON) 0 Lux with IR
• Digital Noise Reduction : 2D/3D DNR
• IR Range : Up to 30m (98ft) IR range
• Wavelength : 850nm
• IR On/Off Control : Auto/Manual
• Defog : Digital Defog
• WDR : DWDR

Video

• Video Compression  : Ultra 265, H.265, H.264, MJPEG
• H.264 code profile  : Baseline profile, Main Profile
• Frame Rate : Main Stream: 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (704*576), Max 30fps
• Video Bit Rate : 128 Kbps~16 Mbps
• OSD : Up to 4 OSDs
• Privacy Mask : Up to 4 Areas
• ROI : Up to 2 Areas
• Motion Detection : Up to 4 Areas


• White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction : 2D/3D DNR
• Smart IR : Support
• Flip : Normal/Vertical/Horizontal/180°
• Dewarping :  Supported
• HLC : Supported
• BLC : Supported

Network

• Protocols : IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
• Compatible Integration : ONVIF(Profile S, Profile G, Profile T), API
• Client : EZStation EZView EZLive
• Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Storage

• Edge Storage : Micro SD, up to 256GB
• Network Storage : ANR

Interface

• Network : 1 RJ45 10M/100M Base-TX Ethernet

Certification

• Certifications : CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15

General

• Power : DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 6.5W
• Dimensions (L*B*H) : 240.3 × 86.4 × 75.6mm (9.46” × 3.4” × 2.98”)
• Weight : 1kg (2.2lb)
• Material : Metal
• Working Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Ingress Protection : IP67
• Surge Protection : 6KV

Extra Information

• SKU: IPC2322LBR3SPD
• Warranty: 2 Years
• Brand: Uniview
• Megapixel: 2
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
