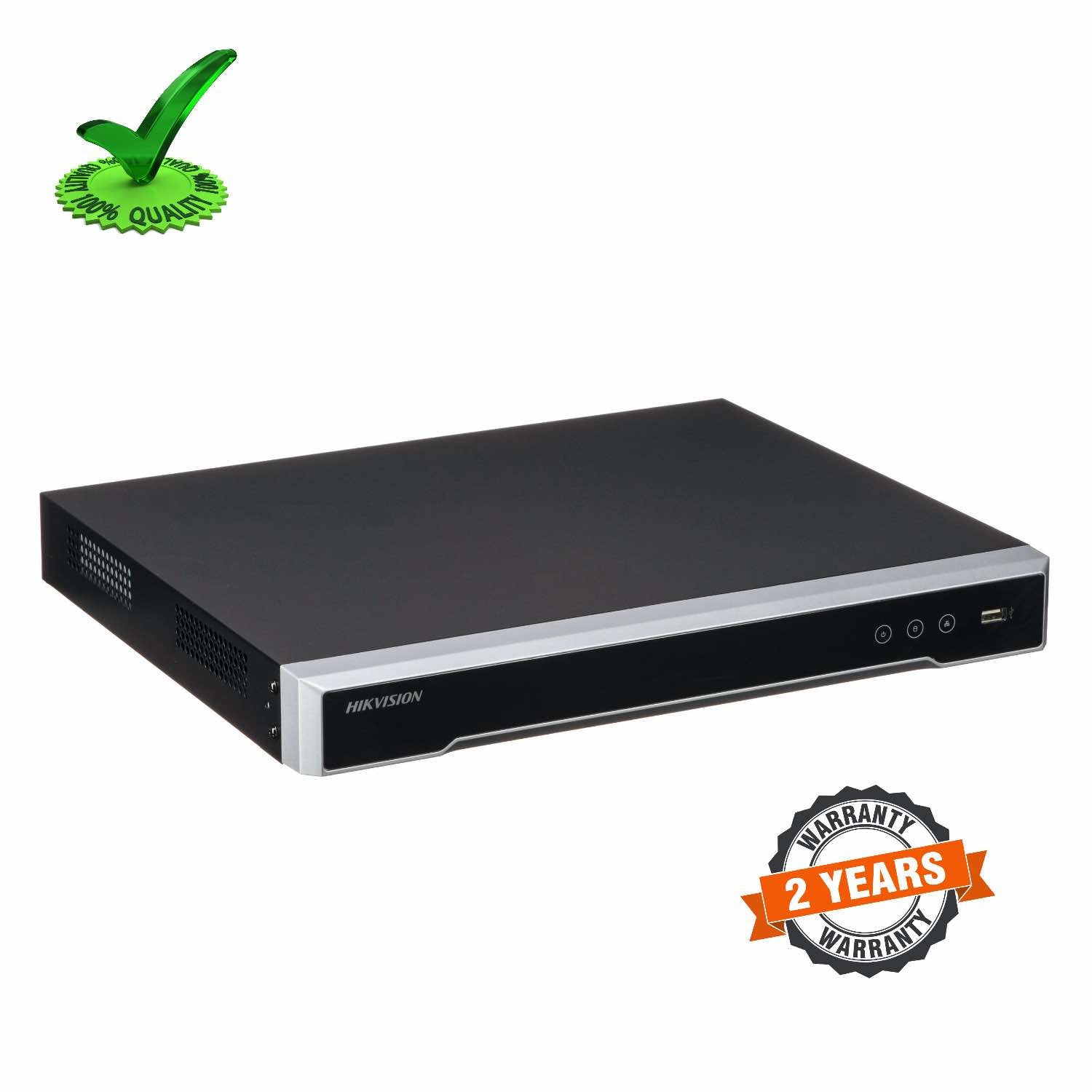

Hikvision DS-7P16NI-K2 Nvr 16Ch Network Video Recorder

Hikvision DS-7P16NI-K2 16Port Nvr

Specification

Hikvision Nvr Model No. : DS-7P16NI-K2

Video/ Audio input

• IP video input : 16-ch
• Incoming bandwidth : 160 Mbps
• Outgoing bandwidth : 160 Mbps

Video/Audio output

• HDMI output resolution : 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA output resolution : 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio output : 1-ch, RCA (Linear, 1 KΩ)

Decoding

• Decoding format : H.265/H.265+/H.264/H.264+/MPEG4
• Recording resolution : 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF
• Synchronous playback : 16-ch
• Capability : 2-ch @ 4K, or 8-ch @ 1080p

Network management

• Network protocols : TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPTM, HTTPS

Hard disk

• SATA : 2 SATA interfaces
• Capacity : Up to 6TB capacity for each HDD

External interface

• Network interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• USB interface : Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm in/out : 4/1

General

• Power supply : 12 VDC
• Power : ≤ 40 W
• Consumption (without hard disk) : ≤15 W
• Working temperature : -10 to +55oC (14 to 131oF )
• Working humidity : 10 to 90 %
• Chassis : 385 mm chassis
• Dimensions (W × D × H) : 385 × 315× 52 mm (15.2" × 12.4" × 2.0")
• Weight (without hard disk) : ≤ 1 kg (2.2 lb)

Extra Information

• SKU: DS7P16NIK2
• Warranty: 2 Years
• Brand: Hikvision
• Technology: IP
• Product Type: NVR
• PDF: View PDF
