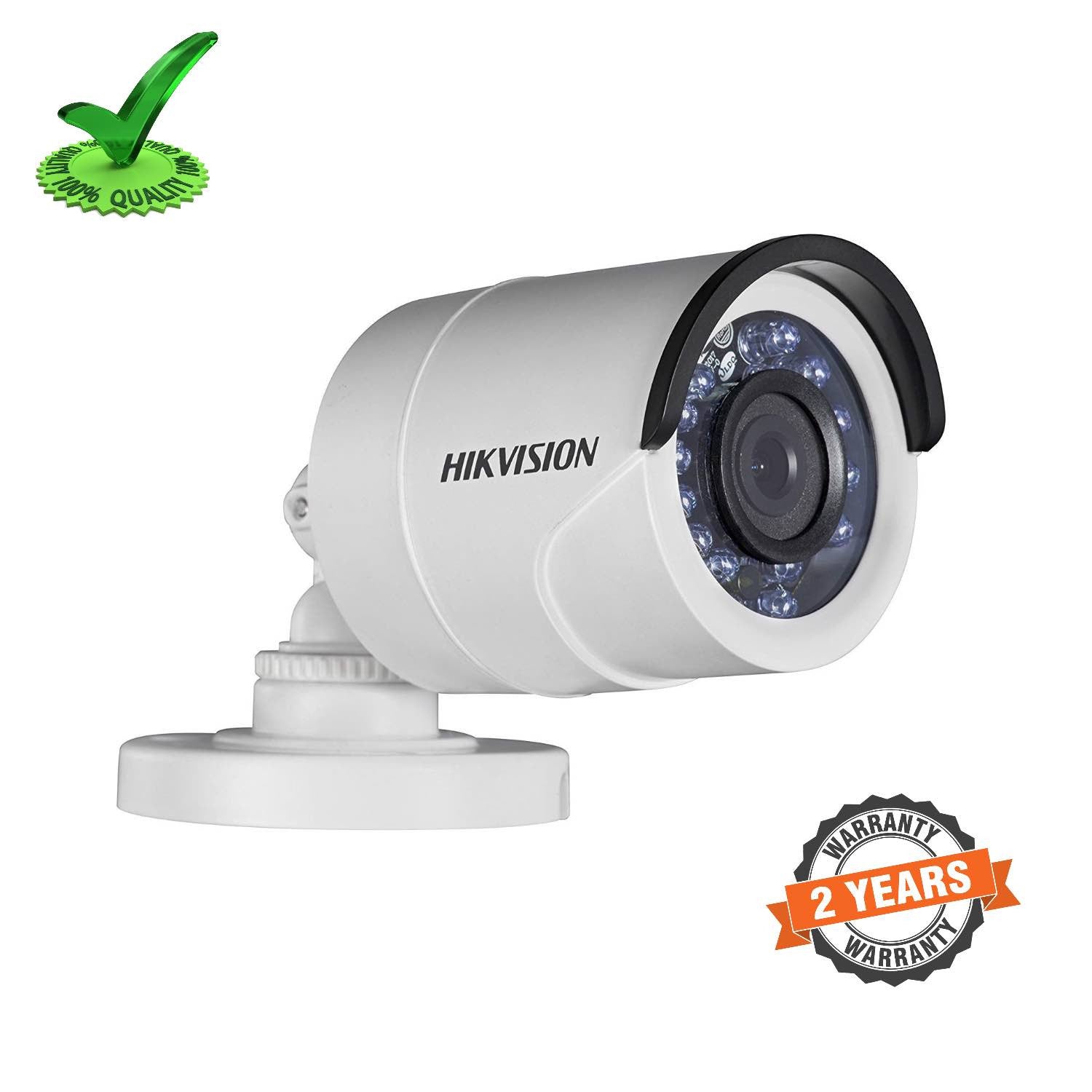

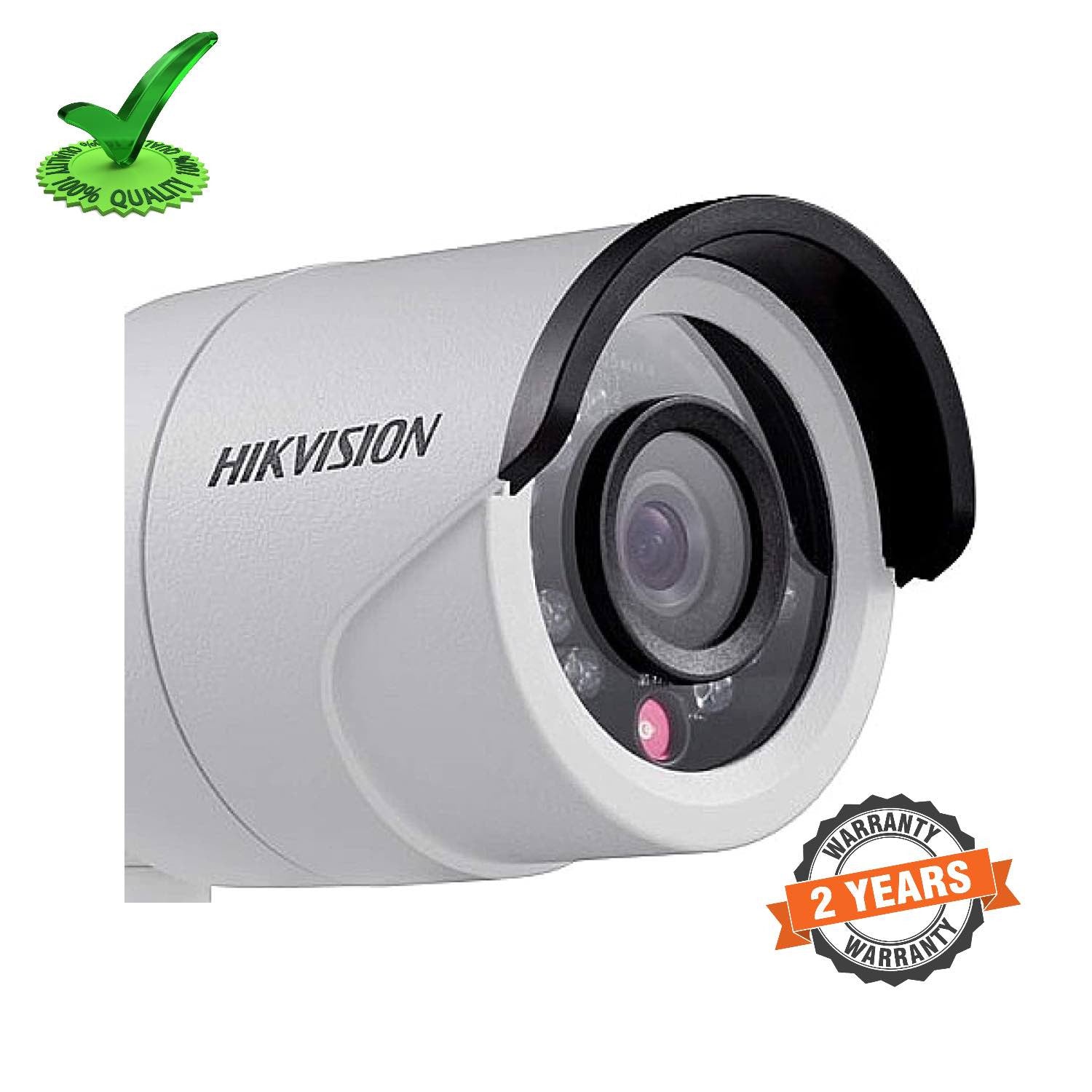

Hikvision DS-2CE1ADOT-IP Eco 2MP IR Bullet Camera

Hikvision DS-2CE1ADOT-IP Eco 2MP IR Bullet Camera

Camera

• Image Sensor : 2 MP CMOS image sensor
• Signal System : PAL/NTSC
• Frame Rate : PAL: 1080p@25fps, NTSC: 1080p@30fps
• Resolution : 1920(H)×1080(V)
• Min. illumination : 0.02 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time : PAL: 1/25 s to 1/50, 000 s, NTSC: 1/30 s to 1/50, 000 s
• Lens : 2.8 mm, 3.6 mm fixed lens
• Horizontal Field of View : 103°(2.8 mm), 82.2°(3.6 mm)
• Lens Mount : M12
• Day & Night : IR cut filter
• Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
• Synchronization : Internal synchronization
• WDR(Wide Dynamic Range) : DWDR

Menu

• Image Mode : STD/HIGH-SAT
• AGC : Support
• Day/Night : Mode Smart/color/BW(Black and White)
• Backlight Compensation : Support
• DWDR : Support
• Language : English
• Functions : Brightness, Sharpness, DNR, Mirror

Interface

• Video Output : 1 HD analog output

General

• Operating Conditions : -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
• Power Supply : 12 VDC±15%
• Power Consumption : Max. 4 W
• Ingress Protection : IP66
• Material : Plastic
• IR Range : Up to 20 m
• Dimensions : Ø 60.5 mm × 145.63 mm (Ø 2.38" × 5.73")
• Weight : Approx. 140 g (0.31 lb.)

Extra Information

• SKU: DS2CE1ADOTIP
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 2
• Technology: Analogue
• Camera Type: Bullet
• Product Type: Camera
• PDF: View PDF
