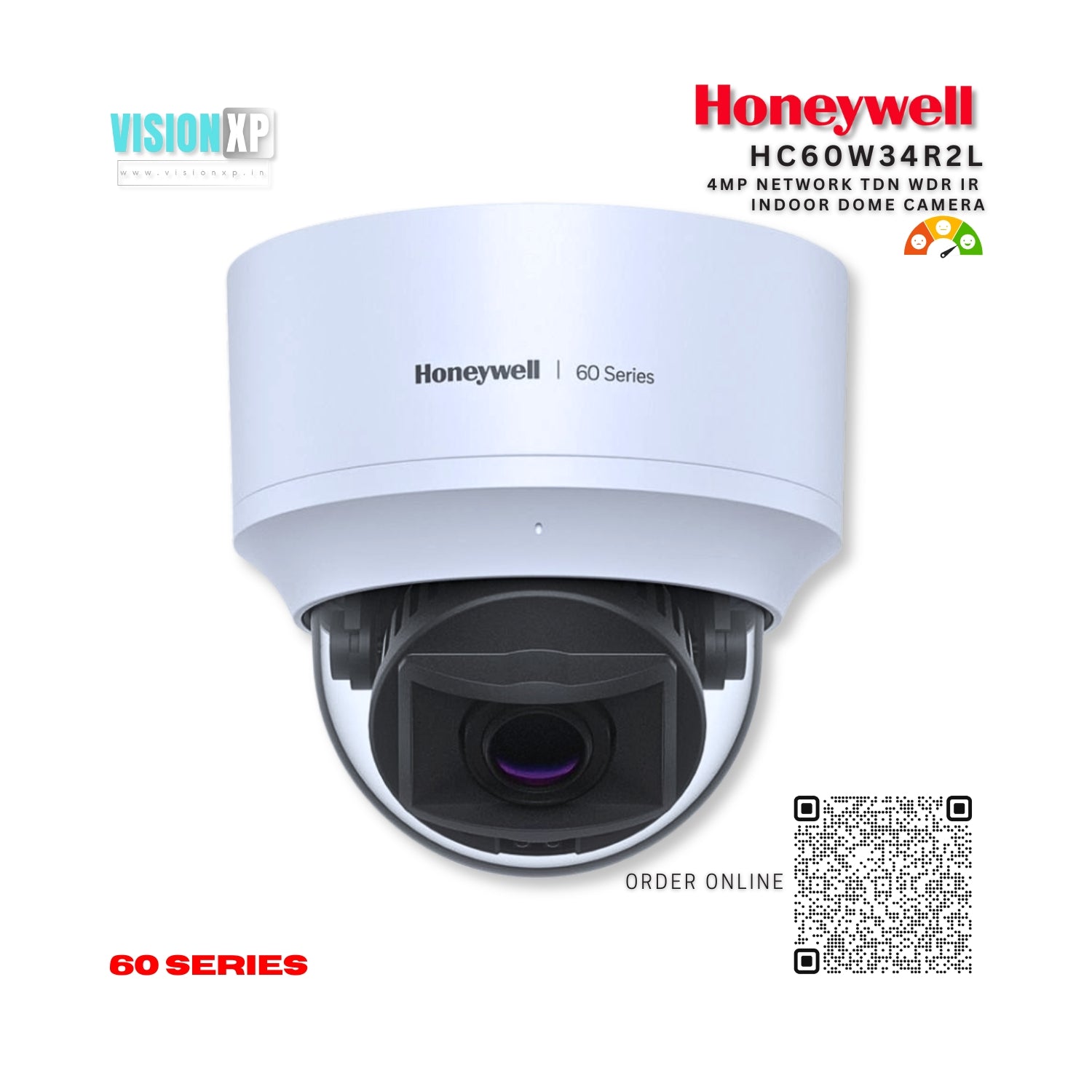

Honeywell 60 SERIES HC60W34R2L 4MP Network TDN WDR IR Indoor Dome Camera
60 SERIES IP CAMERA
Honeywell is taking quality and reliability to the next level with the new 60 series line of 5MP IP cameras including a 2MP outdoor speed dome. The Honeywell cameras, including indoor and outdoor dome, bullet and outdoor speed dome offer exceptional picture clarity, flexible system integration, secure data transmission, easy installation and designed for use as part of video systems which comply with NDAA 2019, Section 889, ensuring complete compliance with all industry standards.
- FIPS Chipset
- NDAA Compliance
- Local encrypted storage micro SD card
- TLS1.2 video stream encryption
- PCI-DSS Compliance
PRODUCT OFFERINGS
Choose from indoor/outdoor dome, outdoor bullet and outdoor speed dome surveillance systems When there is no scope for compromising on reliable security and always-on protection, large enterprises choose Honeywell’s 60 Series CCTV surveillance systems.
HC60W32R2I 2MP/4MP Ultra Low-light IR Indoor Dome Cameras
FEATURES
- 2 MP Ultra Low-light IR Indoor Dome Camera
- WDR 140 dB, 2.7 ~ 13.5 mm,
- PoE
- DC12V
- Audio & Alarm In/Out
- IK10 (Bubble only)
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
60 SERIES HC60W34R2L 4MP Network TDN WDR IR Indoor Dome Camera
|
OPERATIONAL |
|
Ethernet |
10 Base-T / 100 Base-TX Ethernet (RJ-45) |
|
|
Video Standard |
NTSC / PAL |
Supported Web Browsers |
Chrome 79.0 / Internet Explorer 11 |
|
|
Scanning System |
Progressive |
Supported OS |
Microsoft Windows 10 |
|
|
Image Sensor |
1 / 2.8” CMOS |
Protocols* |
IPv4, IPv6, TCP / IP, HTTP, HTTPS, UPnP, RTSP / RTP / RTCP, IGMP / Multicast, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS |
|
|
Sensor Size (H x V) |
5.18 x 3.89 mm |
|||
|
Number Of Pixels (H x V) |
2560 x 1440 (4 MP) |
|||
|
Interoperability |
ONVIF Profile G / S |
|||
|
Min. illumination (Color / B / W) |
0.04 Lux @F1.4, B / W: 0Lux @F1.4(IR on) |
|||
|
Maximum Users Access |
10 Users |
|||
|
S / N Ratio |
60 dB |
Security |
User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128 / 256, SSH / Telnet closed, PCIDSS compliance, FIPS Chipset Built-In |
|
|
Electronic Shutter Speed |
1 / 30 ~ 1 / 32000 |
|||
|
IR Distance |
Up to 30 m (98 ft) |
|||
|
Languages Supported |
English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Traditional Chinese |
|||
|
IR Light Control |
Smart IR (Auto / Manual) / OFF, External IR trigger by output |
|||
|
IR Light Number |
4 |
|||
|
EVENTS / ANALYTICS |
||||
|
Removable IR-Cut Filter |
Yes |
|||
|
Video Analytics |
Intrusion, loiter, line crossing, unattended object, missing object, face detection (Only for HC60W34R2) |
|||
|
Day / Night |
Auto / Day / Night / Synchronize with digital input / Schedule |
|||
|
Backlight Compensation |
WDR, HLC |
Event type |
Video motion detection, Periodically, Alarm input, System boot, Recording notification, Camera tampering detection |
|
|
White Balance |
Auto / Fixed Current / Manual |
|||
|
Gain Control |
0-100 % |
Event linkage |
Event notification using digital output, HTTP, Email and MicroSD card |
|
|
Wide Dynamic Range |
120 dB |
|||
|
Region Of Interest |
5 |
|||
|
Noise Reduction |
3D DNR |
|||
|
ELECTRICAL |
||||
|
Lens |
2.7 mm ~ 13.5 mm, MFZ, DC-IRIS, F1.4 ~ F2.8 |
|||
|
Power Supply |
12 VDC / 24 VAC (50 / 60 Hz), PoE (IEEE 802.3 af, Class 0) |
|||
|
Angle Of View (H x V) |
H: 100° ~ 30°, V: 72° ~ 23° |
|||
|
Power Consumption |
12.95W |
|||
|
Privacy Masking |
Off / On (5 Areas) |
|||
|
MECHANICAL |
||||
|
Defog |
Support |
|||
|
Dimensions (D x D x H) |
126mm x 126mm x 122mm (4.96’’ x 4.96’’ x 4.8’’) |
|||
|
Encryption Chipset |
Built-in FIPS encryption Chipset |
|||
|
Local Storage |
Micro SD / SDHC / SDXC card slot (up to 256GB), SD Card encryption |
Dome diameter |
91mm (3.58’’) |
|
|
Product Weight |
0.58kg (1.28lb) |
|||
|
Micro USB |
Support Wifi Dongle for configuration |
|||
|
Package Weight |
1.14kg (2.51lb) |
|||
|
Alarm Inputs / Outputs |
2 IN / 1 |
|||
|
Material |
Metal (die casting aluminum with liquid painting ) |
|||
|
VIDEO |
||||
|
Color |
RAL 120-1 (Lyric White) |
|||
|
Video Compression |
H.265 HEVC / H.264 / MJPEG, Smart Codec |
|||
|
ENVIRONMENTAL |
||||
|
Resolution (16 / 9) |
2560 x 1440 / 1920 x 1080 / 1600 x 904 / 1360x768 / 1280 x 720 / 640 x 360 |
|||
|
Operating Temperature |
Starting Temperature: 0 °C ~ 60 °C (32°F ~ 140 °F) Working Temperature: -10 °C ~ 60 °C (14 °F ~ 140 °F) |
|||
|
Number of Video Streams |
3 |
|||
|
Relative Humidity |
Less than 90 %, non-condensing |
|||
|
Frame Rate Main Stream |
2560 x 1440 / 1920 x 1080 / 1360 x 768 / 1280 x 720 / 640 x 360 (1-25 / 30fps), 1920 x 1080 / 1600 x 904 / 1360 x 768 / 1280 x 720 / 640 x 360 (1-50 / 60fps) |
|||
|
Ingress Protection |
IP 52 |
|||
|
Impact Resistance |
IK 10 (bubble only) |
|||
|
Frame Rate Second Stream |
2560 x 1440 / 1920 x 1080 / 1360 x 768 / 1280 x 720 / 640 x 360 (1-25 / 30fps), 1920 x 1080 / 1600 x 904 / 1360 x 768 / 1280 x 720 / 640 x 360 (1-50 / 60fps), 2560 x 1440(1-50fps) |
|||
|
REGULATORY |
||||
|
Emissions |
FCC PART 15, CE (EN 55032) |
|||
|
Frame Rate Third Stream |
1280 x 960 / 640 x 480 (1-25 / 30fps), 1280 x 720 / 640 x 360 (1-50 / 60fps) |
|||
|
Immunity |
CE (EN 50130-4) |
|||
|
Safety |
UL LISTED TO UL / CSA 62368-1, CE (EN 62368-1) |
|||
|
Bit Rate |
20 K ~ 80 Mbps |
|||
|
RoHS |
CE (EN 50581), EAC (TR EAEU 037 / 2016), UAE (Cabinet Decree No.10 of 2017) |
|||
|
AUDIO |
||||
|
Audio Compression |
G.711A / G.711MU / G.726 |
Country of Origin |
Taiwan |
|
|
Audio Stream |
Full duplex, Simplex |
|
||
|
Audio Interface |
Line In / Out, Built-in Microphone |
|||
|
NETWORK |
||||
|
SYSTEM COMPATIBILITY |
|
|
Pro-Watch NVR |
Up to 256 IP channels RAID5 / 6 Enterprise NVR |
|
MAXPRO NVR PE |
Up to 128 IP channels RAID5 / 6 Enterprise NVR |
|
MAXPRO NVR SE |
Up to 64 IP channels System NVR |
|
MAXPRO NVR XE |
Up to 16 IP channels System NVR |
|
MAXPRO NVR SOFTWARE |
Up to 128 IP channels Recording Software |
|
ADPRO NVR FASTTRACE 2E |
Up to 32 IP channels with up to 32 VA channels NVRs |
|
ADPRO NVR iFT-E |
Up to 32 IP channels with up to 32 VA channels NVRs |
|
ADPRO NVR iFT |
Up to 32 IP channels or 16 IP channels with up to 16 VA channels NVRs |
|
ADPRO NVR eFT |
Up to 16 IP channels or 8 IP channels with up to 8 VA channels NVRs |
|
ADPRO NVR iFT GATEWAY |
4 IP channels + 4 VA channels |
|
HEN*4 |
8 / 16 / 32 / 64-channel Performance Series NVRs (H.264 and H.265) |
|
Honeywell DVM |
Supported with Honeywell DVM R700 , DVM R620 |
|
30 SERIES NVR |
Integration with 30 Series NVR |
|
OPTIONAL MOUNTS AND ACCESSORIES |
|
|
HD3-MK2 |
Wall Mount Bracket |
|
HA60PMC3 |
Flush mount adaptor for 3 inch dome , black |
|
HD5-MK2 |
In Ceiling Mount Bracket |
|
HD5CBL / HD5CWH |
In Ceiling Mount Bracket |
|
HD5TBL / HD5TWH |
In Ceiling Mount Bracket |
|
4S BOX |
4S Box (Depth no less than 2-1 / 8”, need to purchase from market) |
|
HA60WLM3 |
Wall mount bracket for 3 inch dome, white |
|
HLR1001 |
IP over Coax Converter |
|
HA60CB3 |
Replacement Dome, 60 series indoor bubble (Clear) |
|
HA60SB3 |
Replacement Dome, 60 series indoor bubble (Smoke) |
|
HA60WIF |
Wifi dongle and USB adapter for camera configuration |
|
HA60ICK |
Indoor dome inceiling mount kit |
ORDERING
|
|
|
|
HC60W34R2L |
4MP Network Indoor Dome Camera, WDR 120dB, 1 / 2.8” CMOS, 2.7-13.5 mm MFZ, 4 IR LEDs, PoE, H.265 HEVC Smart Codec, IP52, Built-in Micro- phone, White, w / o VA license |
