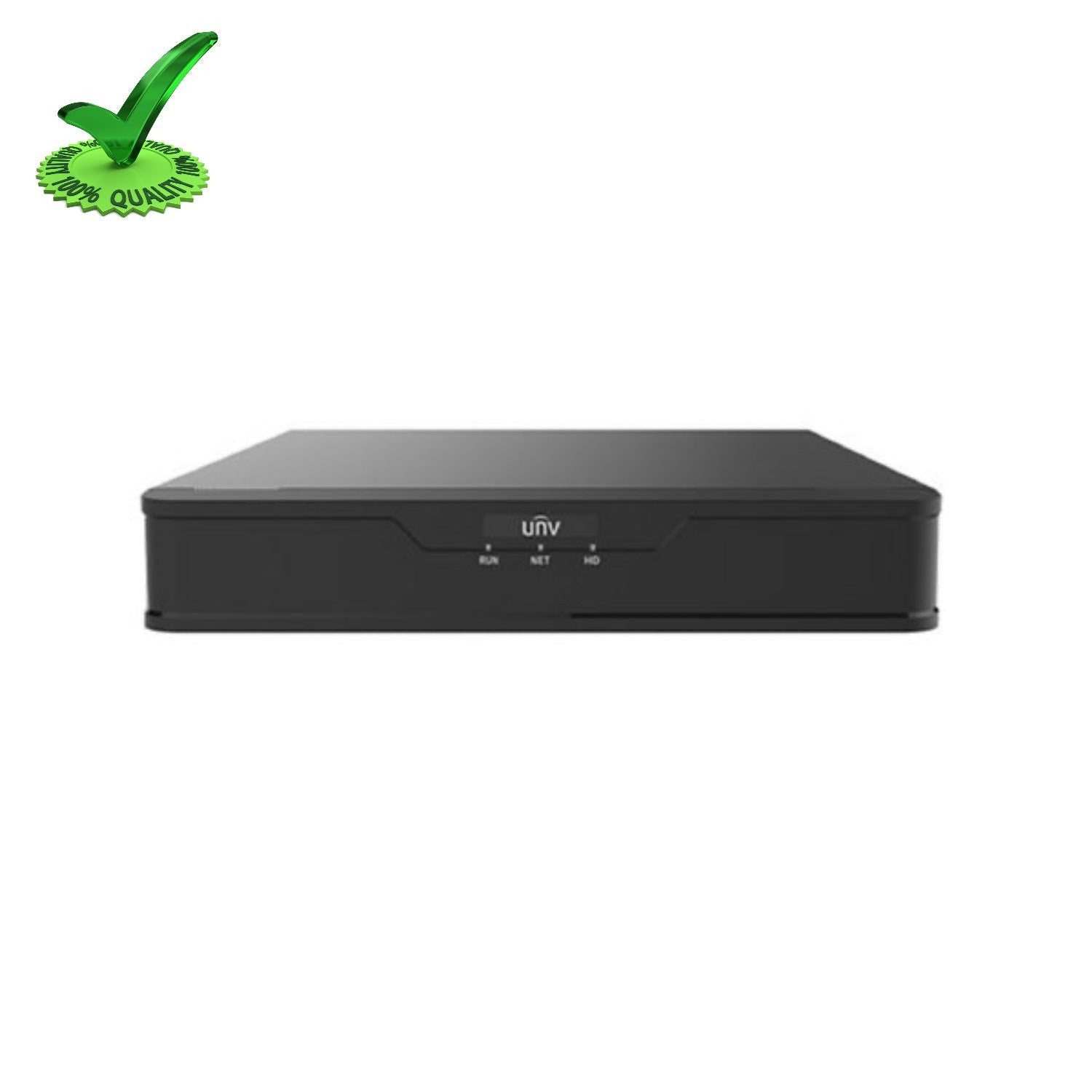

Uniview NVR301-04X 4Ch HD Network Video Recorder
Short Description
- Support Ultra 265/H.265/H.264 video formats
- 4-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 4K resolution recording
- 1 SATA HDD up to 6 TB
- Support cloud upgrade
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Specification
Video/Audio Input
- IP Video Input : 4-ch
- Two-way Audio Input : 1-ch, RCA
Network
- Incoming Bandwidth : 80Mbps
- Outgoing Bandwidth : 64Mbps
- Remote Users : 128
- Protocols : P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
- HDMI/VGA Output: HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz,1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- Recording Resolution : 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Audio Output : 1-ch, RCA
- Synchronous Playback : 4-ch
- Corridor Mode Screen : 3/4
Decoding
- Decoding format : Ultra 265/H.265/H.264
- Liveview/Playback : 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Capability : 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30
Hard Disk
- SATA : 1 SATA interface
- Capacity : up to 6TB for each disk
External Interface
- Network Interface : 1 RJ45 10M/100M self-adaptive Ethernet Interface
- USB Interface : Rear panel: 1 x USB2.0,1 x USB3.0
PoE
- Interface : 4 RJ45 10M/100M self-adaptive Ethernet Interface
- Max Power : Max 30W for single port Max 54W in total
- Supported Standard : IEEE 802.3at, IEEE 802.3af
General
- Power Supply : 48V DC
- Power Consumption : ≤9 W (without HDD)
- Working Environment : -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
- Dimensions (W×D×H) : 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
- Weight (without HDD) : 1kg (2.20 lb)
Extra Information
- SKU: NVR30104X
- Warranty: 2 Years
- Brand: Uniview
- Technology: IP
- Product Type: NVR
- PDF: View PDF
