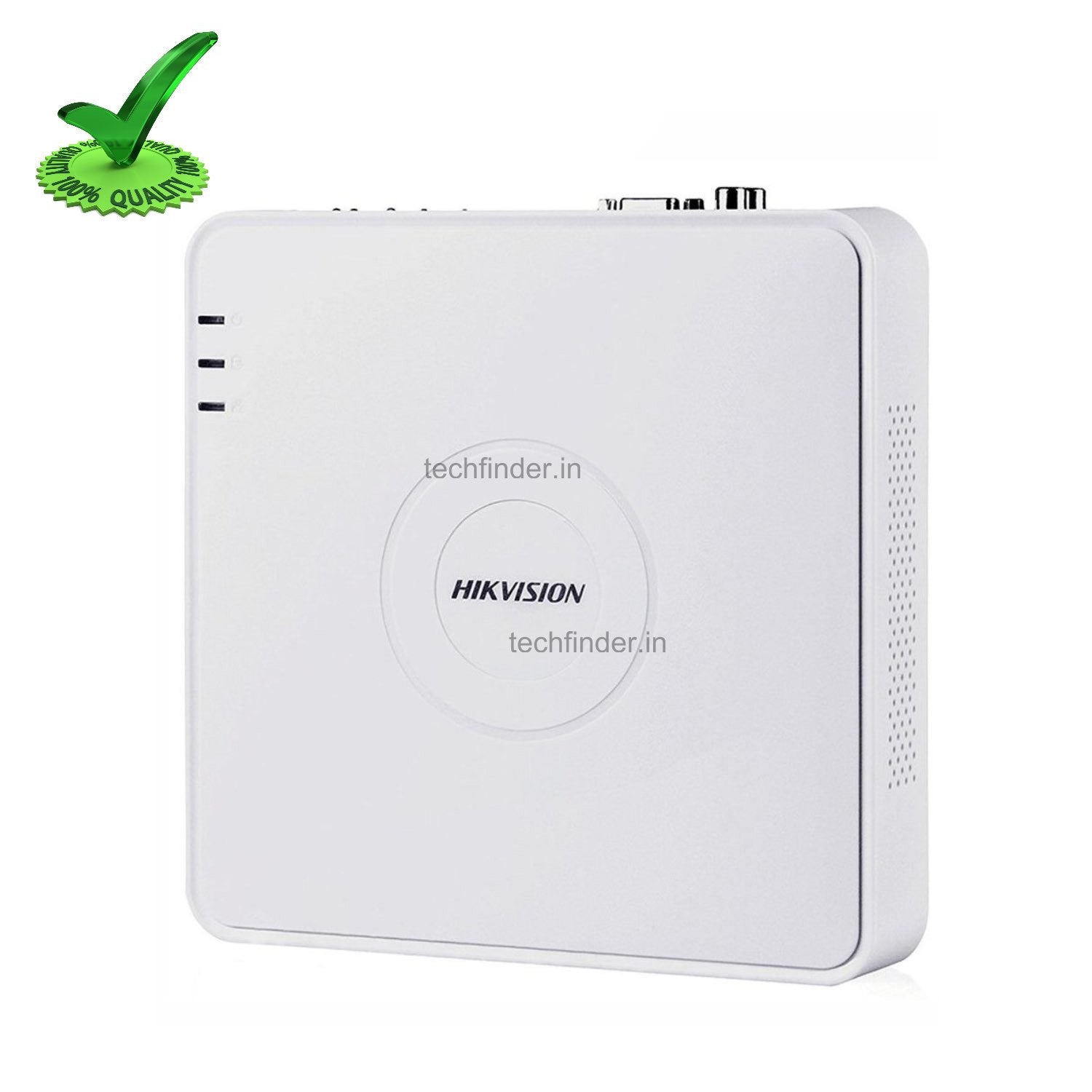

Hikvision DS-7116HGHI-K1 HD Turbo DVR

Compression and Recording

• H.265 Pro+ video compression improves encoding efficiency and reduces data storage costs
• Full channel recording at up to 1080p lite resolution

Storage and Playback

• Smart search for efficient playback

Network & Ethernet Access

• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• 96 Mbps total bandwidth

Recording

• Video compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding resolution : 1080p lite/720p/VGA/WD1/4CIF/CIF
• Frame rate : For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15 fps; CIF@25 fps (P)/30 fps (N), For 720p stream access: 720p/WD1/4CIF/VGA@15 fps; CIF@ 25fps (P)/30 fps (N) For standard definition stream access, WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N), For 1080p and 720p stream access: CIF/QVGA@15 fps, For standard definition stream access: CIF/QVGA@25 fps (P)/30 fps (N)
• Video bit rate : 32 Kbps to 4 Mbps
• Dual stream : Support
• Stream type : Video, Video & Audio
• Audio compression : G.711u
• Audio bit rate : 64 Kbps

Video and Audio

• IP video input : 2-ch (up to 18-ch), Up to 5 MP resolution, Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog video input : 16-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI input : 1080p25, 1080p30, 720p25, 720p30
• AHD input : 1080p25, 1080p30, 720p25, 720p30
• HDCVI input : 1080p25, 1080p30, 720p25, 720p30
• CVBS input : PAL/NTSC
• HDMI/VGA output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz , HDMI/VGA simultaneous output
• Audio input : 1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable
• Audio output : 1-ch, RCA (Linear, 1 KΩ)
• Two-way audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
• Synchronous playback : 16-ch

Network

• Remote connections : 128
• Network protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPTM, HTTPS, ONVIF
• Network interface : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary interface

• SATA : 1, SATA interface
• Capacity : Up to 10 TB capacity for each disk
• USB interface : Rear panel: 2 × USB 2.0
• General
• Power supply : 12 VDC, 1.6 A
• Consumption (Without HDD) : ≤7W
• Working temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity : 10% to 90%
• Dimension (W × D × H) : 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
• Weight (without HDD) : ≤ 1.8 kg (4.0 lb)

Extra Information

• SKU: DS7116HGHIK1
• Warranty: 2 Years
• Brand: Hikvision
• Technology: Analogue
• Product Type: DVR/XVR
• PDF: View PDF
