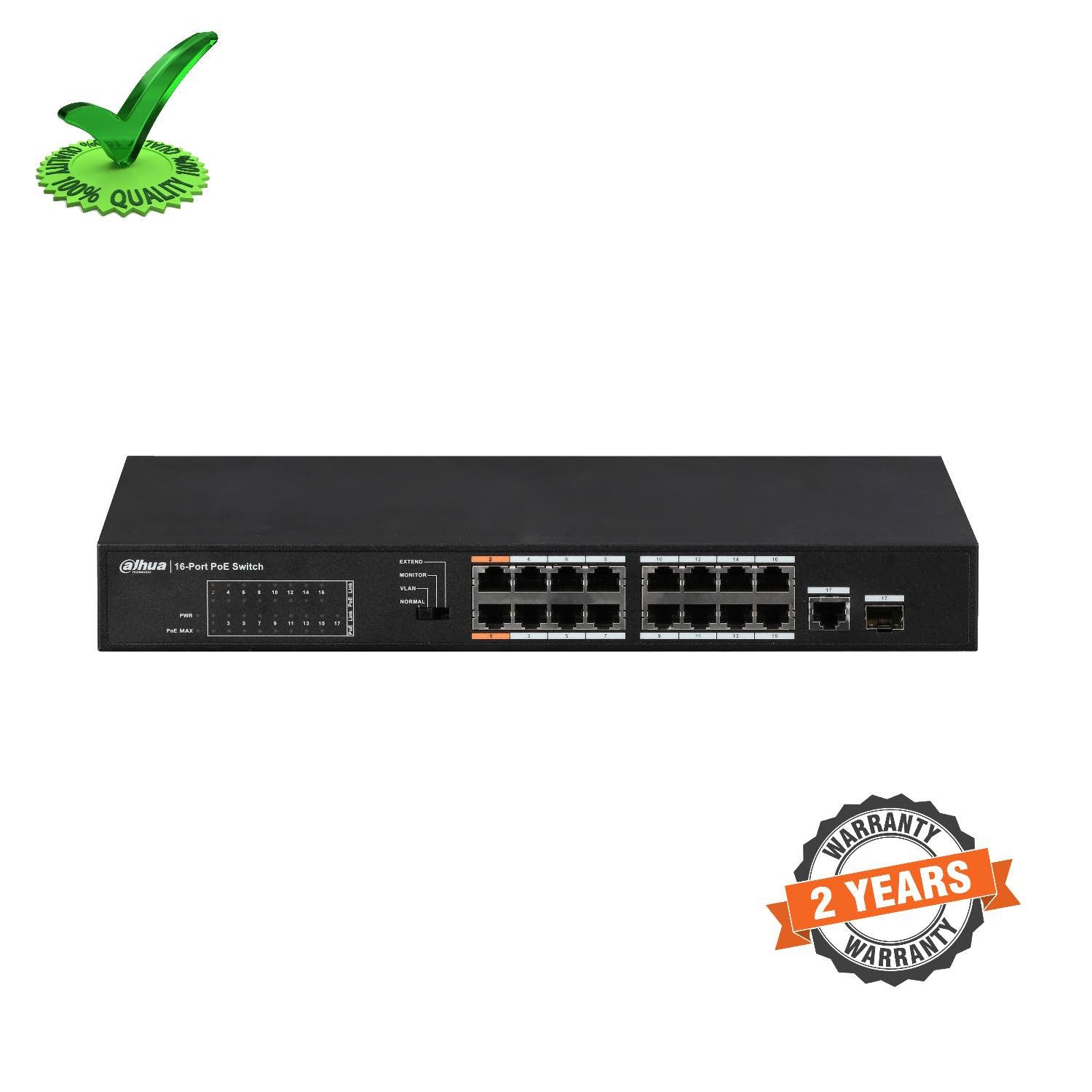

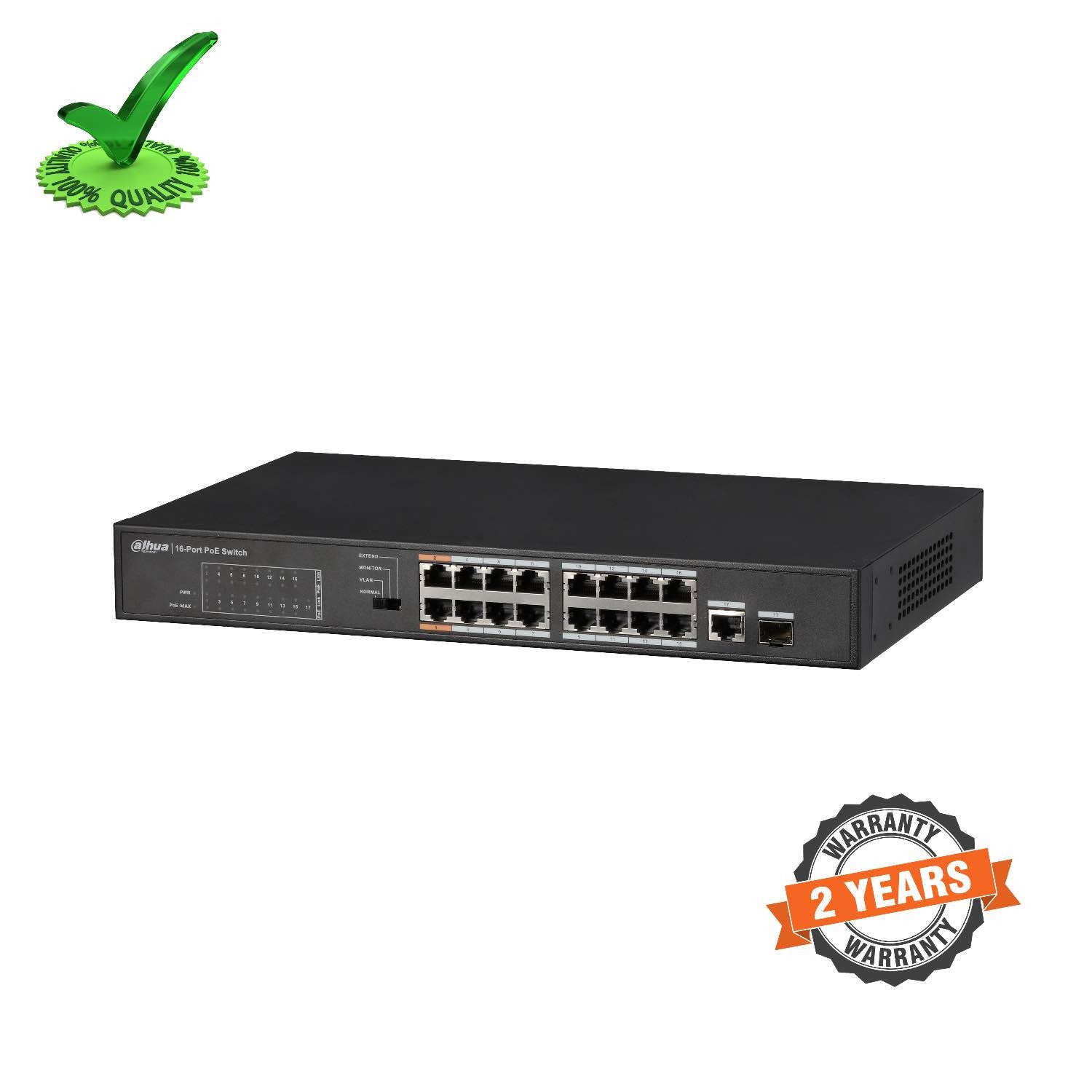

Dahua DH-PFS3117-16ET-135 16-Port FE PoE 1-Port Gigabit PoE Switch
Dahua DH-PFS3117-16ET-135 16-Port FE PoE+ 1-Port Gigabit PoE Switch
- Compliant IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, standards
- Supports IEEE802.3af, IEEE802.3at, Hi-PoE standards
- Supports normal working mode, port isolation (VLAN) mode, monitoring mode, network extend mode.
- Supports Store-and-Forward
- 16*10/100Mbps ports, 1*Gigabit Combo port, support port auto flipping (Auto MDI / MDIX)
- Port 1-2 support the maximum power of 60W, PoE output total power up to 135W
- Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- 4K entry MAC address table with auto-learning and auto-aging
- LED indicators for monitoring power, link and activity
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Dahua DH-PFS3117-16ET-135 16-Port FE PoE+ 1-Port Gigabit PoE Switch
Technical Specification
Model DH-PFS3117-16ET-135
- Standards : IEEE 802.3, IEEE 802.3u, IEEE802.3ab,
- IEEE802.3z,IEEE802.3x, IEEE802.3af, IEEE802.3at, Hi-PoE
- Interface : 16 x 10/100Mbps RJ45, 1 x Gigabit Combo (RJ45/SFP)
- Transfer Method : Store-and-Forward
- Switching Capacity : 5.2Gbps
- Packet Forwarding Rate : 3.87Mpps
- Packet Buffer : 2.75Mbit
- PoE Ports(RJ45) : Port 1/2 : Hi-PoE/PoE+/PoE;Port 1-16 : PoE+/PoE
- Power Pin Assignment : 1 to 2 port: 1/2/4/5 (+), 3/6/7/8 (-), Other PoE port: 4/5 (+), 7/8 (-)
- PoE Budget : 135W
- Default mode : All ports can communicate with each other
- Isolation mode : PoE port cannot communicate with each other, but can communicate with the uplink Combo port
Mode
- CCTV mode : 1 to 8 ports support port priority, optimize port cache, switch all ports can communicate with each other
- Extender mode : 1 to 8 port rate down to 10Mbps, the farthest transmission distance of up to 250 meters, all ports can communicate with each other
Indicators
- Per Device : Power: Green MAX : Red
- Per Port : Link/Act: Green PoE: Yellow
- Power Supply : AC 100V~240V 50/60HZ
- Dimensions (W×D×H): 340*200*43mm(13”metal case)
- Environment : Operating Temperature: 0°C ~ 45°C, Storage Temperature: -40°C ~ 70°C, Operating Humidity: 10%~90% RH No condensation, Storage humidity: 5%~90% RH No condensation
Accessories
Other Model
- PFT3950 : 1.25G 850nm,500m,LC, Multi-mode
- PFT3960 : 1.25G 1310/1550nm,20km,LC, Single-mode
- PFT3970 : 1.25G 1550/1310nm,20km,LC, Single-mode
Extra Information
- SKU: DHPFS311716ET
- Warranty: 2 Years
- Brand: Dahua
- Technology: IP
- Product Type: POE
- PDF: View PDF
