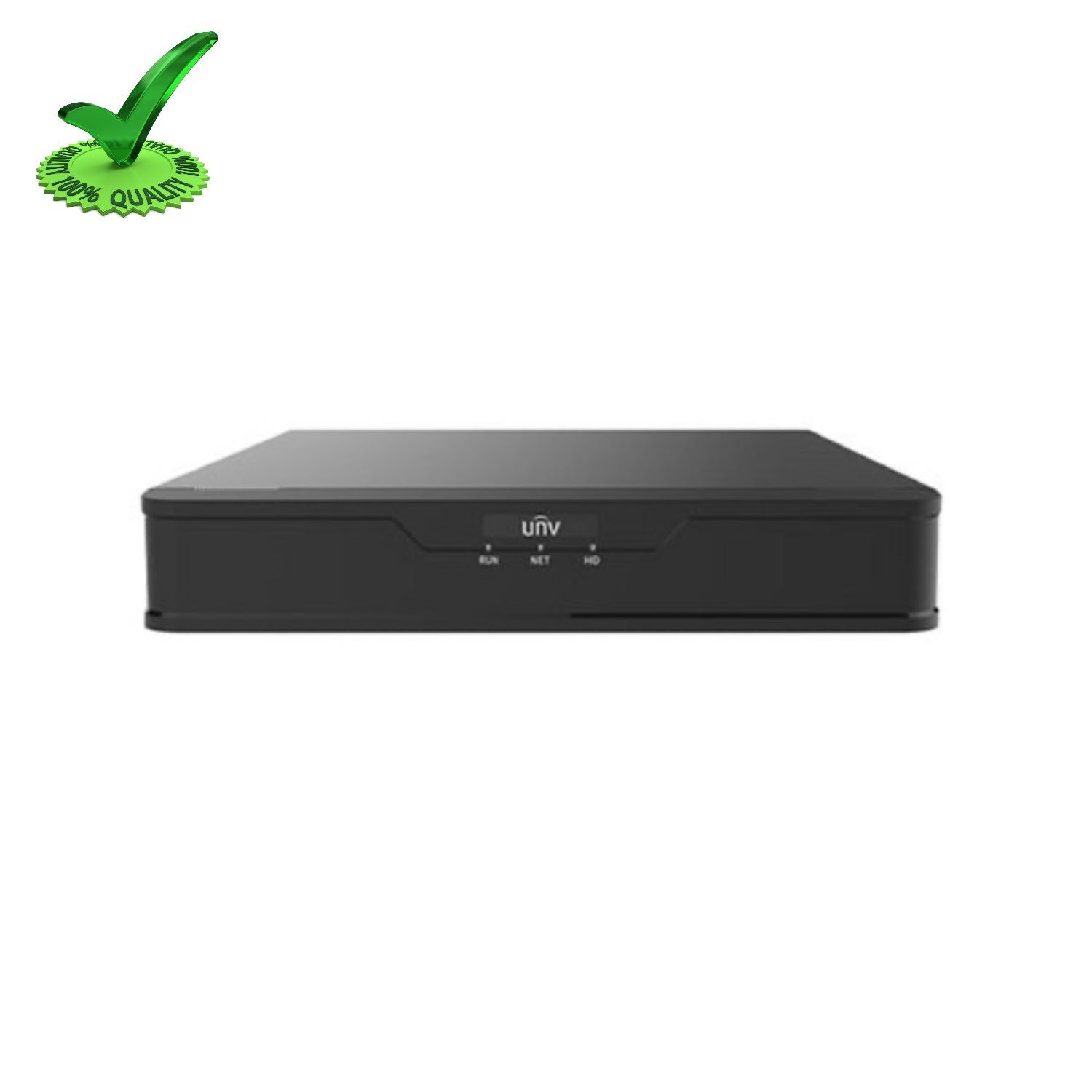

Uniview NVR301-16S3 16Ch HD Network Video Recorder
Short Description
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
- Description
- Reviews
Specifications for Uniview NVR301-16S3 16Ch NVR
|
Decoding |
Description |
|
Decoding Format |
Ultra 265, H.265, H.264 |
|
Decoding Capability |
NVR301-04S3:1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25 NVR301-08S3:1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30 NVR301-16S3:1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30, 16 x D1@25 |
|
Audio Compression |
G.711A, G.711U |
|
Network |
Description |
|
Incoming Bandwidth |
64Mbps |
|
Outgoing Bandwidth |
48Mbps |
|
Remote Users |
128 |
|
Protocols |
TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SMTP;RTSP |
|
Browser(Plugin) |
Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) |
|
Video/Audio Input |
Description |
|
IP Video Input |
NVR301-04S3:4-ch NVR301-08S3:8-ch NVR301-16S3:16-ch |
|
Video/Audio Output |
Description |
|
HDMI Output |
HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
VGA Output |
VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
3.5mm Audio Output |
1-ch |
|
Liveview Display |
NVR301-04S3:1/4 NVR301-08S3:1/4/6/8/9 NVR301-16S3:1/4/6/8/9/16 |
|
Corridor Mode Screen |
NVR301-04S3:3/4 NVR301-08S3:3/4/5/7/9 NVR301-16S3:3/4/5/7/9/10/12/16 |
|
Snapshot |
Description |
|
FTP/Schedule/Event Snapshot |
1-ch snapshot, up to D1 resolution |
|
Recording |
Description |
|
Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
|
Synchronous Playback in Local |
NVR301-04S3:4-ch NVR301-08S3:8-ch NVR301-16S3:16-ch |
|
Smart |
Description |
|
VCA Detection by IPC |
Face Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD) |
|
VCA Search |
Behavior Search |
|
Smart by IPC |
Total 4-ch(Face Detection, SIP, UMD) |
|
Capacity of Snapshot Records |
2 millions records for face snapshot |
|
Alarm |
Description |
|
General Alarm |
Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection |
|
Alert Alarm |
IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal |
|
GUI Language |
Description |
|
GUI Language |
21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian |
|
Hard Disk |
Description |
|
SATA |
1 SATA Interface |
|
Capacity |
Up to 10TB for each HDD(The maximum HDD capacity varies with environment temperature and hard disk size) |
|
External Interface |
Description |
|
Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet Interface |
|
USB |
Rear panel: 2 x USB2.0 |
|
RS485 |
N/A |
|
RS232 |
N/A |
|
Alarm In |
N/A |
|
Alarm Out |
N/A |
|
Power Supply |
DC 12V/2A |
|
Working Environment |
Description |
|
Working Temperature |
-10 °C ~ 55 °C (14 °F ~ 131 °F) |
|
Working Humidity |
≤ 90% RH (non-condensing) |
|
Power Consumption (without HD D) |
≤ 5W |
|
Dimensions |
Description |
|
Weight (without HDD) |
≤ 0.98Kg (2.16lb) |
|
Dimensions |
260mm × 240mm × 46mm (10.2"×9.4"×1.8") |
|
Certification |
Description |
|
Certification |
CE;FCC;UL;RoHS;WEEE |
|
CE |
EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
|
FCC |
Part15 Subpart B |
Specifications
Video/Audio Input
- IP Video Input : 16-ch
Network
- Incoming Bandwidth : 64Mbps
- Outgoing Bandwidth : 48Mbps
- Remote Users : 128
- Protocols : P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
- HDMI/VGA Output : HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- Recording Resolution : 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Audio Output : 1-ch, 3.5mm
- Synchronous Playback : 16-ch
- Corridor Mode Screen : 3/4/5/7/9/10/12/16
Decoding
- Decoding format : Ultra 265/H.265/H.264
- Liveview/Playback : 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Capability : 1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4x 1080p@30, 8 x 720p@30, 16 x D1@25
Hard Disk
- SATA : 1 SATA interface
- Capacity : up to 6TB for each disk
External Interface
- Network Interface : 1 RJ45 10M/100M self-adaptive Ethernet Interface
- USB Interface : Rear panel: 2 x USB2.0
General
- Power Supply : 12V DC
- Power Consumption : ≤5 W (without HDD)
- Working Environment : -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
- Dimensions (W×D×H) : 260mm × 240mm × 46mm (10.2"×9.4"×1.8 ")
- Weight (without HDD) : ≤0.98kg (2.16 lb)
