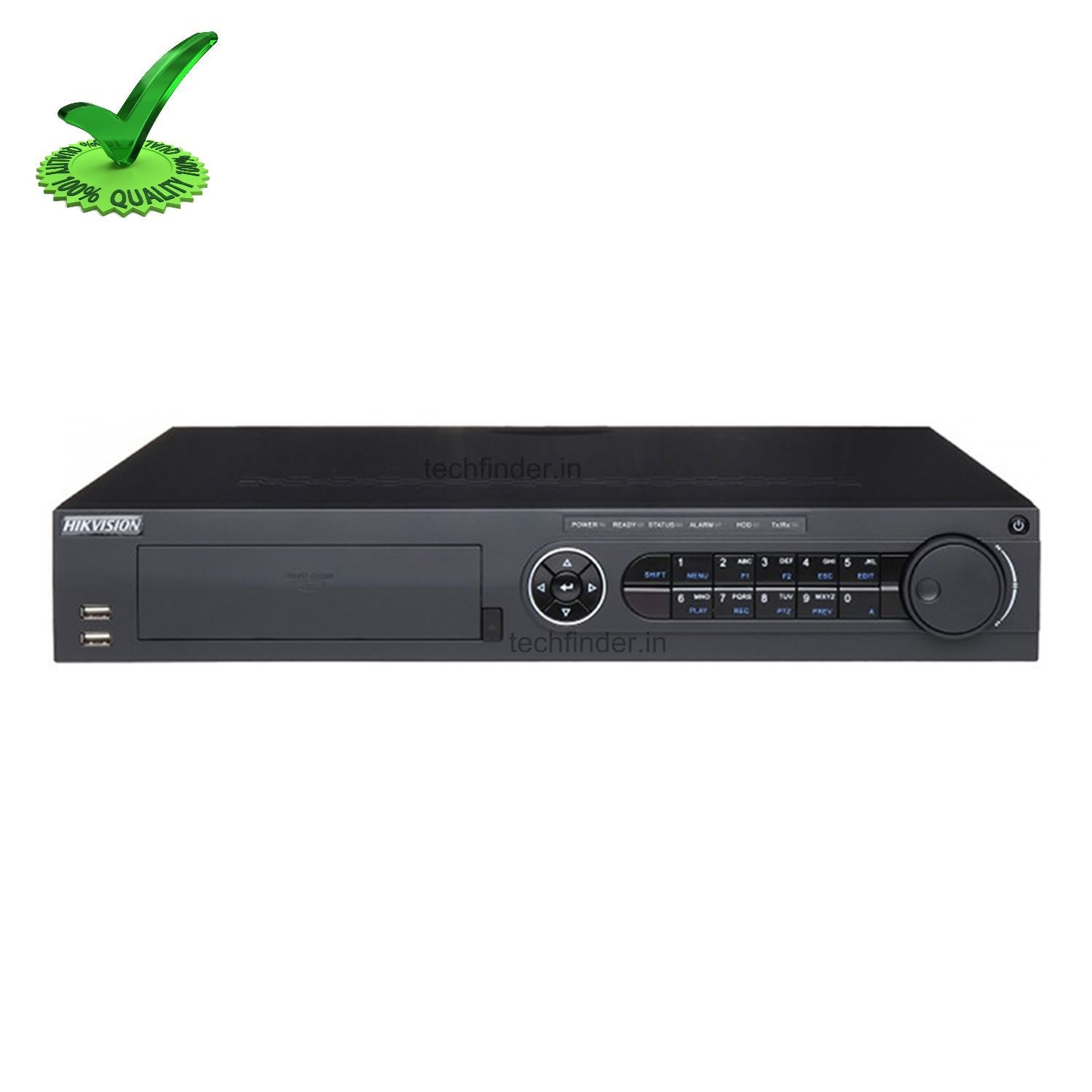

Hikvision DS-7332HUHI-K4 32Ch Hybrid HD Turbo DVR

Video Input and Transmission

• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Up to 6 MP IP cameras input
• Long distance transmission over UTP and coaxial cable

Compression and Recording

• H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
• Connectable to H.265+/H.265/H.264+/H.264 IP cameras
• H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
• Supports 4 MP lite
• Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
• Supports POS triggered recording and POS information overlay

Video Output

• Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 ×2160) resolution
• Separate CVBS output

Storage and Playback

• Four SATA interfaces (up to 8 TB capacity per HDD) and 1 eSATA interface
• 16-ch synchronous playback
• Smart search for efficient playback
• Supports playback by main stream, or sub-stream for IP cameras
• Supports third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

• Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• Supports 4-ch line crossing detection and intrusion detection, and 1-ch sudden scene change detection
• VQD (Video Quality Diagnostics)
• Supports PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access

• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• One RJ45 10M/100M/1000M Ethernet network interface
• Output bandwidth limit configurable

Specifications

Model : DS-7324HQHI-K4 DS-7332HQHI-K4

Video/Audio input

• Video compression : H.265+/H.265/H.264+/H.264
• Analog video input : 24-ch, 32-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI input : 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60, Note: The 3 MP signal input is only available for channel 1/2/3/4.
• AHD input : 4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI input : 1080p25, 1080p30, 720p25, 720p30
• CVBS input : PAL/NTSC
• IP video input : 8-ch (up to 32-ch) 8-ch (up to 40-ch), Up to 6 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras
• Audio compression : G.711u
• Audio input : 4-ch, RCA (2.0 Vp-p, 1 KΩ)

Video/Audio output

• CVBS output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• HDMI1/VGA output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI2 output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Encoding resolution : When 1080p Lite mode not enabled:4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF, When 1080p Lite mode enabled:4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
• Frame rate : Main stream:When 1080p Lite mode not enabled:For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N), For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps, For 1080p stream access: 1080p/720p@15fps; 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N), For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N), When 1080p Lite mode enabled:For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps, (N), For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps, For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N), For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N), Sub-stream:WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
• Video bit rate : 32 Kbps to 6 Mbps
• Audio output : 1-ch, RCA (Linear, 1 KΩ)
• Audio bit rate : 64 Kbps
• Dual stream : Support
• Stream type : Video, Video & Audio
• Synchronous playback : 16-ch

Network management

• Remote connections : 128
• Network protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Hard disk

• SATA : 4 SATA interfaces
• eSATA : Support
• Capacity : Up to 8 TB capacity for each disk

External interface

• Two-way audio input : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
• Network interface : 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
• USB interface : Front panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0
• Serial interface : RS-232, RS-485 (full-duplex), Keyboard
• Alarm in/out : 16/4

General

• Power supply : 100 to 240 VAC
• Consumption(without HDD) : ≤ 45 W
• Working temperature : -10 ºC to +55 ºC (+14 ºF to +131 ºF)
• Working humidity : 10% to 90%
• Dimensions(W × D × H) : 440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)
• Weight(without HDD) : ≤ 7 kg (15.4 lb)

Extra Information

• SKU: DS7332HUHIK4
• Warranty: 2 Years
• Brand: Hikvision
• Technology: Analogue
• Product Type: DVR/XVR
• PDF: View PDF
