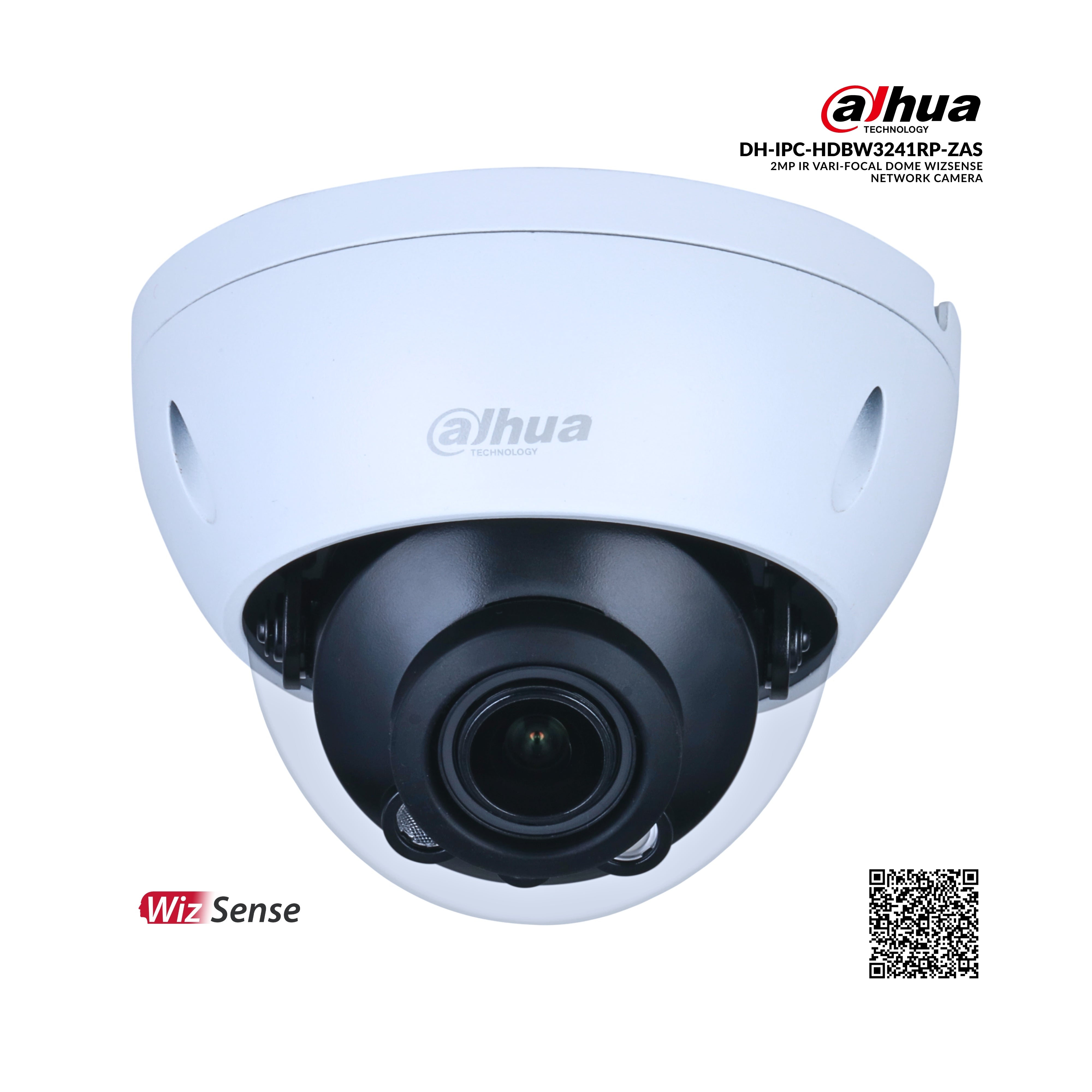

Dahua DH-IPC-HDBW3241R-ZAS 2MP IR 2.7mm - 13.5mm Vari-focal IP Dome WizSense Network Camera
Key Features
- 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
- Outputs max. 2MP (1920 × 1080)@30 fps
- H.265 codec, high compression rate, low bit rate
- Built-in IR LED, max. IR distance: 40 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
- Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card
- 12V DC/POE power supply
- IP67, IK10 protection
- SMD Plus
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Technical Specification
|
Video Bit Rate |
H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
120 dB |
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D DNR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Region of Interest(RoI) |
Yes (4 areas) |
|
Smart Illumination |
Yes |
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.) |
|
Mirror |
Yes |
|
Privacy Masking |
4 areas |
Camera
|
Image Sensor |
1/2.8” 2Megapixel progressive CMOS |
|
Max. Resolution |
1920 (H) ×1080 (V) |
|
ROM |
128 MB |
|
RAM |
256 MB |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
|
Min. Illumination |
0.002 Lux@F1.5 (Color, 30IRE) 0.0002 Lux@F1.5 (B/W, 30IRE) 0 Lux (Illuminator on) |
|
S/N Ratio |
> 56 dB |
|
Illumination Distance |
40 m (131.23 ft) |
|
Illuminator On/Off Control |
Auto/Manual |
|
Illuminator Number |
2 (IR LED) |
|
Pan/Tilt/Rotation Range |
Pan: 0°–355°; Tilt: 0°–75°; Rotation: 0°–355° |
Lens
|
Lens Type |
Motorized vari-focal |
||||
|
Mount Type |
φ14 |
||||
|
Focal Length |
2.7 mm–13.5 mm |
||||
|
Max. Aperture |
F1.5 |
||||
|
Field of View |
Horizontal: 108°–28° Vertical: 57° –16° Diagonal: 130° –33° |
||||
|
Iris Type |
Fixed |
||||
|
Close Focus Distance |
0.8 m (2.6 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
W |
44.1 m (144.7 ft) |
17.6 m (57.7 ft) |
8.8 m (28.9 ft) |
4.4 m (14.4 ft) |
|
|
T |
153.1 m (502.3 ft) |
61.2 m (200.8 ft) |
30.6 m (82.9 ft) |
15.3 m (50.2 ft) |
|
Professional, Intelligent
|
Perimeter Protection |
Tripwire; intrusion (Recognition of human and vehicle) |
|
Intelligent Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
|
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG(only supported by sub stream) |
|
Smart Codec |
Smart H.265+/ Smart H.264+ |
|
Video Frame Rate |
Main stream (1920 × 1080@1–25/30 fps) sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps) third stream (1280 × 720@1–25/30 fps) |
|
Stream Capability |
3 streams |
|
Resolution |
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|
Bit Rate Control |
CBR/VBR |
Video
Audio Alarm
|
Audio Compression |
G.711a; G.711Mu; G726 |
|
Alarm Event |
No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; input abnormal; intensity change; tripwire; intrusion; SMD |
Network
|
Network |
RJ-45 (10/100 Base-T) |
|
SDK and API |
Yes |
|
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
|
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
|
Interoperability |
ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone; Genetec |
|
Scene Self-adaptation (SSA) |
Yes |
|
User/Host |
20 (Total bandwidth: 64 M) |
|
Storage |
FTP; SFTP; Micro SD Card (support max. 256 G); NAS |
|
Browser |
IE: IE8, IE9, IE11 Chrome Firefox |
|
Management Software |
Smart PSS, DSS, DMSS |
|
Mobile Phone |
IOS; Android |
Certification
Accessories
|
|
|
|
Certifications |
CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
|
Port |
|
|
Audio Input |
1-channel (RCA port) |
|
Audio Output |
1-channel (RCA port) |
|
Alarm Input |
1 channel in: 5mA 3V–5V DC |
|
Alarm Output |
1 channel out: 300mA 12V DC |
|
Power |
|
|
Power Supply |
12V DC/PoE (802.3af) |
|
Power Consumption |
<8W |
|
Environment |
|
|
Operating Conditions |
-30°C to +60°C (-22°F to +140°F)/less than 95% |
|
Storage Conditions |
-40°C to +60°C (-40°F to +140°F) |
|
Protection Grade |
IP67; IK10 |
|
Structure |
|
|
Casing |
Metal |
|
Dimensions |
Φ122 mm × 88.9 mm (Φ4.8" × 3.5") |
|
Net Weight |
492 g (1.1 lb) |
|
Gross Weight |
663 g (1.5 lb) |
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Series Overview
With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
Functions
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.
Starlight
Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect.
Cyber Security
Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
