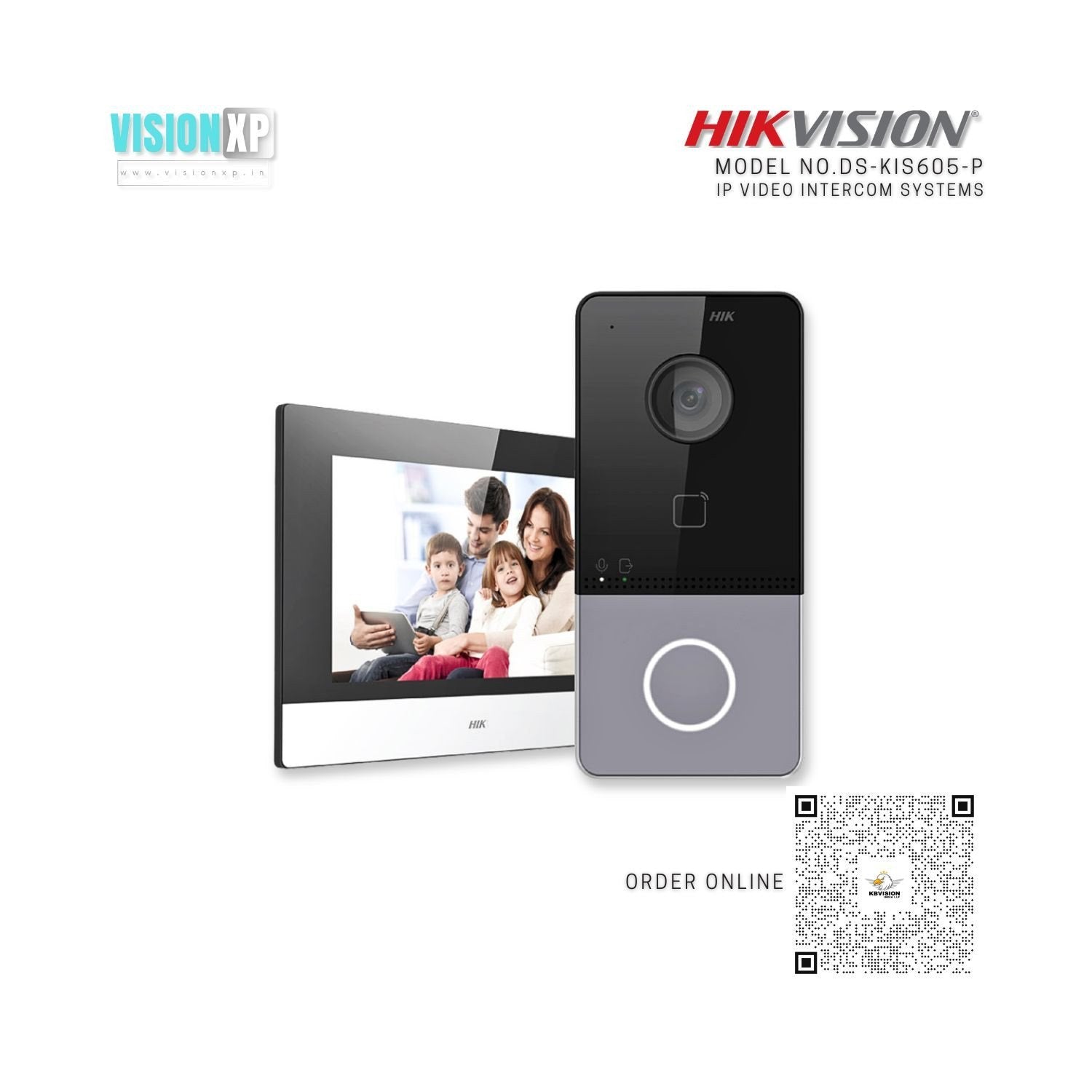

Hikvision DS-KIS605-P IP Video Door Phone Intercom Systems
Key Features
Indoor Station
- User friendly design
- 7-inch colorful touch screen with resolution 1024 × 600
- Standard PoE
- Views live video of door stations and linked cameras
Villa Door Station
- Standard PoE
- 2 MP HD Camera
- Noise suppression and echo cancellation
- Low illumination
- Access control functions
- Tamper-proof
- Configuration remotely via Web
- 2.4 GHz Wi-Fi
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Specification
|
Door station |
|
|
Camera |
2MP HD camera |
|
Resolution |
Main stream: 1920 × 1080p, 720p Sub stream: 704 × 576 |
|
Night vision |
Low illumination IR supplement mode:3 m |
|
WDR |
True WDR |
|
Field of view |
Horizontal: 129 ° Vertical: 75° |
|
Video Compression Standard |
H.264 |
|
Stream |
Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps |
|
Motion detection |
Support |
|
BLC |
Support |
|
DNR |
Support |
|
Anti-flicker frequency |
50 Hz, 60 Hz |
|
Door station |
|
|
Audio input |
Built-in omnidirectional microphone |
|
Audio output |
Built-in loudspeaker |
|
Audio quality |
Noise suppression and echo cancellation |
|
Audio compression standard |
G.711 U |
|
Audio compression Rate |
64 Kbps |
|
Audio intercom |
Two-way audio communication |
|
Door station |
|
|
RS-485 |
1 |
|
Alarm input |
4 |
|
Debugging port |
1 |
|
Grounding |
1 |
|
TAMPER switch |
1 |
|
Door station |
|
|
Power consumption |
＜ 10 W |
|
Working temperature |
-40 ° C to +53 ° C(-40° F to 127.4° F) |
|
Working humidity |
10% to 95% |
|
Dimension |
138 mm × 65 mm × 27 mm |
|
Installation |
Surface mounting |
|
Protection level |
IP65 |
|
Button |
1 |
|
Indicator |
2 |
|
Power supply |
IEEE802.3af, standard PoE 12 VDC |
|
Door station |
|
|
Operation system |
Embedded Linux operation system |
|
Operation mode |
Single-button |
|
Flash |
16 M, 32 M |
|
RAM |
256 M |
|
Door station |
|
|
Relay |
1 |
|
Reading frequency |
13.56 MHz |
|
Door station |
|
|
Network protocol |
TCP/IP, RSTP |
|
Wired network |
10/100 Mbps Ethernet |
|
Indoor station |
|
|
Display screen |
7-inch TFT LCD |
|
Display resolution |
1024 × 600 |
|
Operation method |
Capactive touch |
|
Indoor station |
|
|
Audio input |
Build-in omnidirectonal microphone |
|
Audio output |
Built-in loudspeaker |
|
Audio quality |
Noise suppression and echo cancellation |
|
Audio compression standard |
G.711U, G.711A |
|
Audio compression Rate |
64 Kbps |
|
Indoor station |
|
|
Network interface |
RJ45, standard PoE for power supply |
|
RS-485 |
1(Reserved) |
|
Alarm input |
8 zones |
|
Relay output |
2(Reserved) |
|
Power input |
2 pins |
|
Indoor station |
|
|
Power supply |
12 VDC or standard PoE |
|
Power consumption |
≤ 6 W |
|
Working temperature |
-10 ° C to 50 ° C (-14 °F to 122 °F) |
|
Working humidity |
0% to 90% |
|
Dimensions (W × H × D) |
200 mm × 140 mm × 15.1 mm (7.87" × 5.51" × 0.59") |
|
Installation |
Wall mounting |
|
Weight |
683 g (with packaging) 355 g (without packaging) |
|
Indoor station |
|
|
Operation system |
Embedded RTOS operation system |
|
Memory |
64 MB |
|
Flash |
16 MB |
|
Indoor station |
|
|
Wired network |
10/100 Mbps self-adaptive |
|
Protocol |
TCP/IP, SIP, RTSP |
|
|
|||
|
5 |
Power Terminal |
15 |
Debugging Port |
|
6 |
Loudspeak er |
16 |
TAMPER |
|
7 |
Alarm Terminal |
17 |
Set Screw |
|
8 |
Microphon e |
18 |
TF Card Slot |
|
9 |
Camera |
19 |
Network Interface |
|
10 |
Indicator |
|
|
|
No. |
Descriptio n |
No. |
Descriptio n |
|
1 |
Screen |
11 |
Button |
|
2 |
Microphon e |
12 |
Card Reading Area |
|
3 |
Debugging Port |
13 |
Loudspeak er |
|
4 |
Network Interface |
14 |
Terminals |
