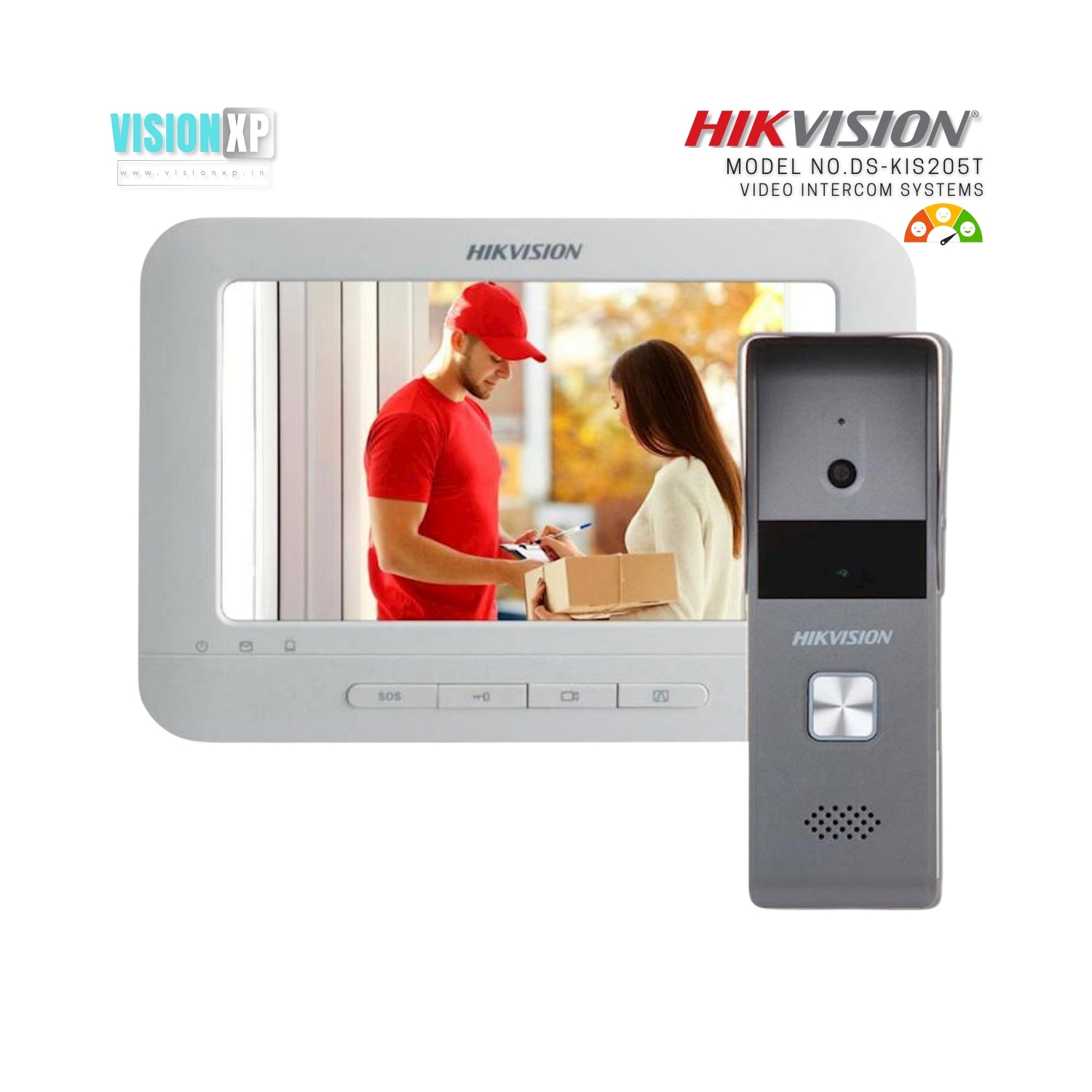

Hikvision DS-KIS205T Video Door Phone Kit

Specifications

Video Door Phone Model DS-KIS205T

Door Station (DS-KB2421-IM)

Video Parameters

• Camera : 1/4” CMOS
• Resolution : 720 × 576
• Video frame rate : PAL: 25 fps

Audio parameters

• Audio input : Built-in Omnidirectional Microphone
• Audio output : Built-in Loudspeaker
• Audio quality : Noise Suppression

Light Supplement

• Light supplement mode : Photosensitive IR Supplement, IR Range: 2 Meters

Device interfaces

• Four-wire interface : 1 Four-Wire Interface (1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding)
• IO output : 1 Relay Output

General

• Material : Zinc Alloy
• Power consumption : Max. 5W
• Working temperature : -30° C to +70° C (-22° F to 158° F)
• Protection : IP 65
• Working humidity : 10% to 90%
• Dimension : (L x W x H) 145mm × 49.2 mm × 26.45 mm (5.7" × 1.9" × 1.0")

Indoor Station (DS-KH2220-S)

Display parameters

• Display screen : 7-Inch Colorful TFT LCD
• Display resolution : 800 × 480
• Operation method : Physical Button

Audio parameters

• Audio input : Built-in Omnidirectional Microphone
• Audio output : Built-in Loudspeaker
• Audio quality : Noise Suppression and Echo Cancellation

Device interfaces

• 4 Four-Wire Interfaces : Four-wire interface / 1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding

General

• Power supply : 12 VDC
• Power consumption : ≤5 W
• Working temperature : -10° C to + 55° C (14° F to 131° F)
• Working humidity : 10% to 90%
• Dimension : (L x W x H) 195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")

Hikvision DS-KIS205T Video Door Phone

Other Main Features

Door Station

• Self-adaptive IR supplement
• One-touch calling
• Pinhole camera with 720 x 576 @ 25 fps
• Unlock controlling
• IP65

Indoor Station

• Hands-free video intercom communication
• Supports monitoring the door station and the external analog camera
• Supports image capture (Max. 200) and overwrite when exceed 200， Supports Picture Storage
• Supports captured image playback
• Remote unlocking
• Convenient installation and easy operation
• Typical Application

Hikvision VDP DS-KIS205T offers Innovative Analog Video Solution tailored for villas and homes

Hikvision VDP DS-KIS205T is a breakthrough in Analog Video Door Phone Technology In an age when security and seamless communication are paramount for modern residences, the DS-KIS205T stands out as an innovative analog video solution tailored for villas and homes. Designed with precision and practicality in mind, this system integrates robust features and a user-friendly interface to deliver reliable performance in various environmental conditions. Below is an in-depth look at the DS-KIS205T and its award-winning features.

Uncompromising Visual and Audio Performance At the heart of the DS-KIS205T is its commitment to providing clear, high-quality visual and audio communication. The door station of this system is equipped with a high-definition camera that supports a stream resolution of 1280 x 720 at 60 frames per second. This impressive resolution ensures that every detail is captured with exceptional clarity, making it easy for homeowners to distinguish between familiar faces and potential intruders. Complementing the video is a built-in omnidirectional microphone and a loudspeaker, both engineered to deliver crystal-clear two-way audio. Whether it’s a brief greeting or a detailed conversation, the audio performance ensures effective communication. To further enhance the viewing experience, the door station boasts a wide field of view with 130° horizontally and 70° vertically, which minimizes blind spots and provides a comprehensive view of the entry area. The supplementary IR light ensures that even in low-light conditions—up to a distance of 3 meters—the system captures clear, usable images. Intelligent Design for Modern Installations The DS-KIS205T is offered as a Four-Wire Analog Bundle, making it particularly suitable for residential applications where simplicity and reliability are key. The kit includes essential components such as the DS-KB2412T-IM and DS-KH2220-S indoor unit, along with a 5-meter four-wire cable and other necessary accessories, ensuring a complete solution right out of the box.

Indoor Station Highlights

Display & Interface: The indoor station features a 7-inch colorful TFT LCD with a resolution of 800 x 480, delivering an intuitive and responsive user interface. The physical button operation method provides tactile feedback, making it simple for residents of all ages to use.

Audio Excellence: With built-in omnidirectional microphones and loudspeakers, the indoor unit employs noise suppression and echo cancellation to ensure that communications remain clear and free of interference.

Compact & Efficient: The indoor unit is designed to be both compact and energy-efficient, consuming no more than 5W, which makes it an eco-friendly addition to any home.

Door Station Features

Rugged and Reliable: Constructed from durable plastic, the door station is built for long-term use. With an overall power consumption of ≤ 4W, it offers reliable performance without drawing excessive power.

Lock Control Capability: Integrated with a relay that supports up to 30V and 1A, the door station can interface with door locks, enabling secure, remote unlocking when authorized.

Ease of Installation: With dimensions of approximately 50.94 mm x 135.94 mm x 20 mm, the door station is designed for surface mounting, making installation straightforward and minimally invasive.

Performance in Extreme Conditions: The DS-KIS205T is engineered to perform reliably across a broad range of temperatures and humidity levels. The door station operates efficiently between –30°C and 60°C, ensuring functionality in both harsh winters and scorching summers. Additionally, its humidity tolerance of 10% to 90% (non-condensing) makes it well-suited for diverse climatic regions. Similarly, the indoor station maintains consistent performance between -10°C and +55°C, proving its resilience and suitability for various installation environments.

Seamless Integration and User-Centric Design:  One of the standout aspects of the DS-KIS205T is its ability to integrate effortlessly into modern home environments. The analog Video Door Phone system is not just about video and audio communication; it also supports picture storage functions that allow residents to review past interactions. With a single call button design, it simplifies the user experience, ensuring that even the less tech-savvy homeowners can easily manage visitor communications. The DS-KIS205T is also designed to work harmoniously with other security and home automation systems. Whether it’s integrating with external digital door locks via its lock control relay or syncing with CCTV networks for comprehensive monitoring, this system offers a versatile solution that can evolve with the security needs of a modern home.

Enhanced Security and Peace of Mind: The DS-KIS205T delivers a robust security solution by combining high-definition video capture, clear audio communication, and intelligent design features. Homeowners benefit from the enhanced security that comes with real-time visitor verification and the ability to remotely manage access. Whether facing harsh weather or operating in extreme temperatures, the system’s rugged construction ensures consistent performance and peace of mind. Furthermore, the ease of installation and low power consumption make the DS-KIS205T a cost-effective option that doesn’t compromise on quality. Its ability to store images and logs adds an extra layer of security, allowing homeowners to monitor and review all entry attempts.

The DS-KIS205T stands as a testament to innovation in analog video door phone technology. By combining state-of-the-art visual and audio capabilities with a user-friendly design, robust build quality, and efficient energy usage, it sets a new standard for residential communication and security systems. Ideal for villas and modern homes, the DS-KIS205T offers an elegant and reliable solution that enhances security, simplifies visitor management, and integrates seamlessly into today's smart living environments. This award-winning solution is poised to redefine residential security, delivering the perfect blend of functionality, durability, and ease of use that modern homeowners demand.
