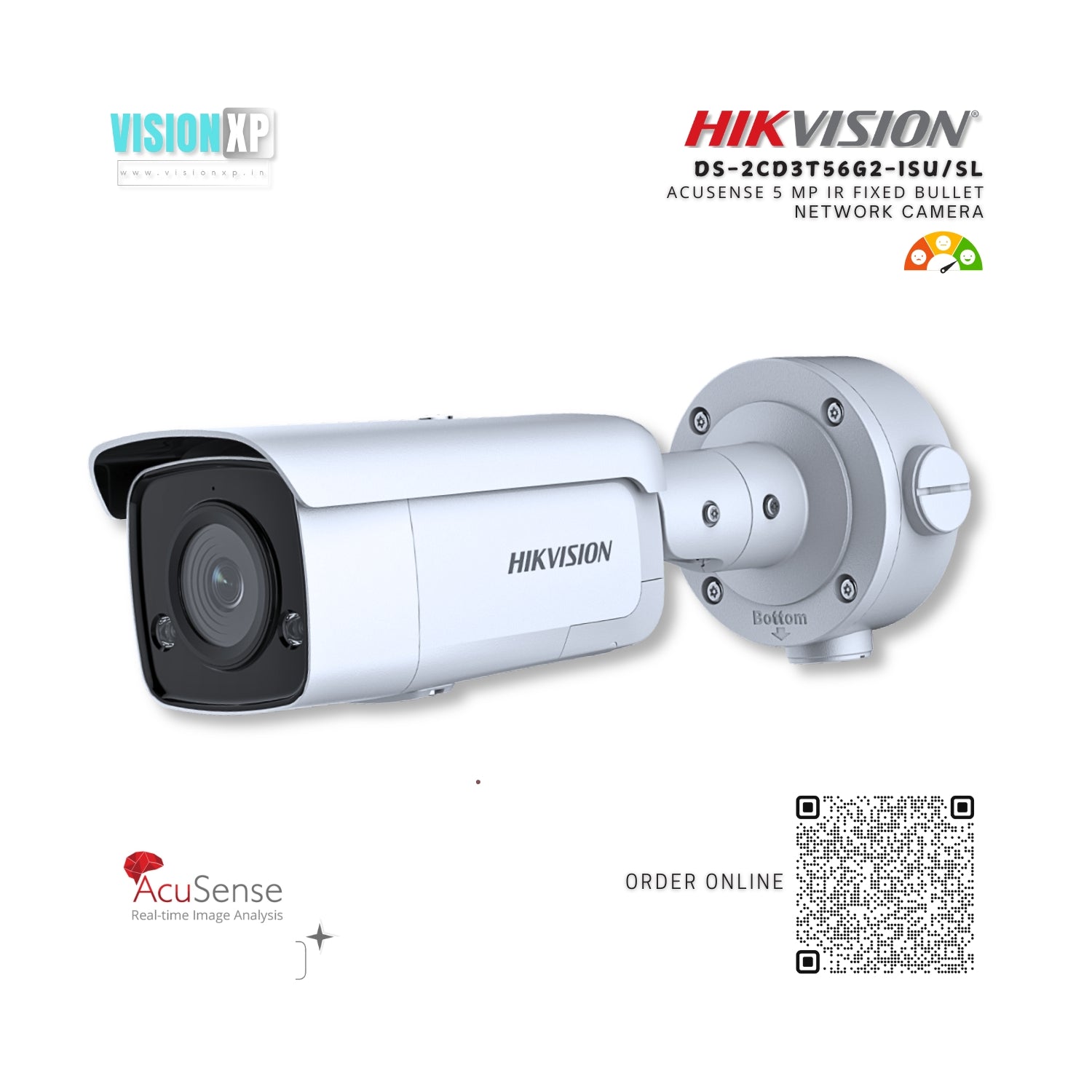

Hikvision DS-2CD3T56G2-ISU/SL AcuSense 5 MP IR Fixed Bullet Network Camera
Notes : ask before order
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Key Features
- High quality imaging with 5 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
- Water and dust resistant (IP67)
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
|
Camera |
|
|
Image Sensor |
1/2.7" Progressive Scan CMOS |
|
Min. Illumination |
Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/100,000 s |
|
Slow Shutter |
Yes |
|
P/N |
P/N |
|
Wide Dynamic Range |
120 dB |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
|
Lens |
|
|
Lens Type |
Fixed focal lens, 2.8, 4, and 6 mm optional |
|
Iris Type |
Fixed |
|
Lens Mount |
M12 |
|
Focal Length & FOV |
2.8 mm, horizontal FOV 98°, vertical FOV 72°, diagonal FOV 131° 4 mm, horizontal FOV 80°, vertical FOV 58°, diagonal FOV 104° 6 mm, horizontal FOV 51°, vertical FOV 37°, diagonal FOV 66° |
|
Aperture |
F1.4 |
|
DORI |
|
|
DORI |
2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm: D: 126 m, O: 50 m, R: 25 m, I: 12 m |
|
Illuminator |
|
|
Supplement Light Type |
IR |
|
IR Range |
Up to 60 m |
|
IR Wavelength |
850 nm |
|
Smart Supplement Light |
Yes |
|
Visual Alarm |
Yes |
|
Video |
|
|
Max. Resolution |
2592 × 1944 |
|
Main Stream |
50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2592 × 1944) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Third Stream |
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
|
Fourth Stream |
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings. |
|
Video Compression |
Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings. |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
H.264 Type |
Baseline Profile/Main Profile/High Profile |
|
H.265 Type |
Main Profile |
|
H.264+ |
Main stream supports |
|
H.265+ |
Main stream supports |
|
Bit Rate Control |
CBR/VBR |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
Region of Interest (ROI) |
5 fixed regions for main stream and sub-stream |
|
Audio |
|
|
Environment Noise Filtering |
Yes |
|
Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
|
Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|
Network |
|
|
Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
|
Simultaneous Live View |
Up to 6 channels |
|
API |
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets |
|
User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
|
Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|
Client |
iVMS-4200, Hik-Connect, Hik-Central |
|
Web Browser |
Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|
Image |
|
|
SNR |
≥ 52 dB |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Target Cropping |
Yes |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Image Parameters Switch |
Yes |
|
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
|
Interface |
|
|
Alarm |
2 inputs, 2 outputs (max. 24 VDC, 1 A) |
|
Built-in Speaker |
Power: 2 W. Max. sound pressure level: 10 cm: 97 dB. |
|
Built-in Microphone |
Yes |
|
Audio |
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 2.2 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω |
|
On-Board Storage |
Built-in micro SD/SDHC/SDXC slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
Event |
|
|
Basic Event |
Motion detection (human and vehicle targets classification), video tampering alarm, exception |
|
Smart Event |
Unattended baggage detection, object removal detection, scene change detection, audio exception detection |
|
Deep Learning Function |
|
|
Face Capture |
Yes |
|
Perimeter Protection |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
|
General |
|
|
Linkage Method |
Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning |
|
Firmware Version |
V5.5.112 |
|
Web Client Language |
33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
|
General Function |
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
|
Software Reset |
Yes |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Power Supply |
12 VDC ± 25%, reverse polarity protection PoE: 802.3at, Class 4 |
|
Power Consumption and Current |
12 VDC, 0.95 A, max. 12 W PoE (802.3at, 42.5 V to 57 V), 0.31 A to 0.23 A, max. 13 W |
|
Power Interface |
Ø5.5 mm coaxial power plug |
|
Camera Material |
Metal |
|
Camera Dimension |
325.5 × Ø105mm (12.8" × 4.13") |
|
Package Dimension |
386 × 156 × 155 mm (15.2" × 6.1" × 6.1") |
|
Camera Weight |
Approx. 1150 g (2.4 lb.) |
|
With Package Weight |
Approx. 1870 g (3.5 lb.) |
|
Approval |
|
|
EMC |
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015) |
|
Safety |
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2006+A2:2013, IEC 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1) |
|
Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|
Protection |
IP67 (IEC 60529-2013) |
