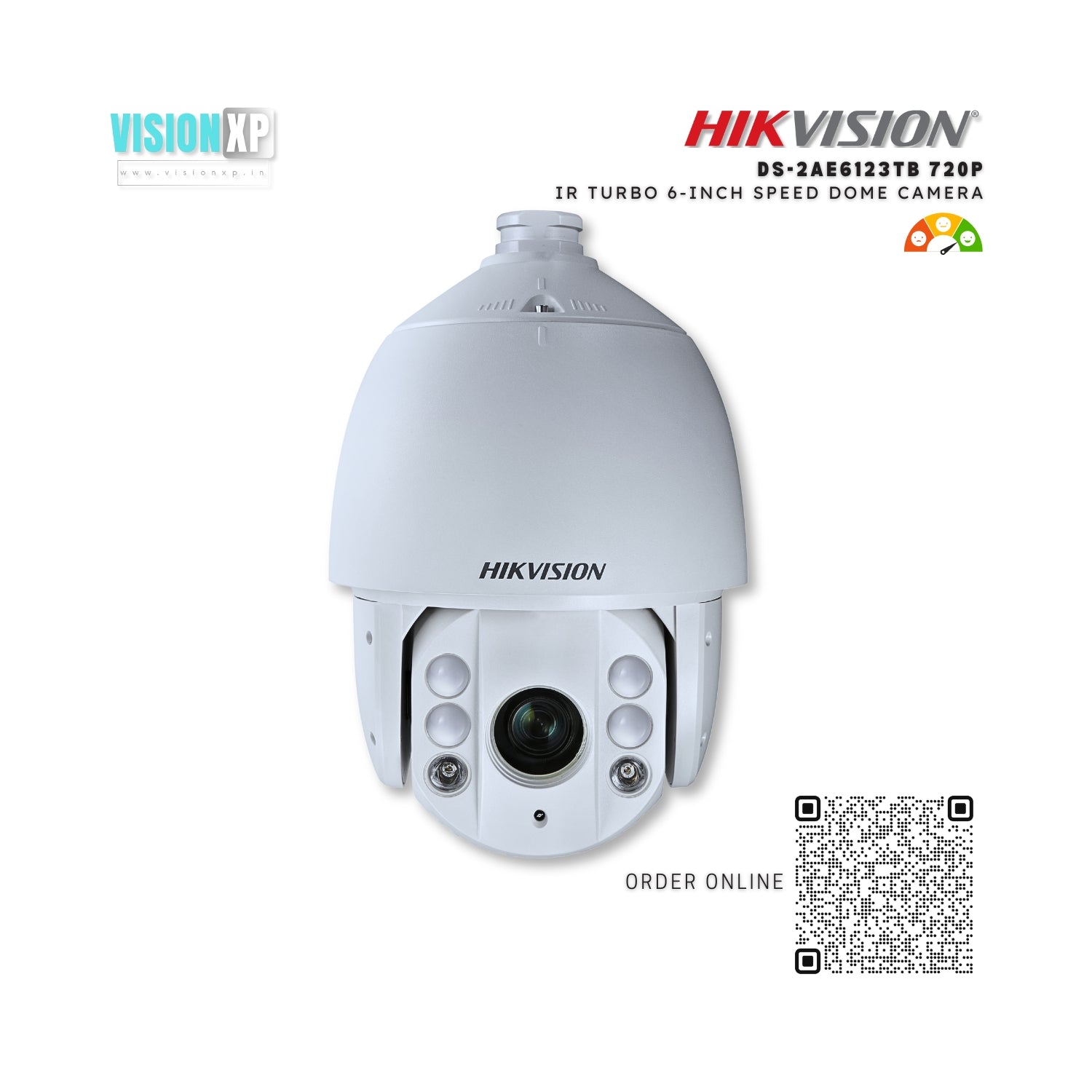

Hikvision DS-2AE6123TB 720p IR Turbo 6-Inch Speed Dome Camera
Hikvision DS-2AE6123TB E Series 6 Inch Turbo White Light HD720p Analog Speed Domes adopt 1/3" CMOS chip. With the 23× optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely applied to places requiring wide-area monitoring display, such as streets, stations, large venues, outside of residential areas, etc.
Key Features
- High performance 1/3" CMOS
- Max. image resolution: 1280 × 720
- Min. illumination: Color: 0.05Lux @ (F1.6, AGC ON); B/W: 0.005Lux @ (F1.6, AGC ON); 0 Lux with White Light
- 23× optical zoom, focal length 4-92mm
- 80m White Light distance
- IR cut filter
- 3D DNR, Digital WDR, BLC
- TVI and CVBS dual output
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
|
Specifications |
|
|
Camera |
|
|
Model |
DS-2AE6123TB-A E Series 6 Inch Turbo White Light HD720p Analog Speed Dome |
|
Image Sensor |
1/3" CMOS |
|
Max. Image Resolution |
1280 × 720 |
|
Frame Rate |
50Hz: 25fps (1280 × 720), 50fps (1280 × 720) 60Hz: 30fps (1280 × 720), 60fps (1280 × 720) |
|
Min. Illumination |
Color: 0.05Lux @ (F1.6, AGC ON) B/W: 0.005Lux @ (F1.6, AGC ON) 0 lux with White Light |
|
White Balance |
Auto/Manual/ATW/Indoor/Outdoor |
|
AGC |
Auto/Manual |
|
S/N Ratio |
> 50dB |
|
DNR |
3D DNR |
|
BLC |
Support |
|
WDR |
Digital WDR |
|
Shutter Time |
PAL: 1/1-1/10,000s; NTSC: 1/1-1/10,000s |
|
Day & Night |
Whole Color |
|
Privacy Mask |
8 privacy masks programmable |
|
Lens |
|
|
Focus Mode |
Auto/Semiautomatic/Manual |
|
Focal Length |
4mm to 92mm, 23× Optical |
|
Aperture Range |
F1.4 to F3.5 |
|
Angle of View |
49° to 2.2° (Wide-Tele) |
|
Min. Working Distance |
10mm to 1000mm (Wide-Tele) |
|
Zoom Speed |
Approx. 3.0s (Optical, Wide-Tele) |
|
Pan and Tilt |
|
|
Pan Range |
360° endless |
|
Pan Speed |
Pan manual speed: 0.1° -120°/s; Pan preset speed: 120°/s |
|
Tilt Range |
-15°-90° (Auto flip) |
|
Tilt Speed |
Tilt manual speed: 0.1°-80°/s; Tilt preset speed: 80°/s |
|
Proportional Zoom |
Rotation speed can be adjusted automatically according to zoom multiples |
|
Patrol |
8 patrols, up to 32 presets per patrol |
|
Pattern |
4 patterns, with the total recording time not less than 10 minutes |
|
Power-off Memory |
Support |
|
Park Action |
Preset/Patrol/Pattern/Pan Scan/Tilt Scan /Random Scan/Frame Scan/Panorama Scan |
|
PTZ Position Display |
ON/OFF |
|
Preset Freezing |
Support |
|
Scheduled Task |
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Frame Scan/Random Scan/Panorama Scan |
|
RS-485 Communication Diagnosis |
Support |
|
WHITE LIGHT |
|
|
White Light Distance |
80m |
|
White Light Intensity |
Automatically adjusted, depending on the zoom ratio |
|
Input/Output |
|
|
Turbo HD Output |
1 turbo HD720p output, NTSC (or PAL) composite, BNC |
|
CVBS Output |
1.0V[p-p]/75Ω, NTSC (or PAL) composite, BNC |
|
RS-485 Interface |
Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
|
UTC function |
HIKVISION_C *Need UTC controller if DVR don’t support UTC function |
|
General |
|
|
Menu Language |
English, Chinese |
|
Power |
24V AC Max.30 W ( White Light : 12W Max) |
|
Working Temperature |
Outdoor: -30°C to 65°C (-22°F to 149°F) |
|
Working Humidity |
90% or less |
|
Protection Level |
IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
Mounting |
Various mounting modes optional |
|
Dimension |
Φ208 × 350mm (Φ8.19”×13.78”) |
|
Weight (approx.) |
2.9Kg (6.39lbs) |
|
Mount Option (outdoor domes only) |
Long-arm wall mount: DS-1602ZJ Corner mount: DS-1602ZJ-corner Pole Mount: DS-1602ZJ-pole Power box mount:DS-1602ZJ-box |
