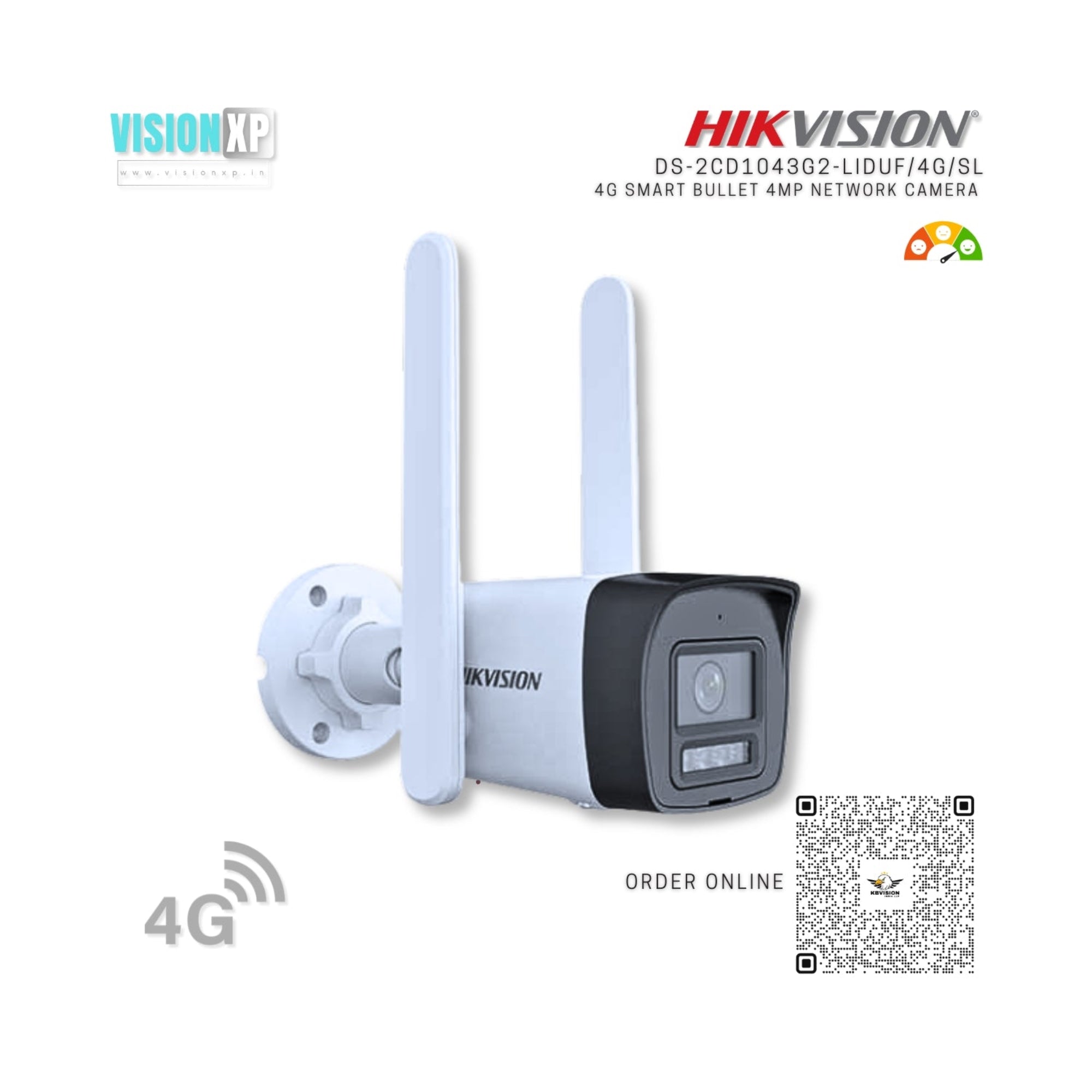

Hikvision DS-2CD1043G2-LIDUF/4G/SL 4MP Smart 4G Network Bullet Camera
Notes : ASK BEFORE ORDER!!!
Key Features
- 4 MP Smart Hybrid Light 4G Fixed Bullet Network Camera
- High quality imaging with 4 MP resolution
- Support Human and Vehicle Detection
- Support 4G LTE data transmission
- Smart Hybrid Light: advanced technology up to 30 meters
- Provide real-time security via built-in two-way audio
- Support on-board storage up to 512 GB (SD card slot)
- Water and dust resistant (IP67)
- Efficient H.265+ compression technology
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
HIKVISION DS-2CD1043G2-LIDUF/4G/SL 4 MP Smart Hybrid Light Fixed Bullet Network Camera
Specification
|
Camera |
|
|
Image Sensor |
1/2.7" Progressive Scan CMOS |
|
Max. Resolution |
2560 × 1440 |
|
Min. Illumination |
Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR |
|
Shutter Time |
1/3 s to 1/100,000 s |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
|
Lens |
|
|
Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
|
Focal Length & FOV |
2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114° 4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85° |
|
Lens Mount |
M12 |
|
Iris Type |
Fixed |
|
Aperture |
F2.2 |
|
DORI |
|
|
DORI |
2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m 4 mm, D: 100 m, O: 39 m, R: 20 m, I: 10 m |
|
Illuminator |
|
|
Supplement Light Type |
IR, White Light |
|
Supplement Light Range |
Up to 30 m |
|
Smart Supplement Light |
Yes |
|
IR Wavelength |
850 nm |
|
Video |
|
|
Main Stream |
50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
|
Sub-Stream |
50 Hz: 20 fps (768 x 432) 60 Hz: 20 fps (768 x 432) |
|
Video Compression |
Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG |
|
Video Bit Rate |
32 Kbps to 8 Mbps |
|
H.264 Type |
Baseline Profile, Main Profile, High Profile |
|
H.265 Type |
Main Profile |
|
Bit Rate Control |
CBR, VBR |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
Audio |
|
|
Audio Type |
Mono sound |
|
Audio Sampling Rate |
8 kHz/16 kHz |
|
Environment Noise Filtering |
Yes |
|
Audio Compression |
G.711/AAC-LC |
|
Audio Bit Rate |
64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
|
Network |
|
|
Security |
Password protection, complicated password, HTTPS encryption, watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
|
Simultaneous Live View |
Up to 6 channels |
|
API |
Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK, ISUP |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP, SNMP |
|
User/Host |
Up to 32 users 3 user levels: administrator, operator, and user |
|
Client |
iVMS-4200, Hik-Connect |
|
Web Browser |
Local service: IE11, Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|
Mobile Communication |
|
|
Standard |
LTE-FDD |
|
Frequency |
LTE-FDD: B1/3/5/7/8/20/28 |
|
Uplink and Downlink Data Rate |
Cat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps |
|
SIM Card Type |
Nano SIM |
|
Image |
|
|
Wide Dynamic Range (WDR) |
Digital WDR |
|
SNR |
≥ 52 dB |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Image Settings |
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
|
Built-in Microphone |
Yes, 1 built-in microphone |
|
Built-in Speaker |
Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB. |
|
Reset Key |
Yes |
|
Event |
|
|
Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
|
Linkage |
Upload to memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light |
|
General |
|
|
Power |
12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection |
|
Material |
Plastic |
|
Dimension |
238.5 mm × 97.6 mm × 67.4 mm (9.39" × 3.84" × 2.65") |
|
Package Dimension |
530 mm × 524 mm × 325 mm (8.5" × 4.8" × 4.6") |
|
Weight |
Approx. 380 g (0.84 lb.) |
|
With Package Weight |
Approx. 722 g (1.59 lb.) |
|
Storage Conditions |
-30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing) |
|
Startup and Operating Conditions |
-30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing) |
|
Language |
English, Ukrainian |
|
General Function |
Heartbeat, anti-banding, mirror, password protection, password reset via email |
|
Flashing Light |
Yes, White Light |
|
Approval |
|
|
EMC |
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
|
Safety |
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
|
Environment |
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|
Protection |
IP67: IEC 60529-2013 |
Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following description to choose for your using environment.
This model has NO SPECIFIC PROTECTION.
|
Level |
Description |
|
Top-level protection |
Hikvision products at this level are equipped for use in areas where professional anti-corrosion protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and more. |
|
Moderate protection |
Hikvision products at this level are equipped for use in areas with moderate anti-corrosion demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away from coastlines, as well as areas affected by acid rain. |
|
No specific protection |
Hikvision products at this level are equipped for use in areas where no specific anti-corrosion protection is needed. |
Available Model
DS-2CD1043G2-LIDUF/4G/SL(2.8mm) DS-2CD1043G2-LIDUF/4G/SL(4mm)
